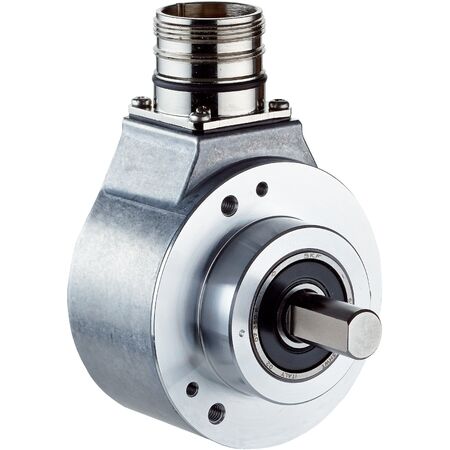

Incremental Encoder DBS60E-S4FA01500 | 1500 PPR | 6-Channel Output | IP67 Rated | by SICK
The Incremental Encoder DBS60E-S4FA01500 features 1,500 pulses per revolution and a robust 6-channel output with TTL/HTL interface options. Designed for industrial automation, robotics, and motion control applications, it offers high-speed performance up to 9,000 min⁻¹ and a durable aluminum housing with an IP67 rating, ensuring reliable operation in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-S4FA01500 | 1500 PPR | 6-Channel Output | IP67 Rated | by SICK
Brand: SICK
SKU: 1137734
Alternatively Known As: Incremental rotary encoder, rotary encoder 1500 PPR, SICK incremental encoder, DBS60 encoder
Technical Specifications
- Pulses per revolution: 1,500
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° per pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental TTL / HTL
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 4.5 to 30 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Flange type: Flange with 3 x M3 and 3 x M4
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum
- Start up torque: 1.2 Ncm at 20 °C
- Operating torque: 1.1 Ncm at 20 °C
- Permissible shaft loading: 100 N radial, 50 N axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 33 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Operating temperature range: -30 °C to +100 °C
- Storage temperature range: -40 °C to +100 °C
- Resistance to shocks: 250 g, 3 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 100mm x 60mm
- Weight: 0.3 kg
Key Features
- Incremental encoder with 1,500 pulses per revolution
- 6-channel output with TTL / HTL interface options
- Solid shaft with 10 mm diameter and flat for secure mounting
- High operating speed up to 9,000 min⁻¹
- Robust aluminum housing with IP67 rating on housing side
- Reverse polarity and short-circuit protection
- Low power consumption ≤ 0.5 W without load
- Fast initialization time under 5 ms
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and alignment.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and conveyor systems requiring accurate feedback
- Machine tools and packaging machinery
- General motion control applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption contributes to energy efficiency in automation systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DBS60E-S4FA01500 incremental encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
