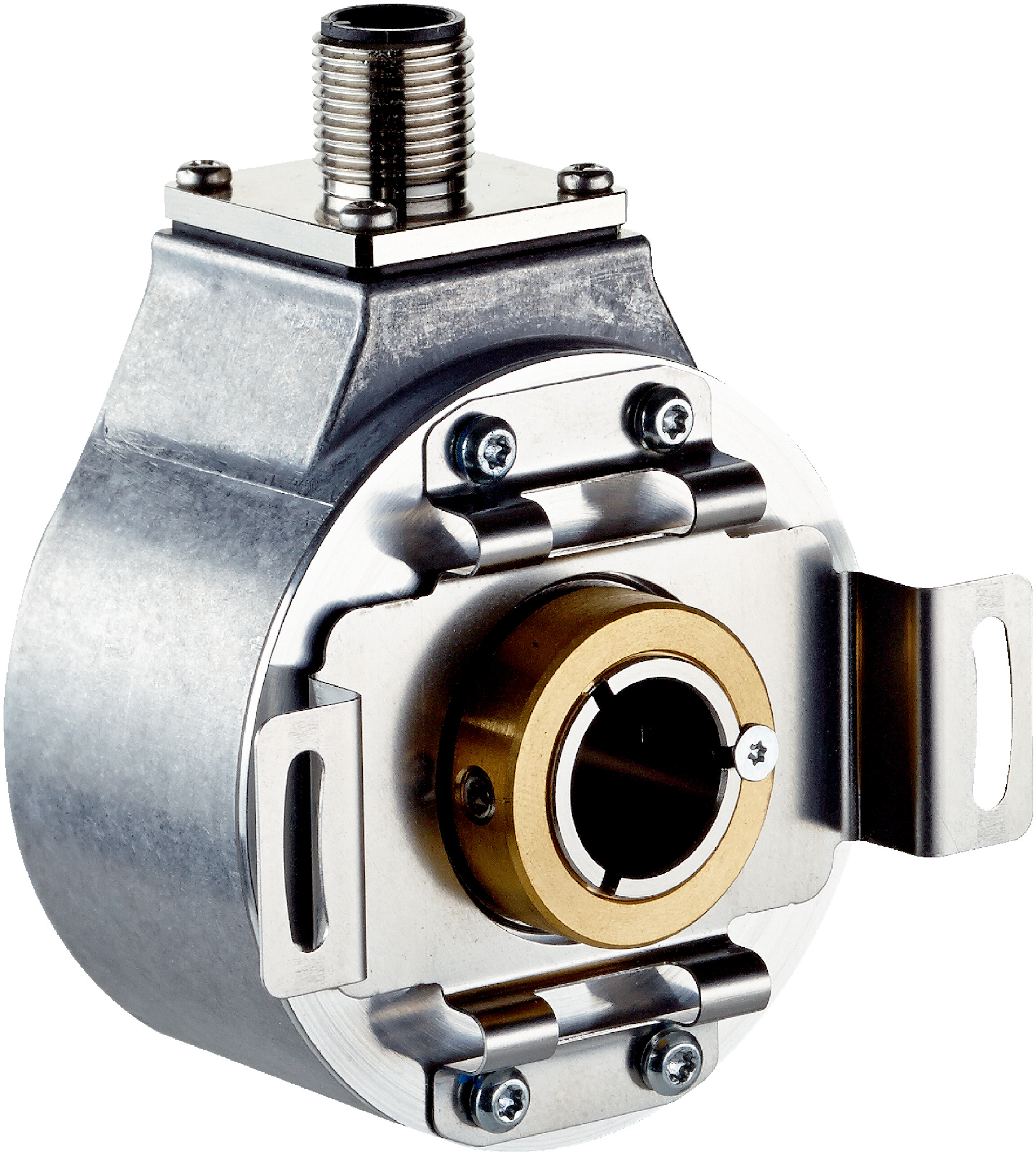

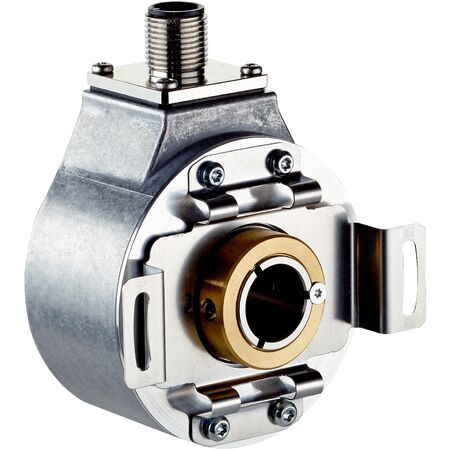

Incremental Encoder DBS60E-T4ECBS165 | 2385 Pulses/Rev | IP65 Rated | Stainless Steel Shaft | by SICK
The Incremental Encoder DBS60E-T4ECBS165 delivers high-resolution feedback with 2385 pulses per revolution, making it ideal for industrial automation and robotics. Designed for precision in motion control applications, it features a durable stainless steel shaft and an IP65 rated housing for protection against dust and water. With a wide operating temperature range of -20°C to +85°C, this encoder ensures reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-T4ECBS165 | 2385 Pulses/Rev | IP65 Rated | Stainless Steel Shaft | by SICK
Brand: SICK
SKU: 1126636
Alternatively Known As: Incremental rotary encoder, high resolution encoder, shaft encoder, industrial position sensor
Technical Specifications
- Pulses per revolution: 2385
- Measuring step: ≤ 90°, electric/pulses per revolution
- Measuring step deviation: ± 18° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 1 W (without load)
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 10 ... 27 V
- Reference signal: 1, position 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 10 mm
- Flange type: Stator coupling, 2-sided, screw hole circle 63 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum
- Start up torque: 0.5 Ncm (+20 °C)
- Operating torque: 0.4 Ncm (+20 °C)
- Permissible movement static: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible movement dynamic: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 200,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 housing and shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20 °C to +85 °C
- Storage temperature range: -40 °C to +100 °C
- Resistance to shocks: 200 g, 3 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 63mm x 40mm x 63mm
- Weight: 0.25 kg
Key Features
- 2385 pulses per revolution for high resolution
- Shaft diameter 10 mm with stainless steel shaft
- Through hollow shaft mechanical design
- 6-channel incremental HTL / Push pull communication interface
- Male connector M12, 8-pin, radial connection
- Reverse polarity and short-circuit protection
- Operating speed up to 6000 min⁻¹, max 9000 min⁻¹
- IP65 rated housing and shaft side for dust and water protection
- Operating temperature range from -20°C to +85°C
- Low power consumption ≤ 1 W without load
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and conveyor systems requiring high-resolution feedback
- Machine tools and packaging machinery
- General motion control applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable aluminum housing extends product life reducing waste
- Low power consumption contributes to energy efficiency
- Complies with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-T4ECBS165 incremental encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
