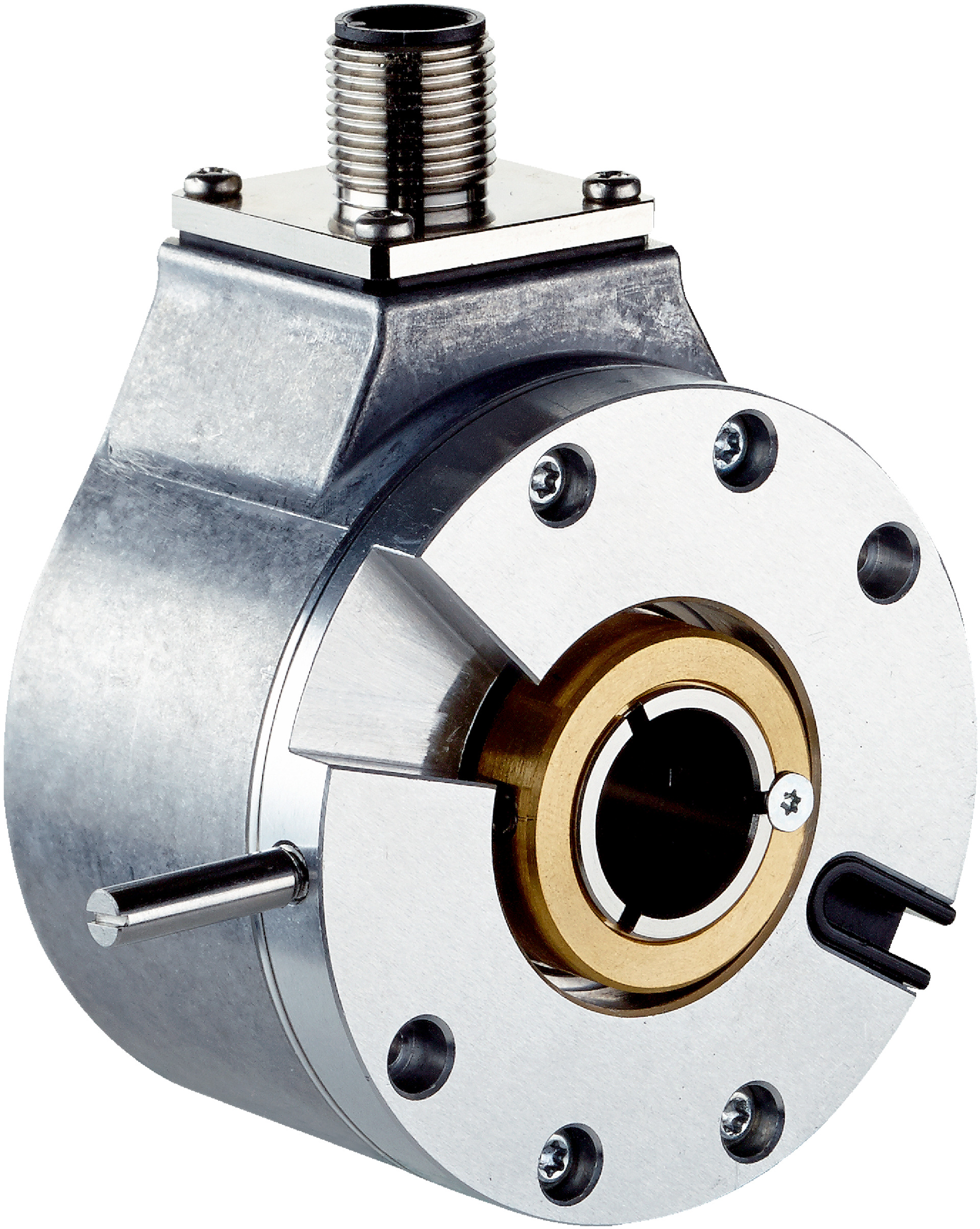

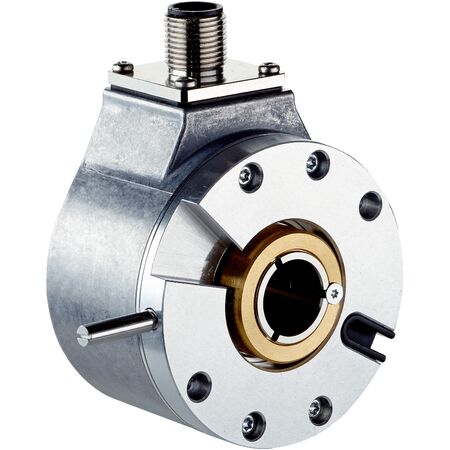

Incremental Encoder DBS60E-T4FCC1024 | 1024 PPR | IP65 Protection | High Speed up to 9000 RPM | by SICK
The Incremental Encoder DBS60E-T4FCC1024 offers high precision with 1,024 pulses per revolution, making it ideal for industrial automation and robotics. Built with a robust aluminum housing and IP65 protection, it ensures reliable performance in demanding environments. With a high operating speed of up to 9,000 min⁻¹ and low power consumption, this encoder is perfect for applications requiring accurate feedback and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-T4FCC1024 | 1024 PPR | IP65 Protection | High Speed up to 9000 RPM | by SICK
Brand: SICK
SKU: 1111610
Alternatively Known As: Incremental rotary encoder, rotary encoder 1024 PPR, SICK incremental encoder, DBS60 encoder
Technical Specifications
- Pulses per revolution: 1,024
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° per pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental TTL / HTL
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 4.5 to 30 V
- Reference signal: 1 at 90°, logically gated with A and B
- Reverse polarity and short-circuit protection included
- Mechanical design: Through hollow shaft, 10 mm diameter
- Flange type: Axial and radial register pin mounting
- Housing material: Aluminum
- Operating torque: 0.4 Ncm at 20°C
- Operating speed: 6,000 min⁻¹ nominal, max 9,000 min⁻¹
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Operating temperature range: -30°C to +100°C
- Enclosure rating: IP65 (housing and shaft side)
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- High resolution with 1,024 pulses per revolution
- Robust aluminum housing with IP65 protection on housing and shaft sides
- Through hollow shaft design with 10 mm stainless steel shaft
- Supports TTL / HTL incremental communication interface
- Short-circuit and reverse polarity protection
- High operating speed up to 9,000 min⁻¹
- Low power consumption ≤ 0.5 W without load
- EMC compliant according to EN 61000-6-2 and EN 61000-6-3
- Long bearing lifetime of 3.6 x 10⁹ revolutions
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and conveyor systems requiring accurate feedback
- Machine tools and packaging machinery
- Safety-related applications requiring reliable encoder feedback
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage in industrial systems
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-T4FCC1024 incremental encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
