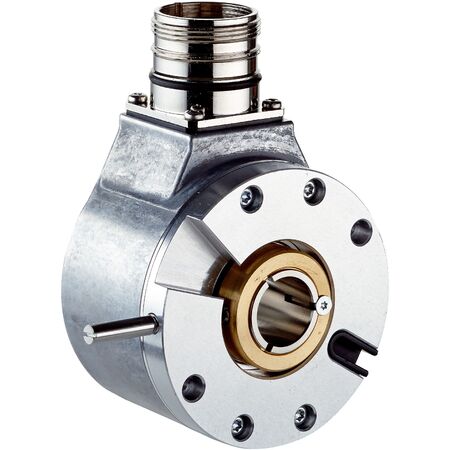

Incremental Encoder DBS60E-T5CAC1024 | 1024 Pulses/Rev | IP65 Rated | Robust Aluminum Housing | by SICK
The Incremental Encoder DBS60E-T5CAC1024 offers high precision with 1,024 pulses per revolution, making it ideal for industrial automation and robotics applications. Its robust aluminum housing and IP65 rating ensure durability and protection against dust and water, while the TTL/RS-422 communication interface provides reliable performance in motion control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-T5CAC1024 | 1024 Pulses/Rev | IP65 Rated | Robust Aluminum Housing | by SICK
Brand: SICK
SKU: 1108371
Alternatively Known As: Incremental rotary encoder, SICK DBS60 encoder, 12mm shaft encoder, industrial position sensor
Technical Specifications
- Pulses per revolution: 1,024
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° per pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 10 to 30 V
- Reference signal: 1, positioned at 90° electric, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 12 mm front clamp
- Flange type: Axial and radial register pin mounting for 4 mm register pin
- Shaft material: Stainless steel with plastic shaft
- Flange material: Aluminum
- Housing material: Aluminum
- Start up torque: ~0.5 Ncm at 20°C
- Operating torque: 0.4 Ncm at 20°C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 200,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (housing and shaft side)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -30°C to +100°C (max 3,000 pulses per revolution)
- Storage temperature range: -40°C to +100°C
- Shock resistance: 200 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- High resolution with 1,024 pulses per revolution
- Through hollow shaft design with 12 mm diameter
- Robust aluminum housing and flange
- IP65 rated enclosure for dust and water protection
- TTL / RS-422 incremental communication interface
- 6-channel output with reference signal logically gated
- Reverse polarity and short-circuit protection
- Operating temperature range from -30°C to +100°C
- High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
- Low start-up torque of approximately 0.5 Ncm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and alignment.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor and material handling systems
- Machine tool positioning and feedback
- Safety-related monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Low power consumption of ≤ 0.5 W reduces energy usage
- Durable design extends product life and reduces waste
- Compliance with RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-T5CAC1024 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
