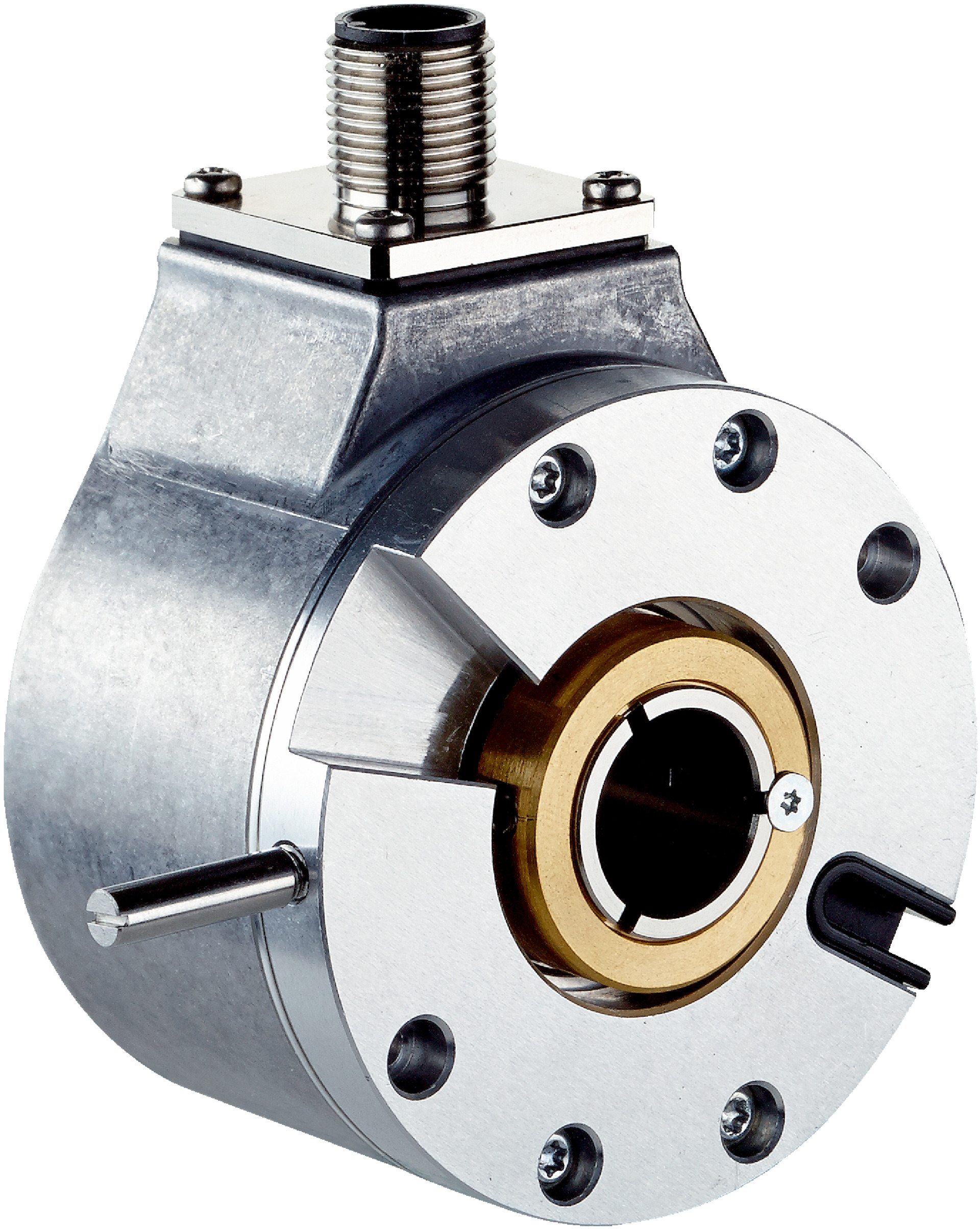

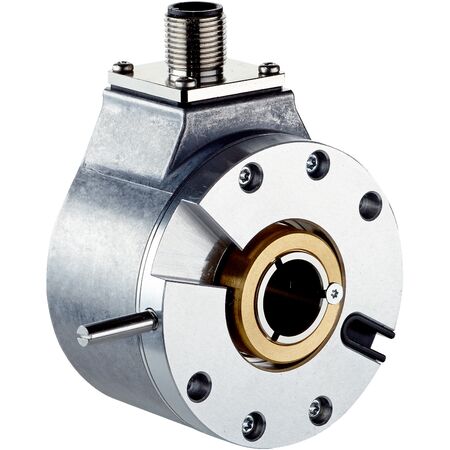

Incremental Encoder DBS60E-T5CCC1024 | 1024 Pulses/Rev | TTL/RS-422 Interface | IP65 Rated | by SICK
The Incremental Encoder DBS60E-T5CCC1024 offers 1024 pulses per revolution and a TTL/RS-422 communication interface with 6 signal channels. Designed for industrial automation, it excels in precise position and speed measurement, making it ideal for robotics and conveyor systems. With a robust aluminum housing and IP65 protection, this encoder ensures reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-T5CCC1024 | 1024 Pulses/Rev | TTL/RS-422 Interface | IP65 Rated | by SICK
Brand: SICK
SKU: 1138416
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder, pulse encoder
Technical Specifications
- Pulses per revolution: 1024
- Measuring step: ≤ 90°, electric/pulses per revolution
- Measuring step deviation: ± 18° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 10 ... 30 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 12 mm front clamp
- Flange type: Axial and radial register pin mounting for 4 mm register pin
- Shaft material: Stainless steel with plastic shaft
- Flange material: Aluminum
- Housing material: Aluminum
- Start up torque: 0.5 Ncm (+20 °C)
- Operating torque: 0.4 Ncm (+20 °C)
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 200,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 housing and shaft side (IEC 60529)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: –30 °C to +100 °C
- Storage temperature range: –40 °C to +100 °C
- Resistance to shocks: 200 g, 3 ms (EN 60068-2-27)
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Incremental encoder with 1024 pulses per revolution
- TTL / RS-422 communication interface with 6 signal channels
- Through hollow shaft mechanical design with 12 mm shaft diameter
- High operating speed up to 9000 min⁻¹
- Robust aluminum housing with IP65 protection rating
- Reverse polarity and short-circuit protection
- Low power consumption ≤ 0.5 W without load
- High bearing lifetime of 3.6 x 10⁹ revolutions
- Operating temperature range from –30 °C to +100 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and alignment.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and conveyor systems requiring accurate feedback
- Machine tools and packaging machinery
- General motion control applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage in industrial applications
- Durable design extends product life, reducing waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-T5CCC1024 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
