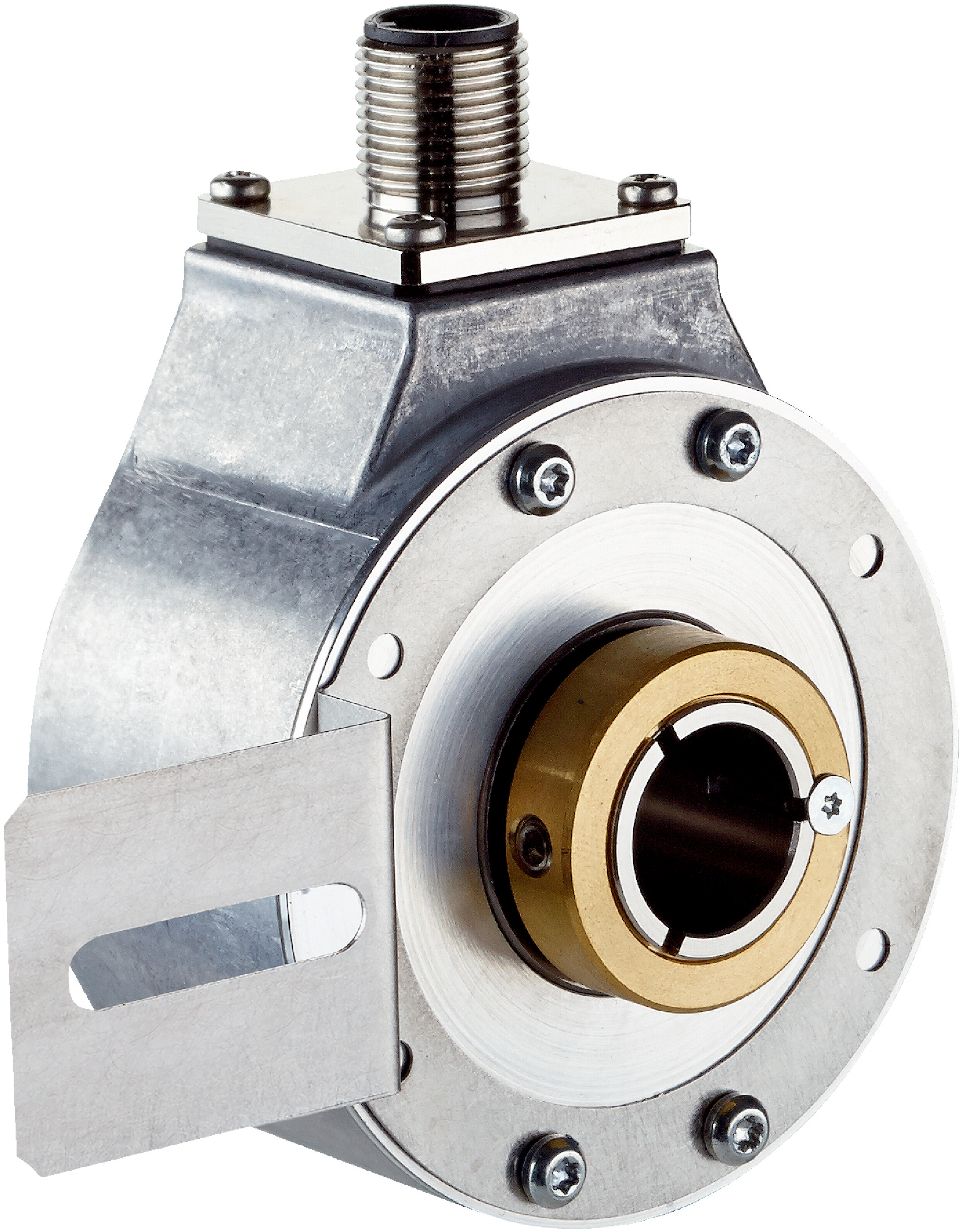

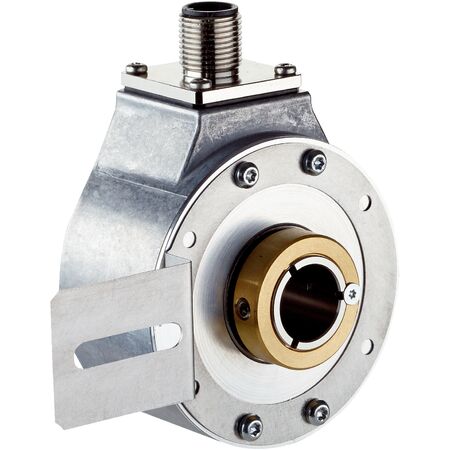

Incremental Encoder DBS60E-T5FCD1024 | 1024 Pulses/Rev | IP65 Rated | Robust Aluminum Housing | by SICK
The Incremental Encoder DBS60E-T5FCD1024 offers high precision with 1,024 pulses per revolution, making it ideal for industrial automation and robotics. Its robust aluminum housing ensures durability, while the IP65 rating provides protection against dust and water. With a fast initialization time of under 5 ms, this encoder is perfect for applications requiring reliable position and speed measurement.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-T5FCD1024 | 1024 Pulses/Rev | IP65 Rated | Robust Aluminum Housing | by SICK
Brand: SICK
SKU: 1087630
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder
Technical Specifications
- Pulses per revolution: 1,024
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° per pulses per revolution
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental TTL / HTL
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Male M12, 8-pin radial connector
- Supply voltage: 4.5 to 30 V
- Reference signal: 1 at 90°, logically gated with A and B
- Reverse polarity and short-circuit protection included
- Mechanical design: Through hollow shaft with 12 mm diameter
- Flange: 1-sided stator coupling with slot and screw hole circle radius 31.5–48.5 mm
- Shaft material: Stainless steel with plastic shaft
- Housing and flange material: Aluminum
- Start up torque: > 0.5 Ncm at 20°C
- Operating torque: 0.4 Ncm at 20°C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 200,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (housing and shaft side)
- Operating temperature range: -30°C to +100°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 200 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- High resolution with 1,024 pulses per revolution
- Through hollow shaft design with 12 mm diameter
- Robust aluminum housing and flange for durability
- IP65 rated enclosure for protection against dust and water
- Short-circuit and reverse polarity protection
- Fast initialization time under 5 ms
- Operating temperature range from -30°C to +100°C
- High mechanical resistance to shocks (200 g) and vibration (30 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and alignment.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and conveyor systems requiring accurate motion control
- Machine tools and packaging machinery
- Safety-related applications requiring reliable feedback
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of ≤ 0.5 W reduces energy usage
- Durable materials and long bearing lifetime minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DBS60E-T5FCD1024 incremental encoder is available for immediate purchase, ideal for industrial automation and safety-related applications requiring precise rotary position feedback.
