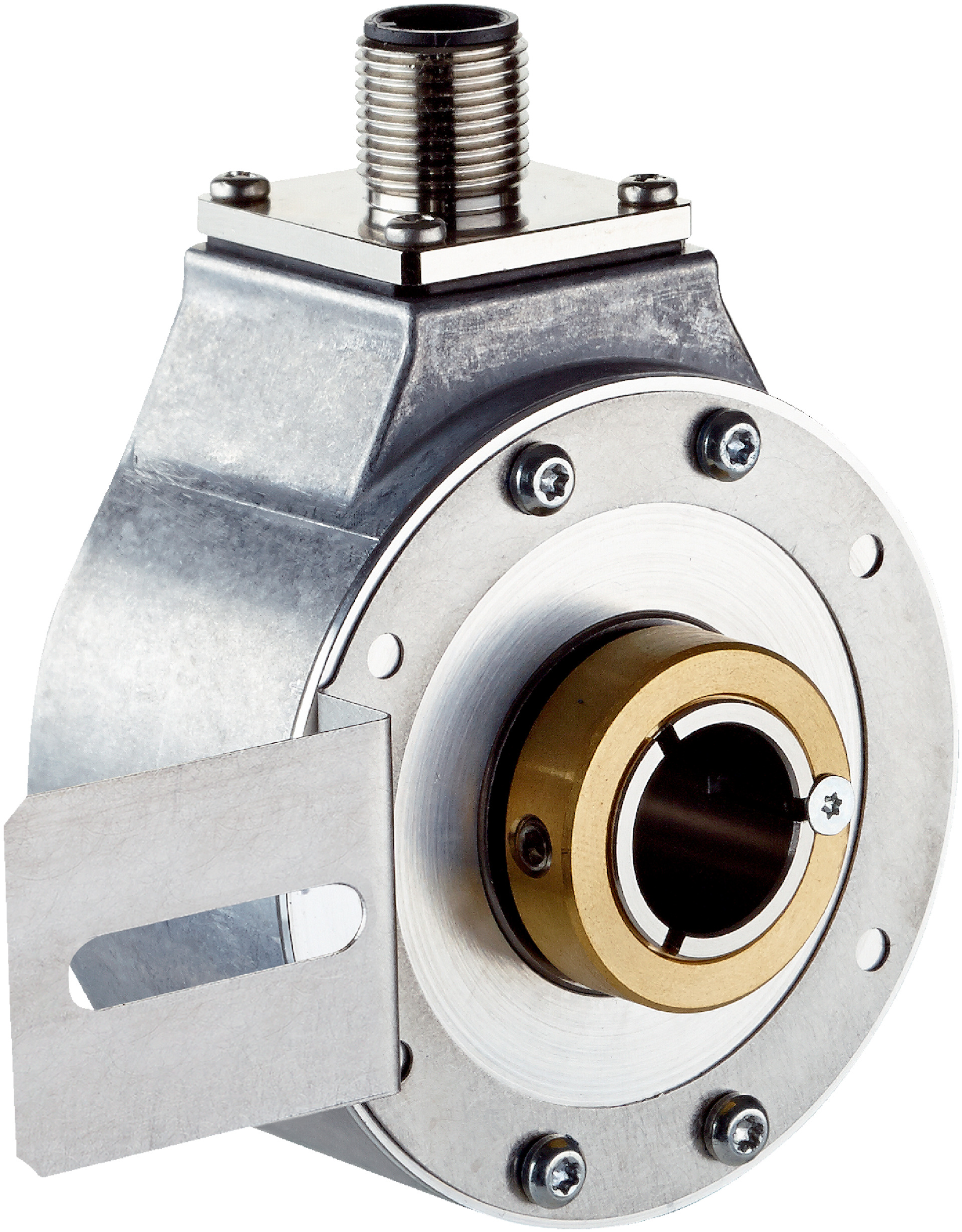

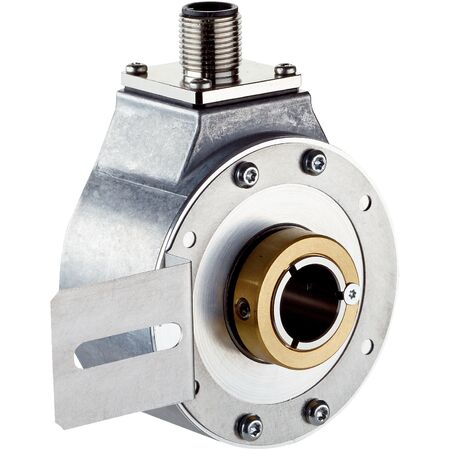

Incremental Encoder DBS60E-T7FCD1024 | 1024 PPR | IP65 Rated | Hollow Shaft Design | by SICK
The Incremental Encoder DBS60E-T7FCD1024 features a high resolution of 1,024 pulses per revolution, making it ideal for precise position and speed measurement in industrial automation. With a robust aluminum housing and an IP65 rated enclosure, it ensures durability and protection against dust and water, perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-T7FCD1024 | 1024 PPR | IP65 Rated | Hollow Shaft Design | by SICK
Brand: SICK
SKU: 1144540
Alternatively Known As: Incremental rotary encoder, rotary encoder 1024 PPR, hollow shaft encoder, SICK incremental encoder
Technical Specifications
- Pulses per revolution: 1,024
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° per pulses per revolution
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental TTL / HTL
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 4.5 to 30 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity and short-circuit protection included
- Mechanical design: Through hollow shaft
- Shaft diameter: 14 mm
- Flange type: 1-sided stator coupling with slot
- Housing and flange material: Aluminum
- Shaft material: Stainless steel with plastic shaft
- Start up torque: 0.5 Ncm at 20°C
- Operating torque: 0.4 Ncm at 20°C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 200,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (housing and shaft side)
- Operating temperature range: -30°C to +100°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 200 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- High resolution with 1,024 pulses per revolution
- Through hollow shaft design with 14 mm diameter
- Robust aluminum housing and flange
- IP65 rated enclosure for dust and water protection
- Operating temperature range from -30°C to +100°C
- Short-circuit and reverse polarity protection
- Fast initialization time under 5 ms
- High maximum operating speed up to 9,000 min⁻¹
- 6-channel incremental output with TTL/HTL interface
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder wiring and mounting to ensure proper alignment and electrical connections.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and conveyor systems requiring accurate feedback
- Machine tools and packaging machinery
- General motion control applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of ≤ 0.5 W enhances energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DBS60E-T7FCD1024 Incremental Encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
