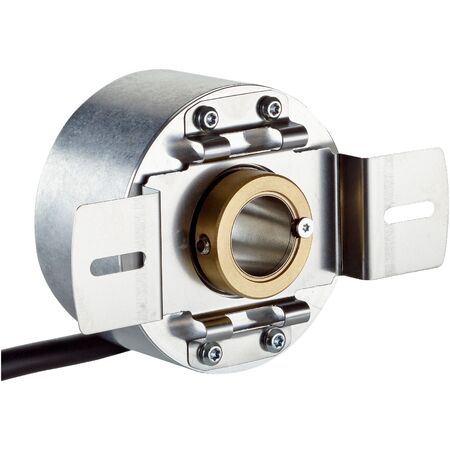

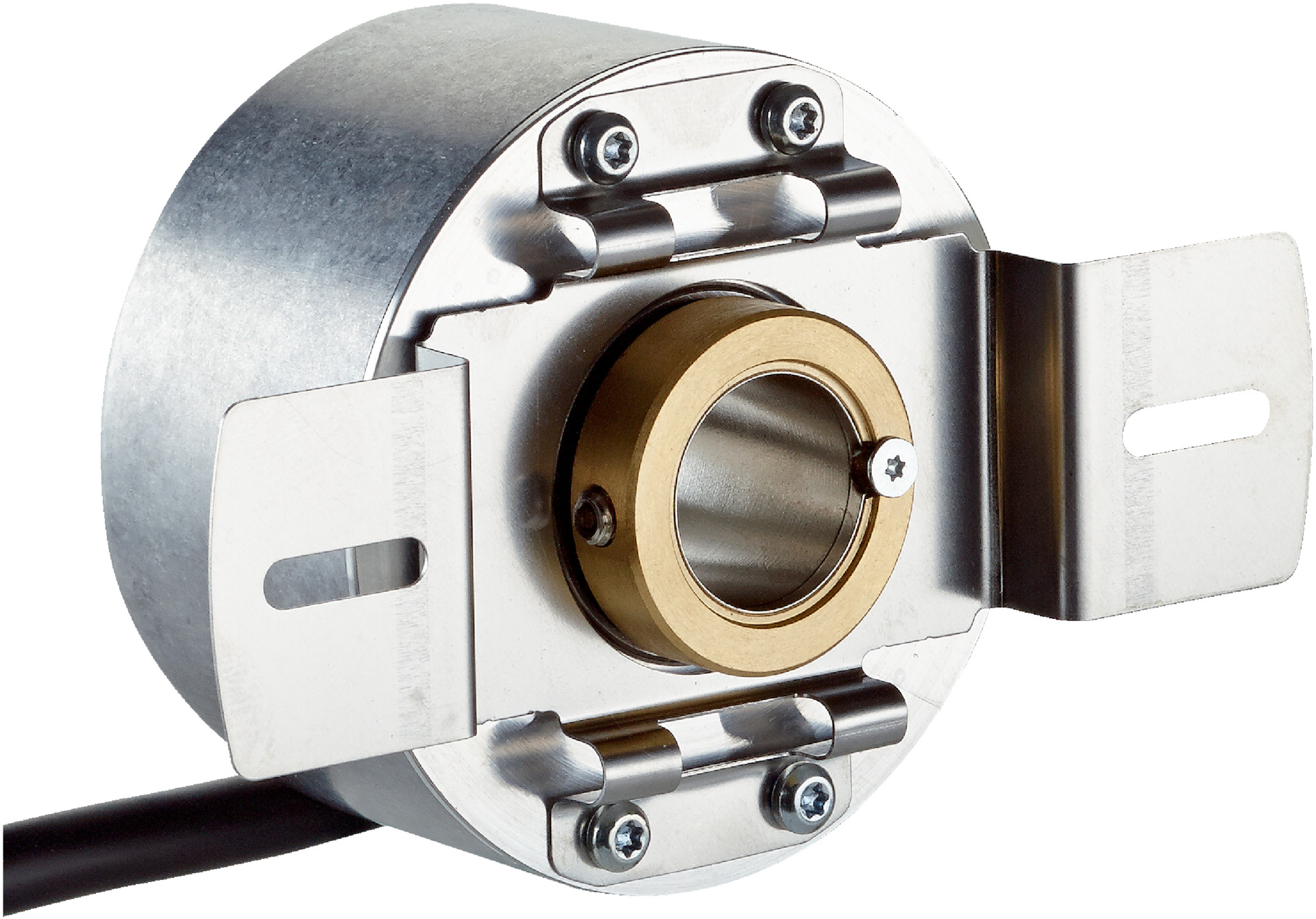

Incremental Encoder DBS60E-TBEK02000 | 2000 Pulses/Rev | IP65 Rated | High Speed up to 9000 min⁻¹ | by SICK

BRAND: SICK
SKU: 1072395
$704.70 List price: $885.70
+ −
30 Days Return Electricians Unlock Trade Access
The Incremental Encoder DBS60E-TBEK02000 offers high precision with 2000 pulses per revolution, making it ideal for industrial automation and motion control applications. Designed for robust performance, it features a through hollow shaft design, IP65 rated enclosure for dust and water protection, and a fast initialization time of under 5 ms. Perfect for robotics, conveyor systems, and machine tools, this encoder ensures reliable feedback and accurate position measurement.

Product Name/Title: Incremental Encoder DBS60E-TBEK02000 | 2000 Pulses/Rev | IP65 Rated | High Speed up to 9000 min⁻¹ | by SICK

Brand: SICK

SKU: 1072395

Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder, SICK encoder DBS60E

Technical Specifications
  • Pulses per revolution: 2,000
  • Measuring step: ≤ 90°, electric/pulses per revolution
  • Measuring step deviation: ± 18° / pulses per revolution
  • Duty cycle: ≤ 0.5 ± 5 %
  • Communication interface: Incremental HTL / Push pull
  • Number of signal channels: 6-channel
  • Initialization time: < 5 ms
  • Output frequency: > 300 kHz
  • Load current: ≤ 30 mA per channel
  • Power consumption: ≤ 1 W (without load)
  • Connection type: Cable, 8-wire, universal, 1.5 m
  • Supply voltage: 10 to 27 V
  • Reference signal: 1, 90° electric, logically gated with A and B
  • Reverse polarity protection: Yes
  • Short-circuit protection of outputs: Yes
  • Mechanical design: Through hollow shaft
  • Shaft diameter: 8 mm front clamp
  • Flange type: 2-sided stator coupling, slot, screw hole circle 63–83 mm
  • Shaft material: Stainless steel
  • Flange material: Aluminum
  • Housing material: Aluminum
  • Cable material: PVC
  • Start up torque: 0.5 Ncm at 20 °C
  • Operating torque: 0.4 Ncm at 20 °C
  • Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
  • Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
  • Operating speed: 6,000 min⁻¹
  • Maximum operating speed: 9,000 min⁻¹
  • Moment of inertia of rotor: 50 gcm²
  • Bearing lifetime: 3.6 x 10⁹ revolutions
  • Angular acceleration: ≤ 500,000 rad/s²
  • EMC: EN 61000-6-2 and EN 61000-6-3
  • Enclosure rating: IP65 housing and shaft side
  • Permissible relative humidity: 90% (no condensation)
  • Operating temperature range: –20 °C to +85 °C
  • Storage temperature range: –40 °C to +100 °C
  • Shock resistance: 250 g, 3 ms
  • Vibration resistance: 30 g, 10 Hz to 2,000 Hz
  • Dimensions (H x L x W): 63mm x 83mm x 63mm
  • Weight: 0.25 kg
Key Features
  • High resolution with 2,000 pulses per revolution
  • Through hollow shaft mechanical design with 8 mm shaft diameter
  • Robust aluminum housing and flange with stainless steel shaft
  • IP65 rated enclosure for protection against dust and water
  • Short-circuit and reverse polarity protection
  • High operating speed up to 9,000 min⁻¹
  • Low operating torque of 0.4 Ncm
  • 6-channel incremental HTL / Push pull communication interface
  • Fast initialization time under 5 ms
  • Wide operating temperature range from –20 °C to +85 °C
  • Complies with EMC standards EN 61000-6-2 and EN 61000-6-3
Professional Installation Requirements
  • Installation should be performed by a qualified technician or electrician familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
  • Industrial automation for precise position and speed measurement
  • Robotics and conveyor systems requiring accurate feedback
  • Machine tools and packaging machinery
  • General motion control applications
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Durable design reduces replacement frequency and electronic waste
  • Low power consumption of ≤ 1 W minimizes energy usage
  • Robust protection against environmental factors extends product life
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.

Available Now

The SICK DBS60E-TBEK02000 incremental encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
