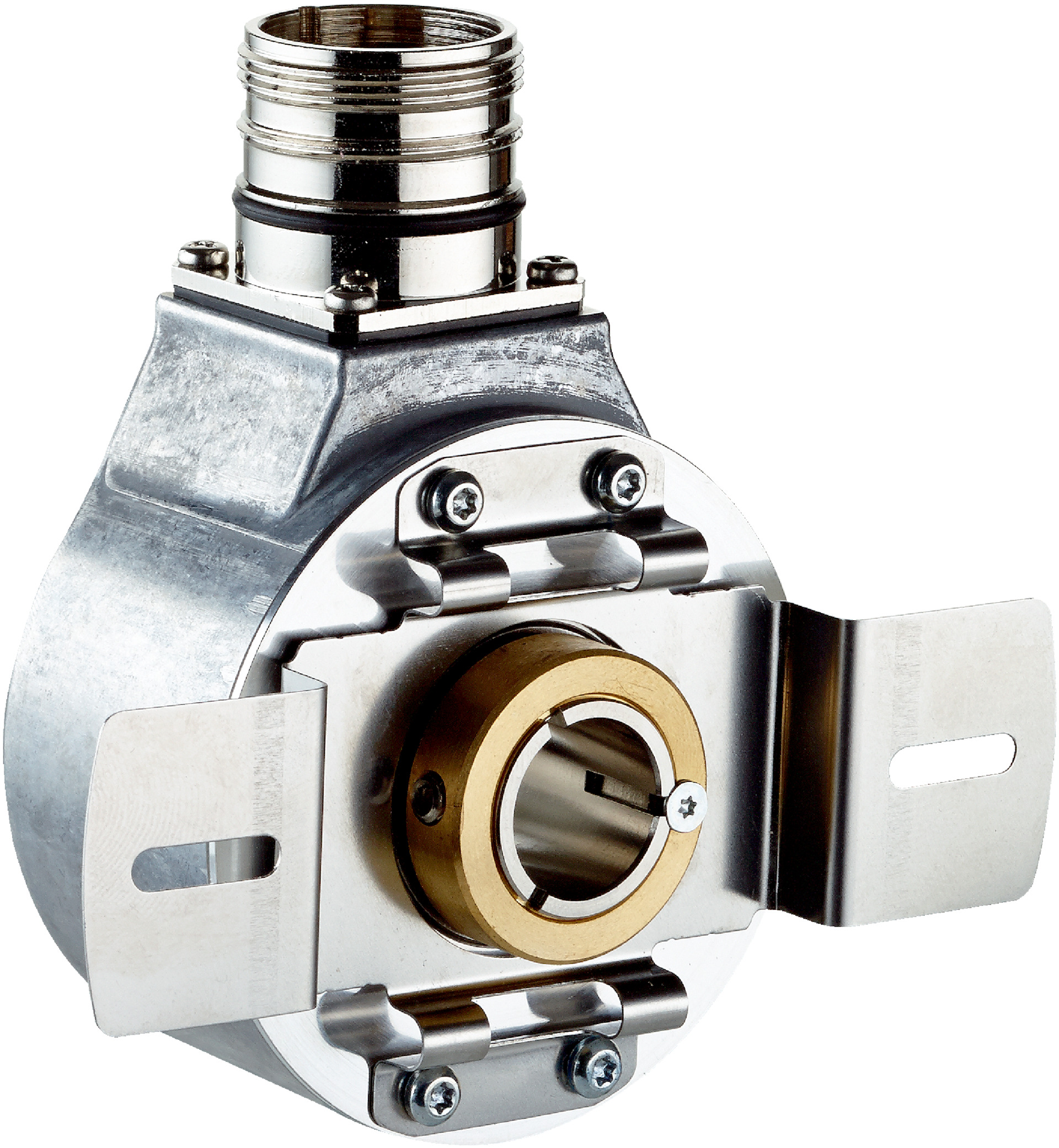

Incremental Encoder DBS60E-TDEA00500 | 500 PPR | 6-Channel HTL | IP65 Protection | by SICK
The Incremental Encoder DBS60E-TDEA00500 features 500 pulses per revolution and a robust 6-channel HTL communication interface, making it ideal for industrial automation and precise motion control applications. With a high operating speed of up to 9,000 min⁻¹ and an IP65-rated aluminum housing, this encoder ensures reliable performance in demanding environments, while its low power consumption and long bearing lifetime enhance efficiency and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-TDEA00500 | 500 PPR | 6-Channel HTL | IP65 Protection | by SICK
Brand: SICK
SKU: 1075447
Alternatively Known As: Incremental rotary encoder, SICK DBS60 encoder, 500 PPR encoder, industrial position sensor
Technical Specifications
- Pulses per revolution: 500
- Measuring step: ≤ 90°, electric/pulses per revolution
- Measuring step deviation: ± 18° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 1 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 10 to 27 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 10 mm (front clamp)
- Flange type: 2-sided stator coupling, slot, screw hole circle 63–83 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum
- Start up torque: > 0.5 Ncm at 20 °C
- Operating torque: 0.4 Ncm at 20 °C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (housing and shaft side)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: –20 °C to +85 °C
- Storage temperature range: –40 °C to +100 °C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 63mm x 83mm x 63mm
- Weight: 0.25 kg
Key Features
- Incremental encoder with 500 pulses per revolution
- 6-channel HTL / Push pull communication interface
- Through hollow shaft mechanical design with 10 mm shaft diameter
- High operating speed up to 9,000 min⁻¹
- Robust aluminum housing and flange with IP65 protection
- Reverse polarity and short-circuit protection
- Low power consumption ≤ 1 W without load
- High bearing lifetime of 3.6 x 10⁹ revolutions
- Operating temperature range from –20 °C to +85 °C
- EMC compliant according to EN 61000-6-2 and EN 61000-6-3
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder wiring and mounting to ensure proper operation and safety.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and conveyor systems requiring accurate feedback
- Machine tools and packaging machinery
- General motion control applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-TDEA00500 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
