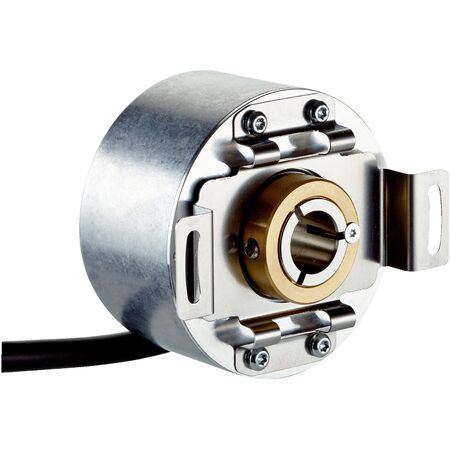

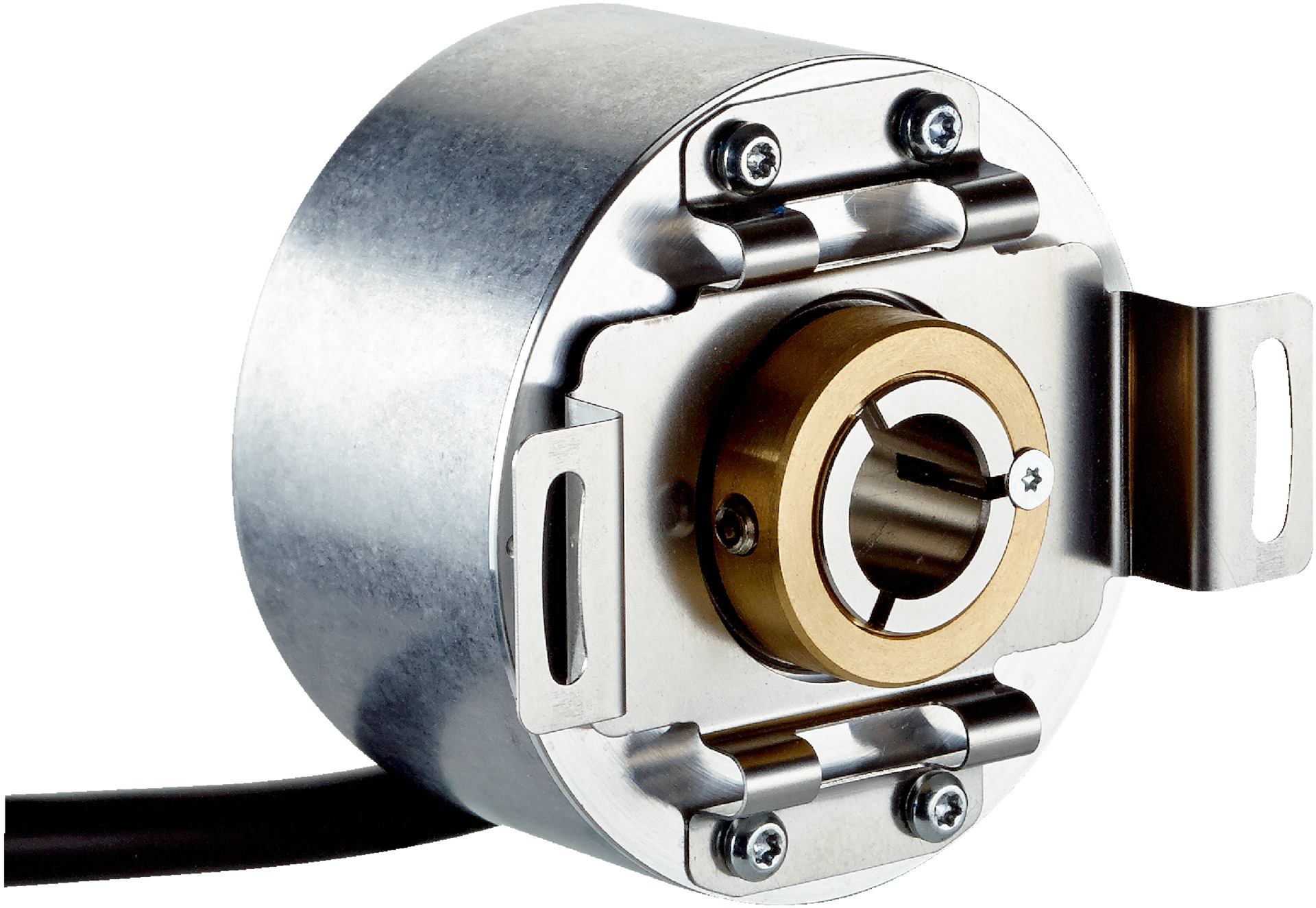

Incremental Encoder DBS60E-TDEKB1000 | 1000 Pulses/Rev | IP65 Rated | High Speed 9000 min⁻¹ | by SICK
The Incremental Encoder DBS60E-TDEKB1000 features 1,000 pulses per revolution and a robust through hollow shaft design with a 10 mm diameter. Ideal for industrial automation and control systems, it offers high-speed operation up to 9,000 min⁻¹ and an IP65 rated enclosure for dust and water protection. With low power consumption and reverse polarity protection, this encoder ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-TDEKB1000 | 1000 Pulses/Rev | IP65 Rated | High Speed 9000 min⁻¹ | by SICK
Brand: SICK
SKU: 1078486
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder
Technical Specifications
- Pulses per revolution: 1,000
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° per pulses per revolution
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 1 W (without load)
- Connection type: Cable, 8-wire, universal, 1.5 m
- Supply voltage: 10 to 27 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 10 mm front clamp
- Flange type: Stator coupling, 2-sided, screw hole circle 63 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum
- Cable material: PVC
- Start up torque: 0.5 Ncm at 20°C
- Operating torque: 0.4 Ncm at 20°C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (housing and shaft side)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 63mm x 100mm x 63mm
- Weight: 0.25 kg
Key Features
- Incremental encoder with 1,000 pulses per revolution
- Through hollow shaft mechanical design with 10 mm shaft diameter
- High operating speed up to 9,000 min⁻¹
- Robust aluminum housing and flange with stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- Reverse polarity and short-circuit protection
- Low power consumption ≤ 1 W without load
- 6-channel HTL / Push pull communication interface
- High reliability with MTTFD of 500 years (EN ISO 13849-1)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper alignment and connection.
Applications
- Industrial automation and control systems
- Rotational position and speed measurement
- Machine tool feedback
- Robotics and conveyor systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DBS60E-TDEKB1000 Incremental Encoder is available for immediate purchase, ideal for industrial automation and precise rotational measurement applications.
