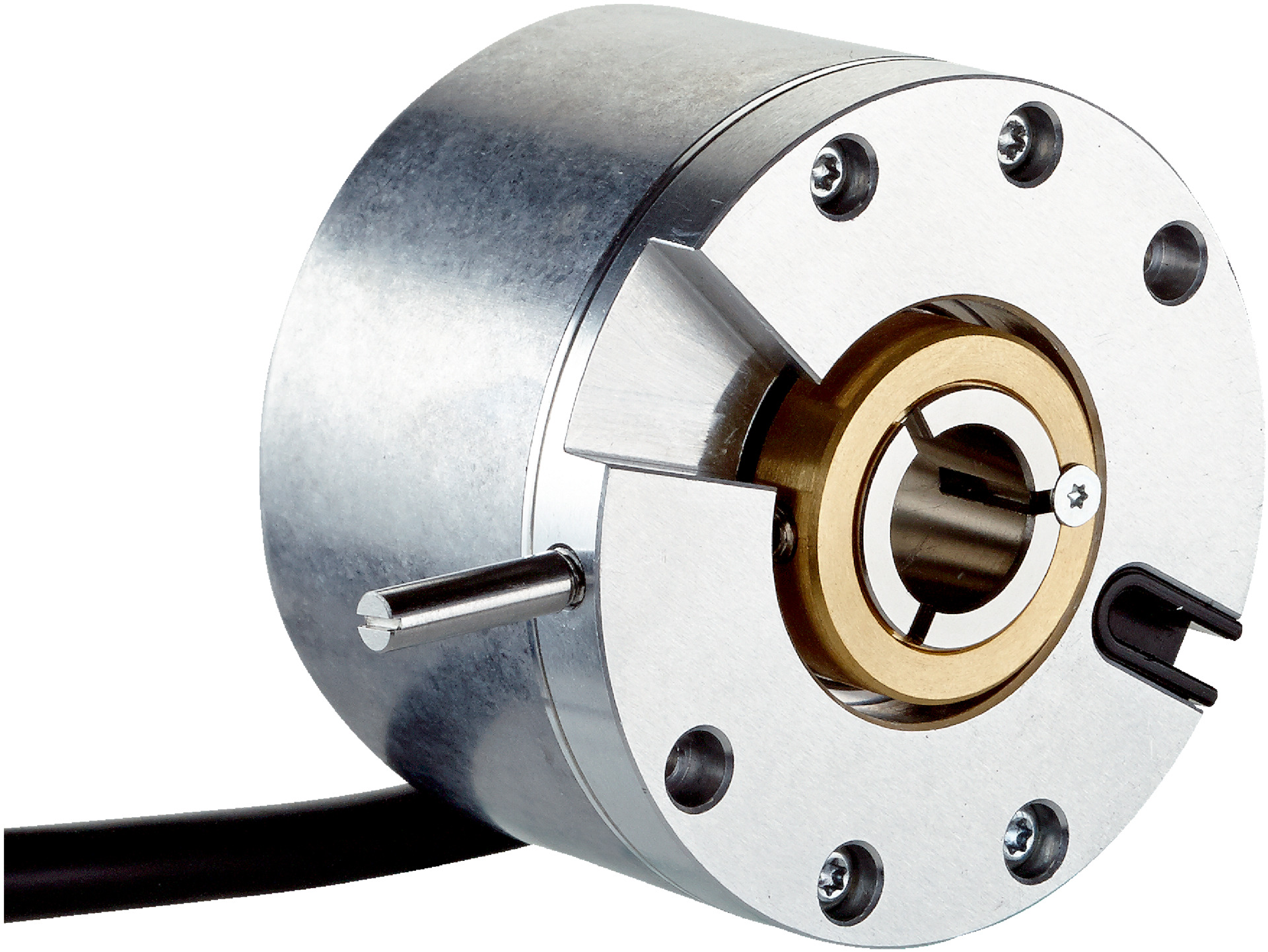

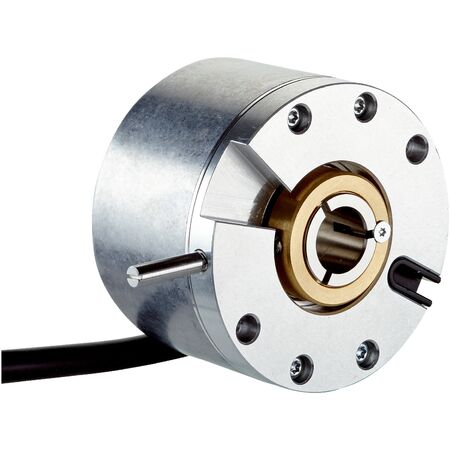

Incremental Encoder DBS60E-TEEJC1024 | 1024 Pulses/Rev | High Speed 9000 min⁻¹ | IP65 Rated | by SICK
The Incremental Encoder DBS60E-TEEJC1024 features 1024 pulses per revolution and a robust through hollow shaft design with a 12 mm diameter. With an impressive operating speed of up to 9000 min⁻¹ and an IP65 rated enclosure, this encoder is perfect for industrial automation, robotics, and motion control systems, ensuring precise position and speed measurement in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-TEEJC1024 | 1024 Pulses/Rev | High Speed 9000 min⁻¹ | IP65 Rated | by SICK
Brand: SICK
SKU: 1108449
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, pulse encoder, industrial encoder
Technical Specifications
- Pulses per revolution: 1024
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° per pulse
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 1 W (without load)
- Connection type: Cable, 8-wire, 0.5 m
- Supply voltage: 10 to 27 V
- Reference signal: 1, positioned at 90° electric
- Reverse polarity and short-circuit protection included
- Mechanical design: Through hollow shaft
- Shaft diameter: 12 mm with front clamp
- Flange type: Axial and radial register pin mounting for 4 mm pin
- Start up torque: > 0.5 Ncm at 20°C
- Operating torque: 0.4 Ncm at 20°C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6000 min⁻¹
- Maximum operating speed: 9000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (housing and shaft side)
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.25 kg
