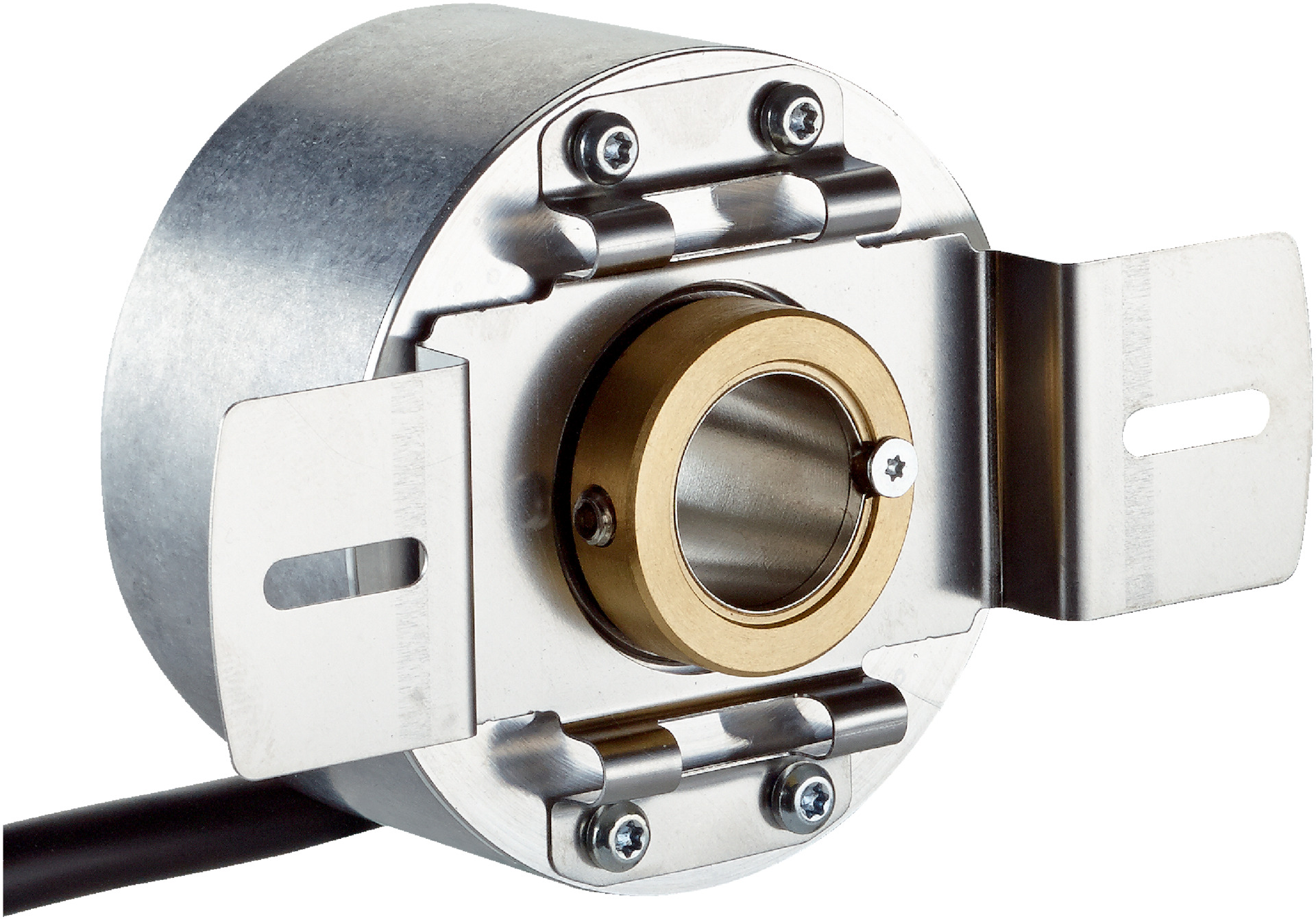

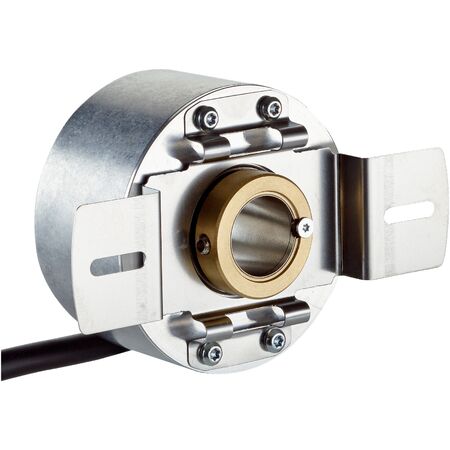

Incremental Encoder DBS60E-TGAK02048 | 2048 Pulses/Rev | IP65 Protection | High Speed Up to 9000 RPM | by SICK
The Incremental Encoder DBS60E-TGAK02048 offers high precision with 2048 pulses per revolution, making it ideal for industrial automation and motion control applications. With a robust aluminum housing and IP65 protection, this encoder ensures reliable performance in demanding environments. Its fast initialization time under 5 ms and high operating speed of up to 9000 min⁻¹ make it perfect for robotics and conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-TGAK02048 | 2048 Pulses/Rev | IP65 Protection | High Speed Up to 9000 RPM | by SICK
Brand: SICK
SKU: 1141103
Alternatively Known As: Incremental rotary encoder, incremental shaft encoder, rotary pulse encoder, position encoder
Technical Specifications
- Pulses per revolution: 2,048
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° per pulses per revolution
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Operating current: ≤ 50 mA without load
- Connection type: 8-wire cable, 1.5 m length
- Supply voltage: 4.5 to 5.5 V
- Reference signal: 1, positioned at 90° electric
- Mechanical design: Through hollow shaft
- Shaft diameter: 14 mm
- Flange type: 2-sided stator coupling, slot, screw hole circle 63–83 mm
- Materials: Stainless steel shaft, aluminum flange and housing, PVC cable
- Start-up torque: 0.5 Ncm at 20°C
- Operating torque: 0.4 Ncm at 20°C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 housing and shaft side
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 83mm x 60mm x 83mm
- Weight: 0.25 kg
Key Features
- High resolution with 2,048 pulses per revolution
- TTL / RS-422 incremental communication interface
- Robust aluminum housing with IP65 protection
- Through hollow shaft design with 14 mm stainless steel shaft
- Reverse polarity and short-circuit protection
- High operating speed up to 9,000 min⁻¹
- Low start-up torque of 0.5 Ncm
- Long bearing lifetime of 3.6 x 10⁹ revolutions
- Fast initialization time under 5 ms
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder wiring and mounting to ensure proper operation and safety.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor and material handling systems
- Machine tool feedback and control
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption electronics contribute to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-TGAK02048 incremental encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
