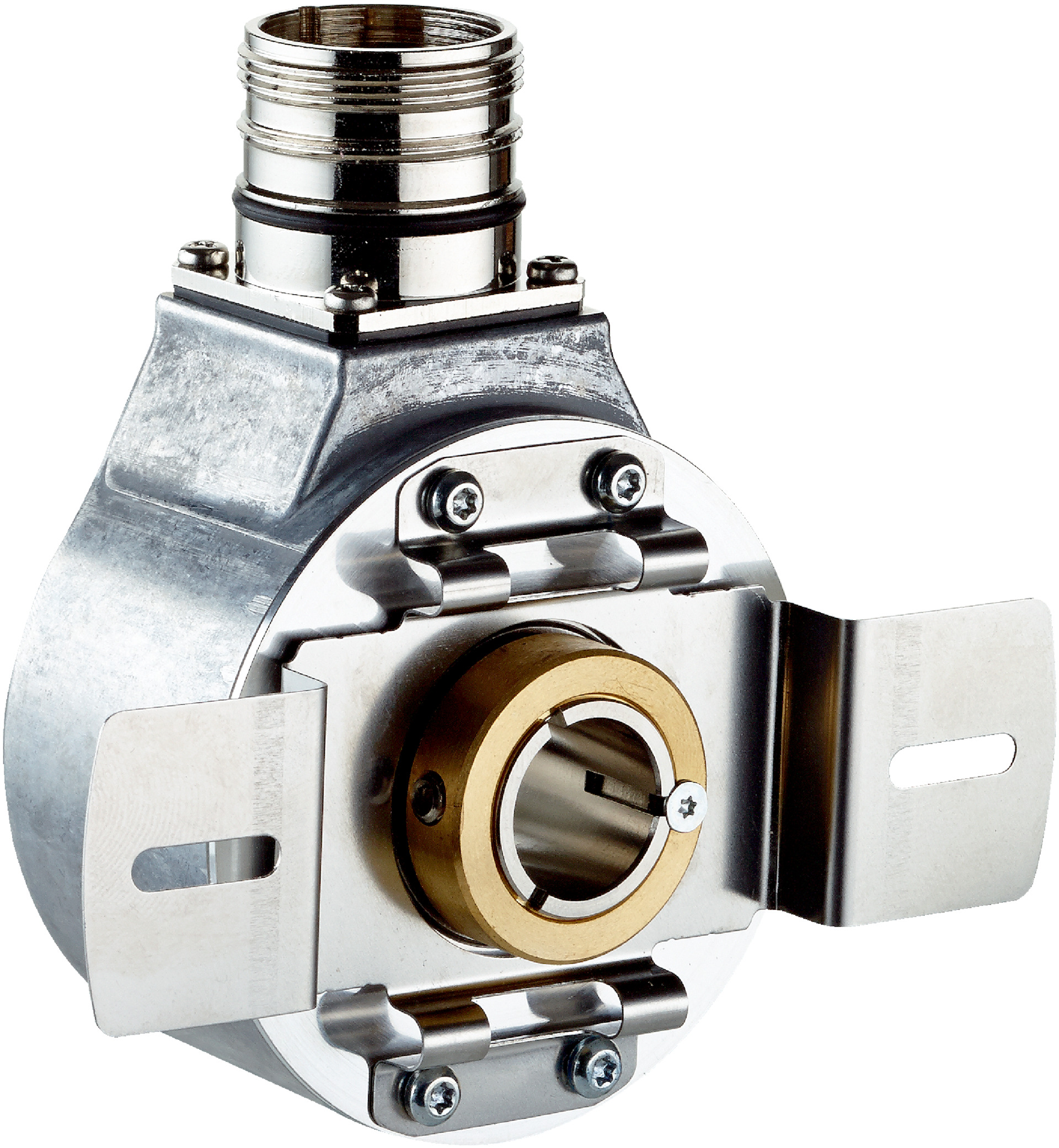

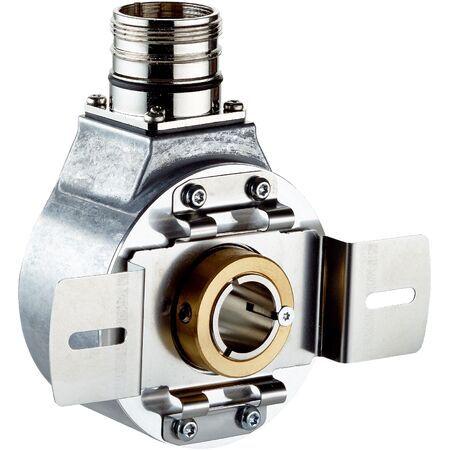

Incremental Encoder DBS60E-TGEA03600 | 3600 Pulses/Rev | IP65 Protection | Hollow Shaft Design | by SICK
The Incremental Encoder DBS60E-TGEA03600 offers high precision with 3,600 pulses per revolution, making it ideal for industrial automation and robotics applications. Its robust aluminum housing features an IP65 rating, ensuring durability in harsh environments. With a through hollow shaft design and a wide operating temperature range of -20°C to +85°C, this encoder is built for reliability and performance in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-TGEA03600 | 3600 Pulses/Rev | IP65 Protection | Hollow Shaft Design | by SICK
Brand: SICK
SKU: 1088312
Alternatively Known As: Incremental rotary encoder, rotary shaft encoder, industrial encoder, position encoder, SICK encoder DBS60E
Technical Specifications
- Pulses per revolution: 3,600
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 36° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 10%
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 1 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 10 to 27 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity and short-circuit protection included
- Mechanical design: Through hollow shaft with 14 mm diameter
- Flange type: 2-sided stator coupling, slot, screw hole circle 63–83 mm
- Materials: Stainless steel shaft, aluminum flange and housing
- Start-up torque: approx. 0.5 Ncm at 20°C
- Operating torque: 0.4 Ncm at 20°C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (housing and shaft side)
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 83mm x 60mm x 83mm
- Weight: 0.25 kg
Key Features
- High resolution with 3,600 pulses per revolution
- Through hollow shaft mechanical design with 14 mm shaft diameter
- Robust aluminum housing and flange with IP65 protection rating
- 6-channel incremental HTL / Push pull communication interface
- Short-circuit and reverse polarity protection
- Operating temperature range from -20°C to +85°C
- High mechanical durability with bearing lifetime of 3.6 x 10⁹ revolutions
- Low start-up torque of approximately 0.5 Ncm
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor and material handling systems
- Machine tool positioning and feedback
- Safety-related monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of ≤1 W enhances energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-TGEA03600 incremental encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
