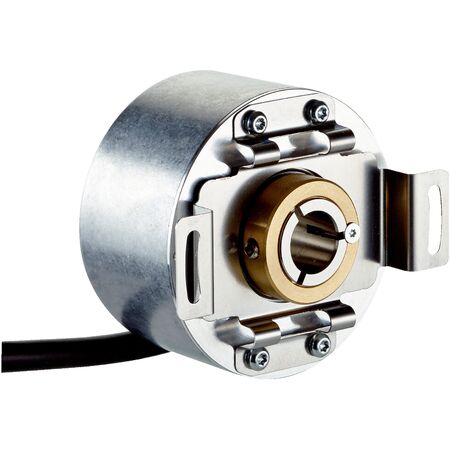

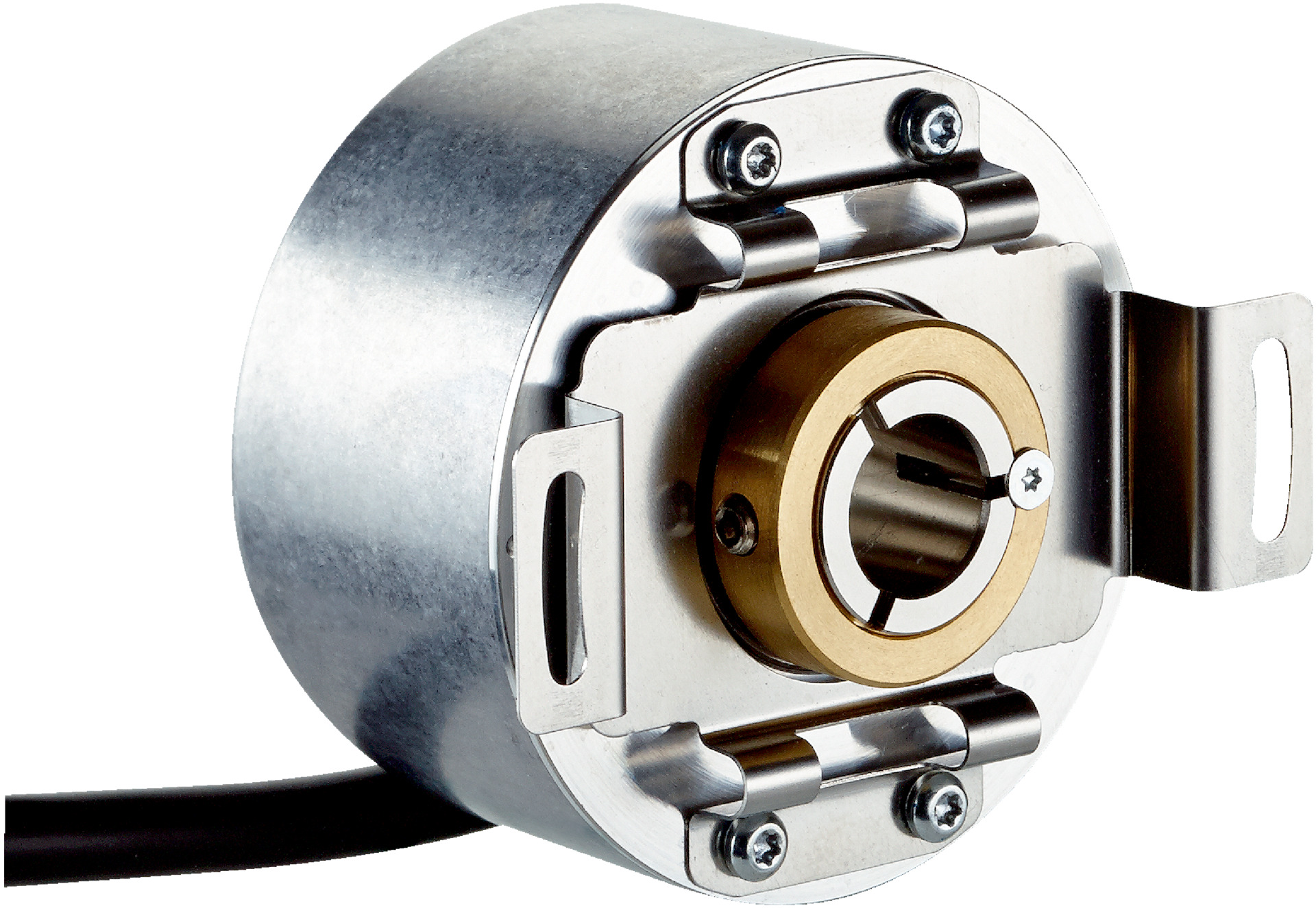

Incremental Encoder DBS60E-THCMB2048 | 2048 Pulses/Rev | IP65 Rated | Hollow Shaft Design | by SICK
The Incremental Encoder DBS60E-THCMB2048 offers high precision with 2048 pulses per revolution, making it ideal for industrial automation and robotics. Its robust design features a through hollow shaft with a 15 mm diameter, ensuring reliable performance in demanding environments. With an IP65 rating for dust and water protection, this encoder is built to withstand harsh conditions while providing accurate position and speed measurements.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-THCMB2048 | 2048 Pulses/Rev | IP65 Rated | Hollow Shaft Design | by SICK
Brand: SICK
SKU: 1104614
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder
Technical Specifications
- Pulses per revolution: 2,048
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° per pulses per revolution
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: 8-wire cable, 5 m length
- Supply voltage: 10 to 30 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity and short-circuit protection included
- Mechanical design: Through hollow shaft
- Shaft diameter: 15 mm with front clamp
- Flange type: 2-sided stator coupling, screw hole circle 63 mm
- Materials: Shaft - stainless steel, Flange and housing - aluminum, Cable - PVC
- Start up torque: 0.5 Ncm at 20°C
- Operating torque: 0.4 Ncm at 20°C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (housing and shaft side)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -30°C to +100°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 63mm x 100mm x 63mm
- Weight: 0.25 kg
Key Features
- High resolution with 2,048 pulses per revolution
- Through hollow shaft mechanical design with 15 mm shaft diameter
- Robust aluminum housing and flange with stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- TTL / RS-422 incremental communication interface with 6 signal channels
- Short-circuit and reverse polarity protection
- Operating temperature range from -30°C to +100°C
- High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
- Low power consumption of ≤ 0.5 W without load
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper alignment and connection.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor and material handling systems
- Machine tool feedback and control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption contributes to energy efficiency in automation systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-THCMB2048 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
