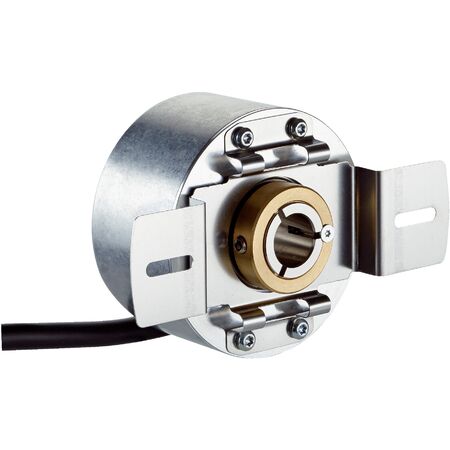

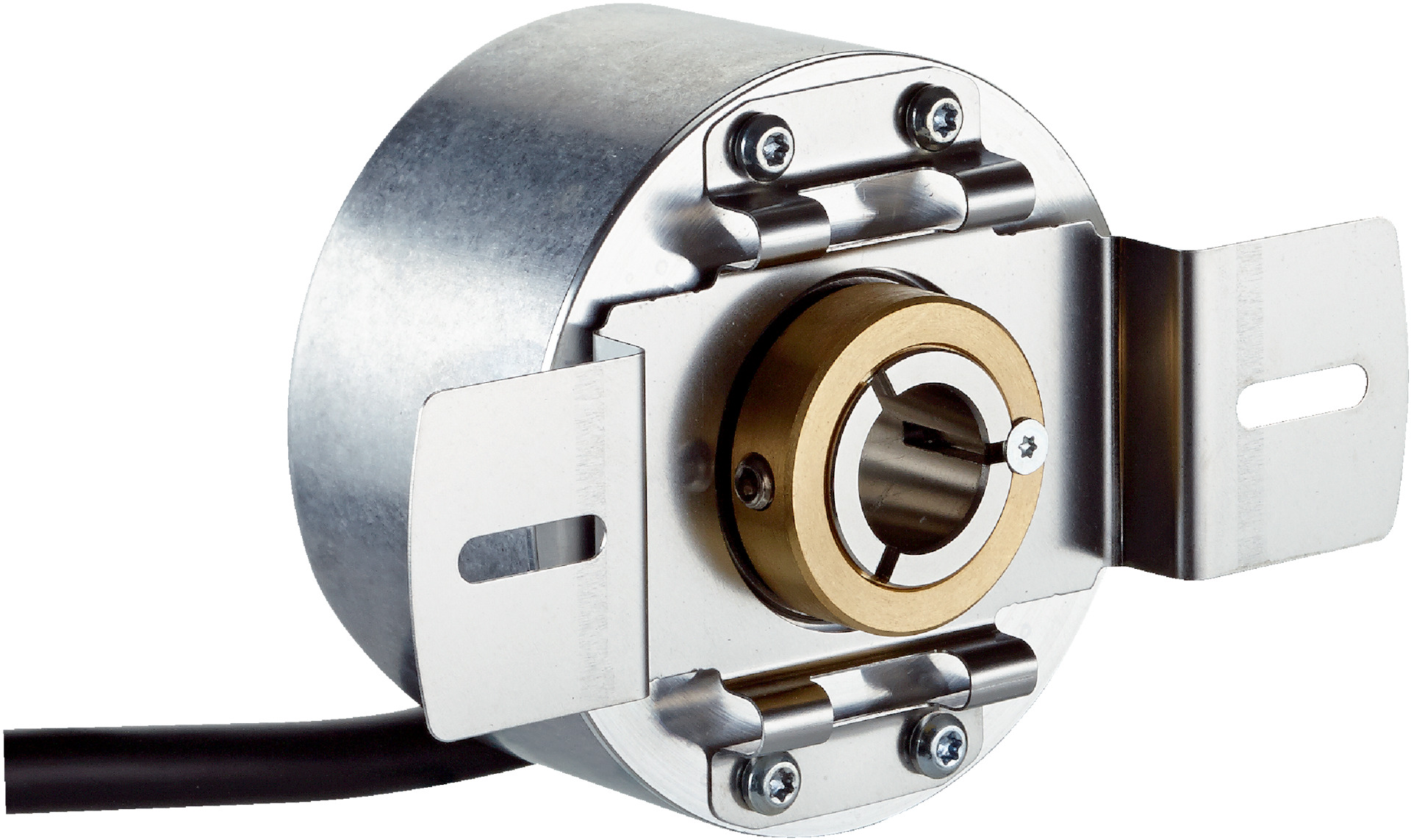

Incremental Encoder DBS60E-TJFK02000 | 2000 Pulses/Rev | IP65 Protection | Hollow Shaft Design | by SICK
The Incremental Encoder DBS60E-TJFK02000 offers high precision with 2000 pulses per revolution, making it ideal for industrial automation and robotics. Its robust aluminum housing features IP65 protection, ensuring durability in harsh environments. With a wide operating temperature range from -30 °C to +100 °C and a high operating speed of up to 9,000 min⁻¹, this encoder is perfect for precise position and speed measurement in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-TJFK02000 | 2000 Pulses/Rev | IP65 Protection | Hollow Shaft Design | by SICK
Brand: SICK
SKU: 1077530
Alternatively Known As: Incremental rotary encoder, SICK incremental encoder, DBS60 encoder, rotary position sensor
Technical Specifications
- Pulses per revolution: 2,000
- Measuring step: ≤ 90°, electric/pulses per revolution
- Measuring step deviation: ± 18° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental TTL / HTL
- Number of signal channels: 6-channel
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Cable, 8-wire, universal, 1.5 m
- Supply voltage: 4.5 to 30 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 5/8″ front clamp
- Flange type: 2-sided stator coupling, slot, screw hole circle 63–83 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum
- Cable material: PVC
- Start up torque: 0.5 Ncm at 20 °C
- Operating torque: 0.4 Ncm at 20 °C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 housing and shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: –30 °C to +100 °C (max 3,000 pulses/rev)
- Storage temperature range: –40 °C to +100 °C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 63mm x 83mm x 63mm
- Weight: 0.25 kg
Key Features
- High resolution with 2,000 pulses per revolution
- Robust aluminum housing with IP65 protection on housing and shaft sides
- Through hollow shaft design with 5/8″ front clamp
- Supports TTL / HTL incremental communication interface
- Low power consumption ≤ 0.5 W without load
- Reverse polarity and short-circuit protection
- High operating speed up to 9,000 min⁻¹
- Long bearing lifetime of 3.6 x 10⁹ revolutions
- Wide operating temperature range from –30 °C to +100 °C
- Shock resistance up to 250 g and vibration resistance up to 30 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and alignment.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor and material handling systems
- Machine tool feedback and control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-TJFK02000 incremental encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
