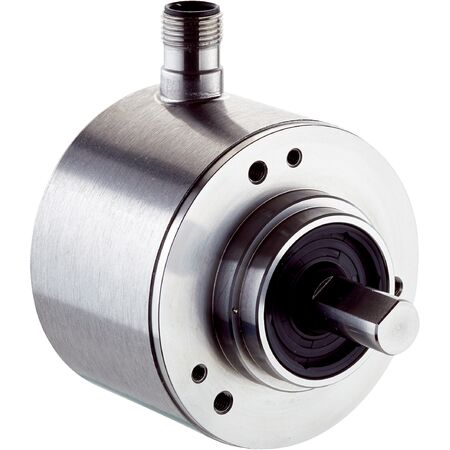

Incremental Encoder DBS60I-S4AC01024 | 1024 Pulses/Rev | IP67 Rated | Stainless Steel | by SICK
The Incremental Encoder DBS60I-S4AC01024 features 1024 pulses per revolution and a robust stainless steel design, making it ideal for industrial automation and motion control applications. With an IP67 protection rating and a wide operating temperature range of -20°C to +85°C, this encoder ensures reliable performance in demanding environments. Its solid shaft design and reverse polarity protection enhance durability and functionality.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60I-S4AC01024 | 1024 Pulses/Rev | IP67 Rated | Stainless Steel | by SICK
Brand: SICK
SKU: 1088917
Alternatively Known As: Incremental rotary encoder, rotary encoder 1024 PPR, SICK incremental encoder, DBS60 encoder
Technical Specifications
- Pulses per revolution: 1024
- Measuring step: 90° electric / pulses per revolution
- Measuring step deviation: ±18° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 30 mA per channel
- Operating current: ≤ 50 mA without load
- Connection type: Male M12 8-pin radial connector
- Supply voltage: 4.5 to 5.5 V
- Reference signal: 1, logically gated with A and B
- Reverse polarity and short-circuit protection included
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Flange type: Flange with 3 x M3 and 3 x M4
- Shaft material: Stainless steel V2A
- Housing material: Stainless steel V2A
- Shaft sealing ring material: FKM80
- Start-up torque: 1 Ncm at +20°C
- Operating torque: 0.9 Ncm at +20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 6000 min⁻¹
- Moment of inertia of rotor: 34 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 (IEC 60529)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.5 kg
Key Features
- Incremental encoder with 1024 pulses per revolution
- Solid shaft with 10 mm diameter and 19 mm length
- High protection rating IP67 with male M12 8-pin connector
- Reverse polarity and short-circuit protection
- Operating temperature range from -20°C to +85°C
- High mechanical robustness with stainless steel housing and shaft
- Low start-up torque of 1 Ncm and operating torque of 0.9 Ncm
- High bearing lifetime and resistance to shocks and vibrations
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder wiring and mounting to ensure proper operation and safety.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor and material handling systems
- Machine tool positioning and feedback
- Safety-related monitoring in machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces waste and replacement frequency
- Low power consumption electronics for energy-efficient operation
- Complies with RoHS for reduced hazardous substances
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The SICK DBS60I-S4AC01024 incremental encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
