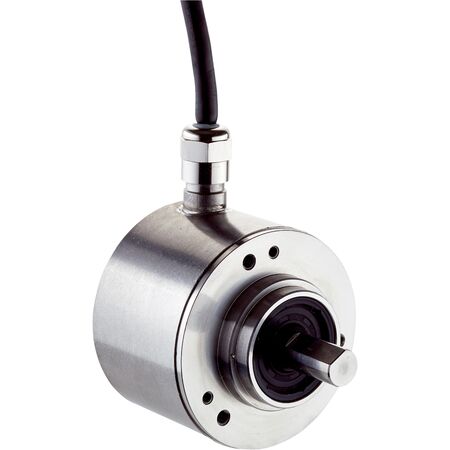

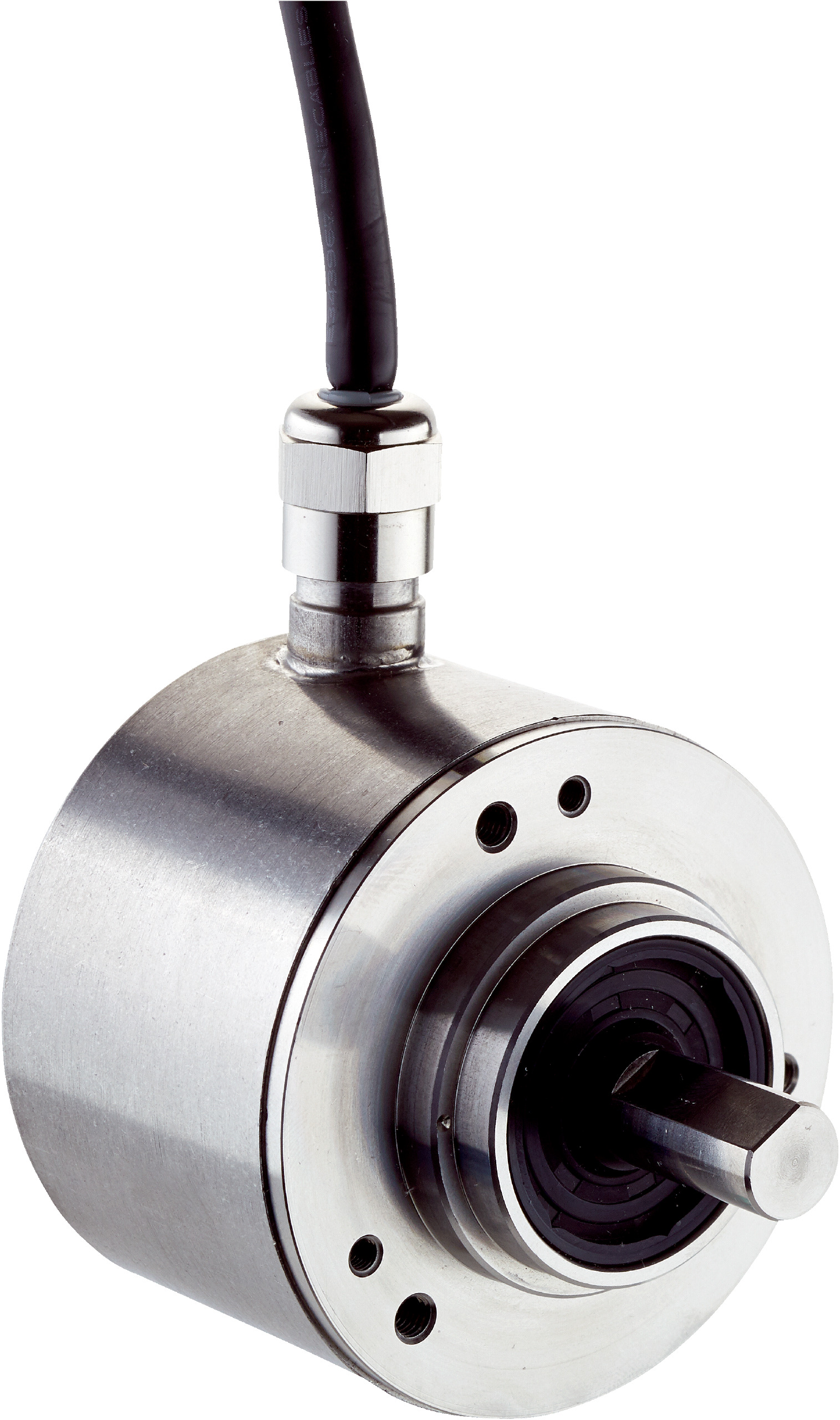

Incremental Encoder DBS60I-S4FM01000 | 1000 PPR | IP67 Rated | Stainless Steel Construction | by SICK
The Incremental Encoder DBS60I-S4FM01000 features 1000 pulses per revolution and a robust IP67 rated enclosure, making it ideal for industrial automation and robotics. With a solid stainless steel shaft and high operating speed of up to 6000 min⁻¹, this encoder ensures precise position and speed measurement, perfect for machine tools and safety-related applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60I-S4FM01000 | 1000 PPR | IP67 Rated | Stainless Steel Construction | by SICK
Brand: SICK
SKU: 1089705
Alternatively Known As: Incremental rotary encoder, SICK DBS60 encoder, 1000 PPR encoder, industrial position sensor
Technical Specifications
- Pulses per revolution: 1000
- Measuring step: 90°, electric/pulses per revolution
- Measuring step deviation: ±18° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental TTL / HTL
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Cable, 8-wire, radial, 5 m
- Supply voltage: 4.5 to 30 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Flange type: Flange with 3 x M3 and 3 x M4
- Shaft material: Stainless steel V2A
- Flange material: Stainless steel V2A
- Housing material: Stainless steel V2A
- Cable material: PVC
- Shaft sealing ring material: FKM80
- Cable gland material: Stainless steel V2A / Nickel-plated brass
- Start up torque: 1 Ncm (+20 °C)
- Operating torque: 0.9 Ncm (+20 °C)
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 6000 min⁻¹
- Moment of inertia of rotor: 34 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 (IEC 60529)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: –30 °C to +100 °C
- Storage temperature range: –40 °C to +100 °C
- Resistance to shocks: 100 g, 6 ms (EN 60068-2-27)
- Resistance to vibration: 30 g, 10 Hz to 2000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 58mm x 60mm x 58mm
- Weight: 0.5 kg
Key Features
- Incremental encoder with 1000 pulses per revolution
- 6-channel TTL/HTL communication interface
- Solid shaft with 10 mm diameter and stainless steel V2A construction
- High operating speed up to 6000 min⁻¹
- IP67 rated enclosure for protection against dust and water
- Reverse polarity and short-circuit protection
- Low power consumption ≤ 0.5 W without load
- High mechanical durability with bearing lifetime of 3.6 x 10⁹ revolutions
- Operating temperature range from –30 °C to +100 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and conveyor systems requiring accurate incremental feedback
- Machine tools and packaging machinery
- Safety-related applications requiring reliable encoder feedback
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60I-S4FM01000 incremental encoder is available for immediate purchase, ideal for industrial automation and safety-related applications requiring precise position feedback.
