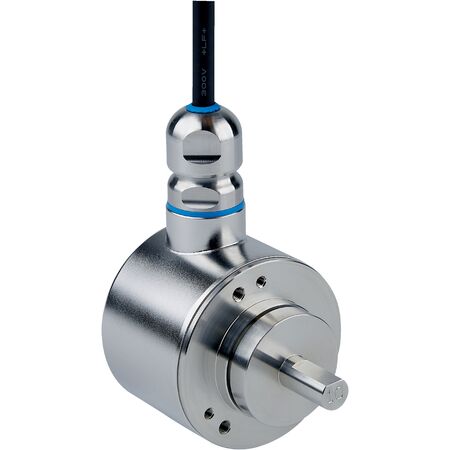

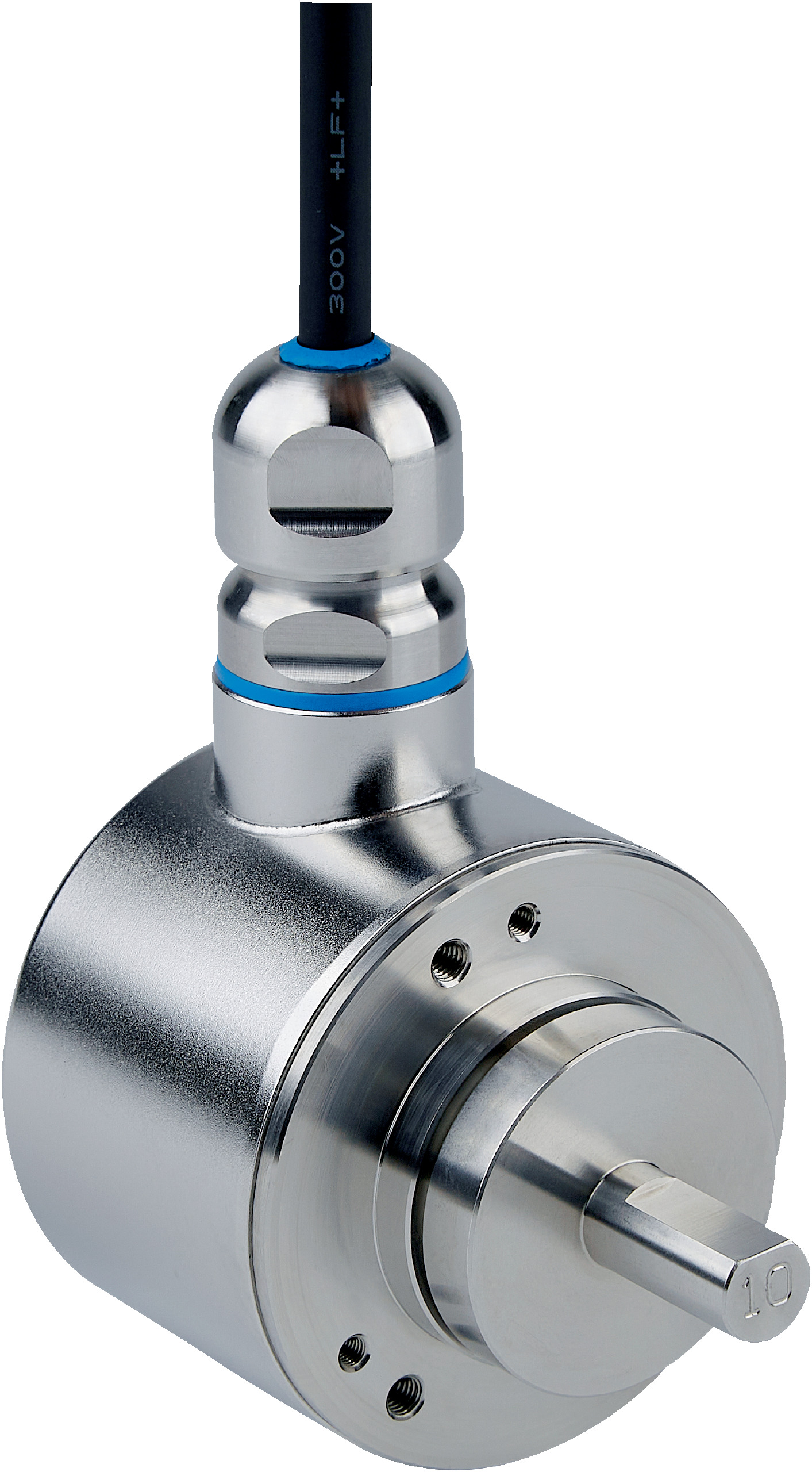

Incremental Encoder DBS60I-W4FK01024 | 1024 Pulses/Rev | IP69K Rated | Stainless Steel | by SICK
The Incremental Encoder DBS60I-W4FK01024 features 1024 pulses per revolution and a robust stainless steel construction, making it ideal for industrial automation and precise position measurement. With an IP69K rating, it withstands harsh environments, ensuring reliable performance in robotics, conveyor systems, and machine tools. Designed for low power consumption and high mechanical robustness, this encoder is perfect for safety-related applications requiring accurate feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60I-W4FK01024 | 1024 Pulses/Rev | IP69K Rated | Stainless Steel | by SICK
Brand: SICK
SKU: 1111505
Alternatively Known As: Incremental rotary encoder, rotary encoder 1024 PPR, industrial encoder, position encoder, SICK DBS60 encoder
Technical Specifications
- Pulses per revolution: 1,024
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±18° per pulses per revolution
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental TTL / HTL
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Cable, 8-wire, radial, 1.5 m
- Supply voltage: 4.5 to 30 V
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Flange type: Flange with 3 x M3 and 3 x M4
- Materials: Stainless steel V4A (316L) housing, shaft, flange; TPU cable; FKM80 shaft sealing ring
- Start up torque: 1 Ncm at +20°C
- Operating torque: 0.9 Ncm at +20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 6,000 min⁻¹
- Moment of inertia of rotor: 45 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP69K (IEC 60529)
- Operating temperature range: -30°C to +100°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 100mm x 60mm
- Weight: 0.7 kg
Key Features
- Incremental encoder with 1024 pulses per revolution
- Solid shaft with 10 mm diameter and stainless steel construction
- High protection rating IP69K suitable for harsh environments
- 6-channel communication interface with TTL/HTL signals
- Short-circuit and reverse polarity protection
- Operating temperature range from -30°C to +100°C
- High mechanical robustness with resistance to shocks and vibrations
- Low power consumption ≤ 0.5 W without load
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder wiring and configuration to ensure proper operation and safety compliance.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and conveyor systems requiring accurate incremental feedback
- Machine tools and packaging machinery
- Safety-related applications requiring reliable encoder feedback
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption contributes to energy efficiency in industrial systems
- High resistance to environmental factors reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK DBS60I-W4FK01024 incremental encoder is available for immediate purchase, ideal for industrial automation and safety-related applications requiring precise position feedback.
