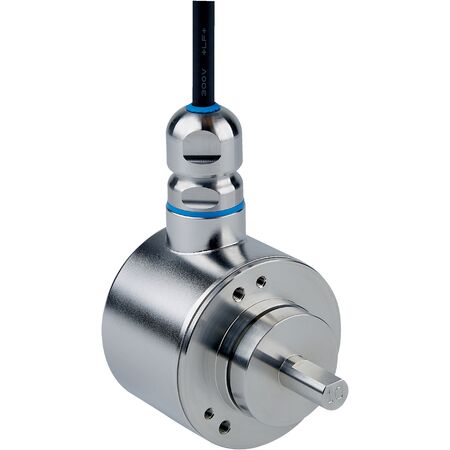

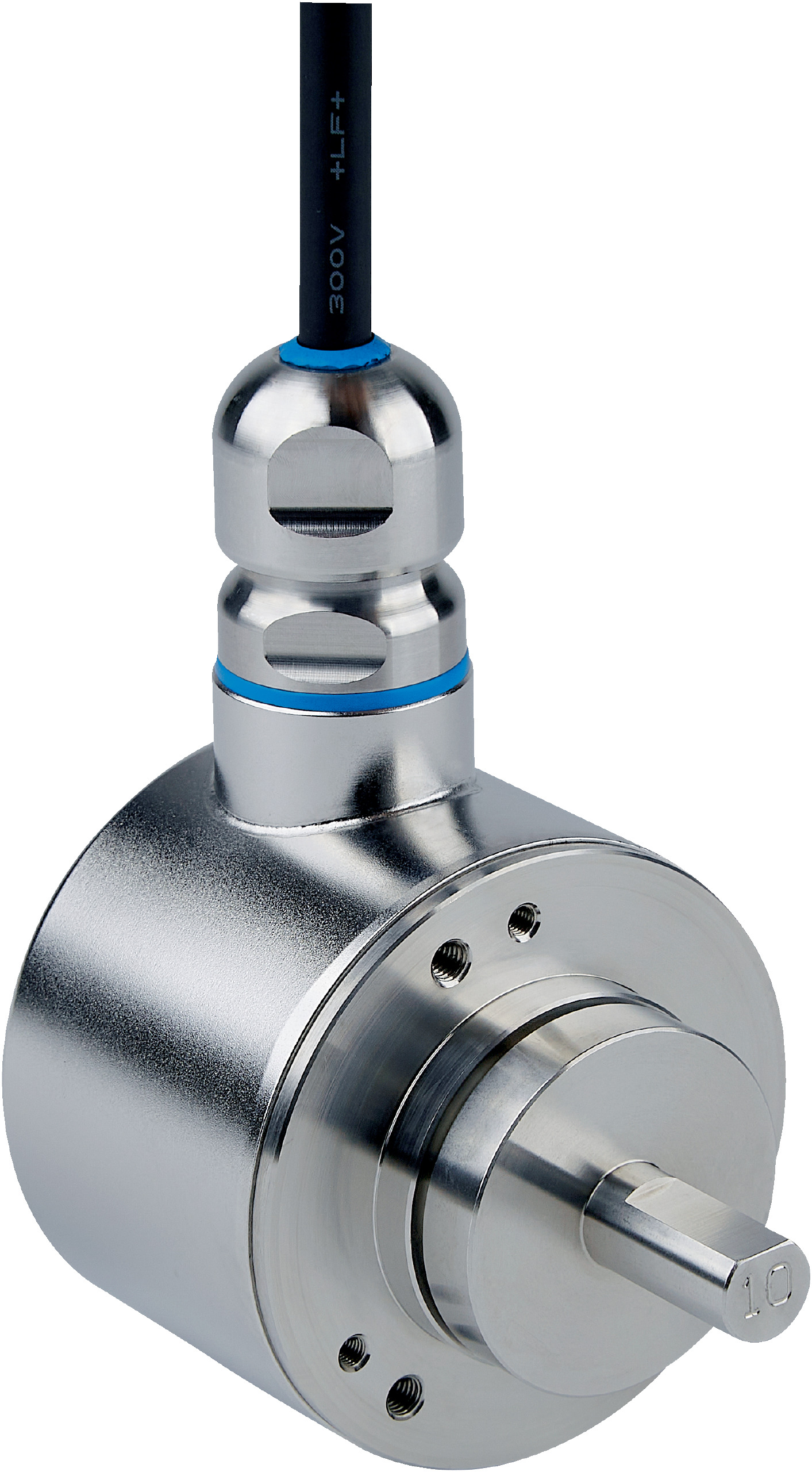

Incremental Encoder DBS60I-W4FM01000 | 1000 Pulses/Rev | IP69K Rated | Stainless Steel | by SICK
The Incremental Encoder DBS60I-W4FM01000 features 1000 pulses per revolution and a robust IP69K rated enclosure, making it perfect for industrial automation and motion control applications. With a solid stainless steel shaft and high operating speed of up to 6000 min⁻¹, this encoder ensures reliable performance in demanding environments, ideal for robotics and machine tool positioning.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60I-W4FM01000 | 1000 Pulses/Rev | IP69K Rated | Stainless Steel | by SICK
Brand: SICK
SKU: 1111508
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder, motion encoder
Technical Specifications
- Pulses per revolution: 1000
- Measuring step: 90° electric / pulses per revolution
- Measuring step deviation: ±18° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental TTL / HTL
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Cable, 8-wire, radial, 5 m
- Supply voltage: 4.5 to 30 V
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Flange type: Flange with 3 x M3 and 3 x M4
- Shaft material: Stainless steel V4A (316L)
- Housing material: Stainless steel V4A (316L)
- Operating speed: ≤ 6000 min⁻¹
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Operating temperature range: –30 °C to +100 °C
- Enclosure rating: IP69K
- Dimensions (H x L x W): 60mm x 100mm x 60mm
- Weight: 0.7 kg
Key Features
- Incremental encoder with 1000 pulses per revolution
- 6-channel communication interface with TTL / HTL signals
- Solid shaft with 10 mm diameter and stainless steel construction
- High operating speed up to 6000 min⁻¹
- IP69K rated enclosure for protection against dust and high-pressure water
- Reverse polarity and short-circuit protection
- Low power consumption ≤ 0.5 W without load
- High mechanical durability with bearing lifetime of 3.6 x 10⁹ revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper alignment and connection.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor and material handling systems
- Machine tool positioning and feedback
- Safety-related monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel construction extends product life and reduces waste
- Low power consumption contributes to energy efficiency in industrial systems
- High resistance to environmental factors reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60I-W4FM01000 Incremental Encoder is available for immediate purchase, ideal for industrial automation and safety-related applications.
