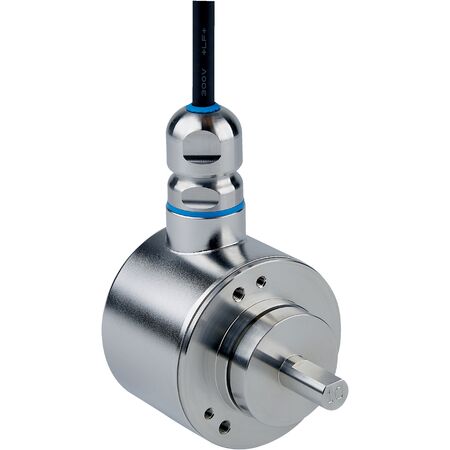

Incremental Encoder DBS60I-W4FN01000 | 1000 PPR | IP69K Rated | Stainless Steel Housing | by SICK
The Incremental Encoder DBS60I-W4FN01000 features 1000 pulses per revolution and a robust IP69K rating, making it perfect for industrial automation and safety applications. With a solid stainless steel shaft and a wide operating temperature range of -30°C to +100°C, this encoder ensures reliable performance in harsh environments, providing precise position and speed measurement for robotics and conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60I-W4FN01000 | 1000 PPR | IP69K Rated | Stainless Steel Housing | by SICK
Brand: SICK
SKU: 1116967
Alternatively Known As: Incremental rotary encoder, SICK DBS60I encoder, 1000 PPR encoder, industrial position sensor
Technical Specifications
- Pulses per revolution: 1000
- Measuring step: 90° electric / pulses per revolution
- Measuring step deviation: ±18° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental TTL / HTL
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Cable, 8-wire, radial, 10 m
- Supply voltage: 4.5 to 30 V
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Flange type: Flange with 3 x M3 and 3 x M4
- Shaft material: Stainless steel V4A (316L)
- Housing material: Stainless steel V4A (316L)
- Start up torque: 1 Ncm (+20 °C)
- Operating torque: 0.9 Ncm (+20 °C)
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 6000 min⁻¹
- Moment of inertia of rotor: 45 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP69K (IEC 60529)
- Operating temperature range: -30 °C to +100 °C
- Storage temperature range: -40 °C to +100 °C
- Resistance to shocks: 100 g, 6 ms (EN 60068-2-27)
- Resistance to vibration: 30 g, 10 Hz to 2000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 60mm x 100mm x 60mm
- Weight: 0.7 kg
Key Features
- Incremental encoder with 1000 pulses per revolution
- 6-channel output with TTL / HTL interface options
- Solid shaft with 10 mm diameter and stainless steel V4A (316L) housing
- High protection rating IP69K suitable for harsh environments
- Operating temperature range from -30°C to +100°C
- Reverse polarity and short-circuit protection
- Low power consumption ≤ 0.5 W without load
- High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and mechanical mounting according to manufacturer guidelines.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and conveyor systems requiring accurate incremental feedback
- Machine tools and packaging machinery
- Safety-related applications requiring reliable encoder feedback
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- Low power consumption contributes to energy efficiency in automation systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60I-W4FN01000 Incremental Encoder is available for immediate purchase, ideal for industrial automation and safety-related applications requiring precise position feedback.
