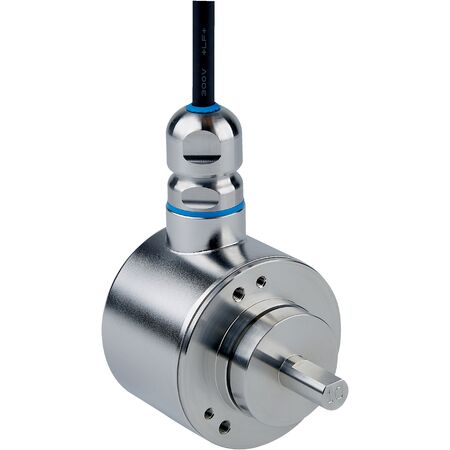

Incremental Encoder DBS60I-W9FK02048 | 2048 Pulses/Rev | IP69K Rated | Stainless Steel Construction | by SICK
The Incremental Encoder DBS60I-W9FK02048 offers high resolution with 2,048 pulses per revolution, making it ideal for industrial automation and robotics. Built with a durable stainless steel V4A (316L) housing and an IP69K rated enclosure, it ensures reliable performance in harsh environments. With fast initialization under 5 ms and robust shock and vibration resistance, this encoder is perfect for precision position and speed measurement in safety-critical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60I-W9FK02048 | 2048 Pulses/Rev | IP69K Rated | Stainless Steel Construction | by SICK
Brand: SICK
SKU: 1111514
Alternatively Known As: Incremental rotary encoder, SICK DBS60 encoder, high resolution encoder, industrial position sensor
Technical Specifications
- Pulses per revolution: 2,048
- Measuring step: 90° electric / pulses per revolution
- Measuring step deviation: ±18° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental TTL / HTL
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Cable, 8-wire, radial, 1.5 m
- Supply voltage: 4.5 to 30 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity and short-circuit protection included
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 3/8” with flat
- Shaft length: 19 mm
- Flange type: Flange with 3 x M3 and 3 x M4
- Materials: Stainless steel V4A (316L) for shaft, flange, housing; TPU cable; FKM80 shaft sealing ring
- Start up torque: 1 Ncm at +20°C
- Operating torque: 0.9 Ncm at +20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 6,000 min⁻¹
- Moment of inertia of rotor: 45 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP69K
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -30°C to +100°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 100mm x 60mm
- Weight: 0.7 kg
Key Features
- High resolution with 2,048 pulses per revolution
- Solid shaft with stainless steel V4A (316L) construction for durability
- IP69K rated enclosure for protection against dust and high-pressure water jets
- Short-circuit and reverse polarity protection
- Fast initialization time of less than 5 ms
- Operating temperature range from -30°C to +100°C
- High mechanical robustness with resistance to shocks (100 g) and vibration (30 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and conveyor systems requiring high-resolution feedback
- Machine tools and packaging machinery
- Safety-related applications requiring reliable encoder feedback
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption of ≤ 0.5 W reduces energy usage
- High resistance to environmental factors minimizes replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60I-W9FK02048 incremental encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
