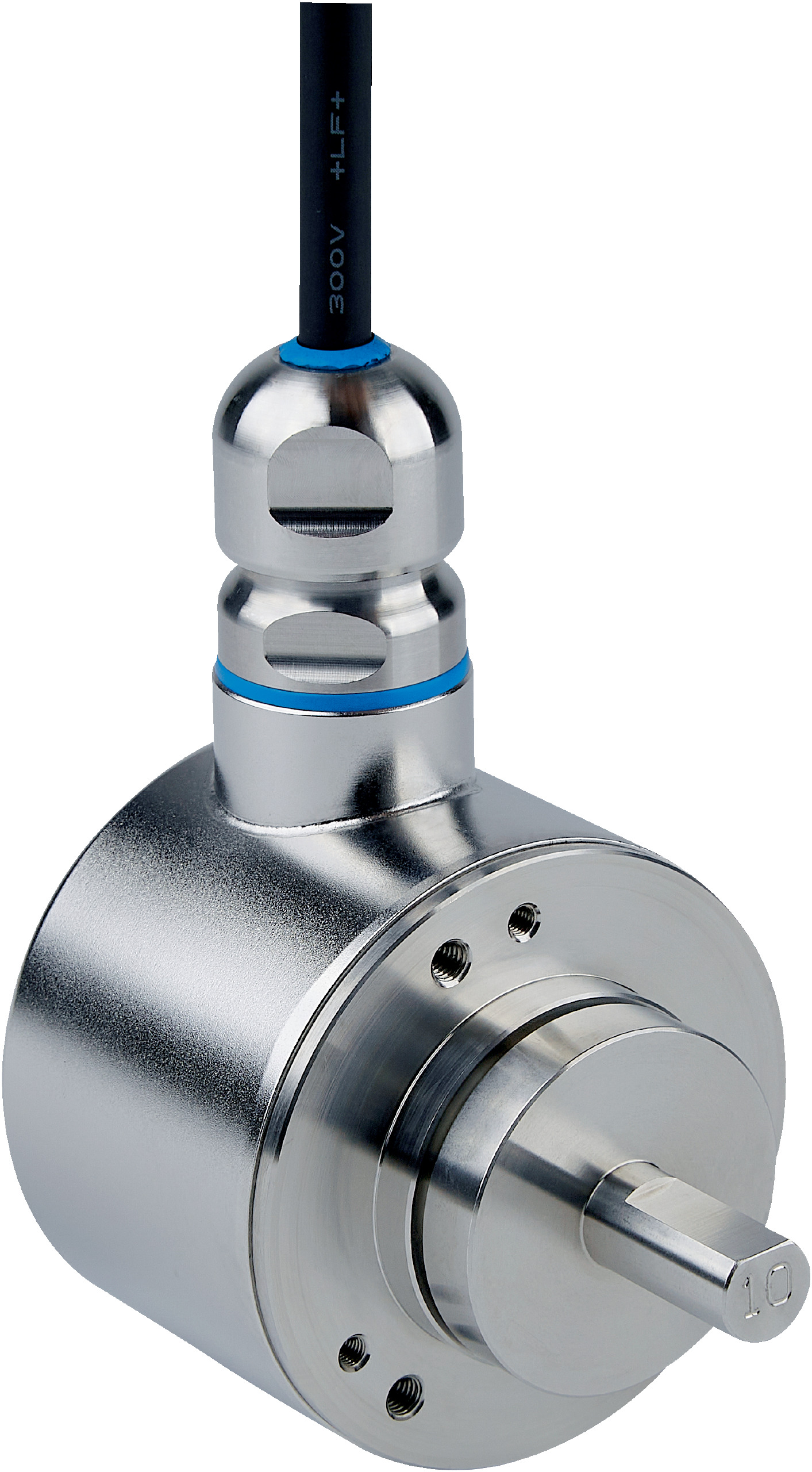

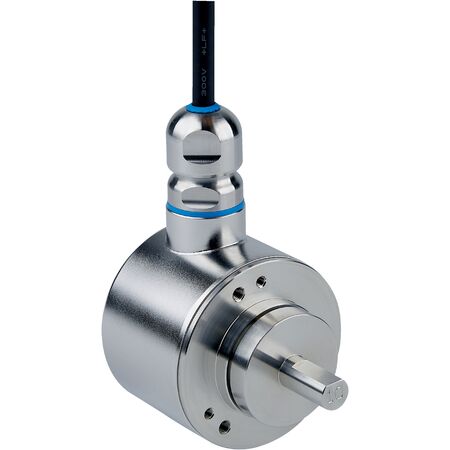

Incremental Encoder DBS60I-W9FN01000 | 1000 Pulses/Rev | IP69K Rated | Stainless Steel | by SICK
The Incremental Encoder DBS60I-W9FN01000 offers 1,000 pulses per revolution, making it perfect for precise position and speed measurement in industrial automation. With a robust IP69K rating and durable stainless steel construction, it withstands harsh environments while ensuring reliable performance. Ideal for robotics, conveyor systems, and safety-critical applications, this encoder is designed for longevity and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60I-W9FN01000 | 1000 Pulses/Rev | IP69K Rated | Stainless Steel | by SICK
Brand: SICK
SKU: 1116970
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder
Technical Specifications
- Pulses per revolution: 1,000
- Measuring step: 90°, electric/pulses per revolution
- Measuring step deviation: ± 18° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental TTL / HTL
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Cable, 8-wire, radial, 10 m
- Supply voltage: 4.5 to 30 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity and short-circuit protection included
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 3/8″ with flat
- Flange type: Flange with 3 x M3 and 3 x M4
- Shaft material: Stainless steel V4A (316L)
- Housing material: Stainless steel V4A (316L)
- Operating torque: 0.9 Ncm (+20 °C)
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 3.6 x 10⁹ revolutions
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP69K
- Operating temperature range: –30 °C to +100 °C
- Dimensions (H x L x W): 60mm x 100mm x 60mm
- Weight: 0.7 kg
Key Features
- Incremental encoder with 1,000 pulses per revolution
- Solid shaft with 3/8″ diameter and 19 mm length
- High protection rating IP69K suitable for harsh environments
- Stainless steel V4A (316L) housing, shaft, and flange for durability
- 6-channel output with TTL / HTL interface options
- Short-circuit and reverse polarity protection
- Operating temperature range from –30 °C to +100 °C
- Low power consumption ≤ 0.5 W without load
- High mechanical resistance with 100 g shock and 30 g vibration tolerance
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper operation and safety compliance.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and conveyor systems requiring accurate feedback
- Machine tools and packaging machinery
- Safety-related applications with high reliability requirements
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel construction extends product life and reduces waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DBS60I-W9FN01000 Incremental Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
