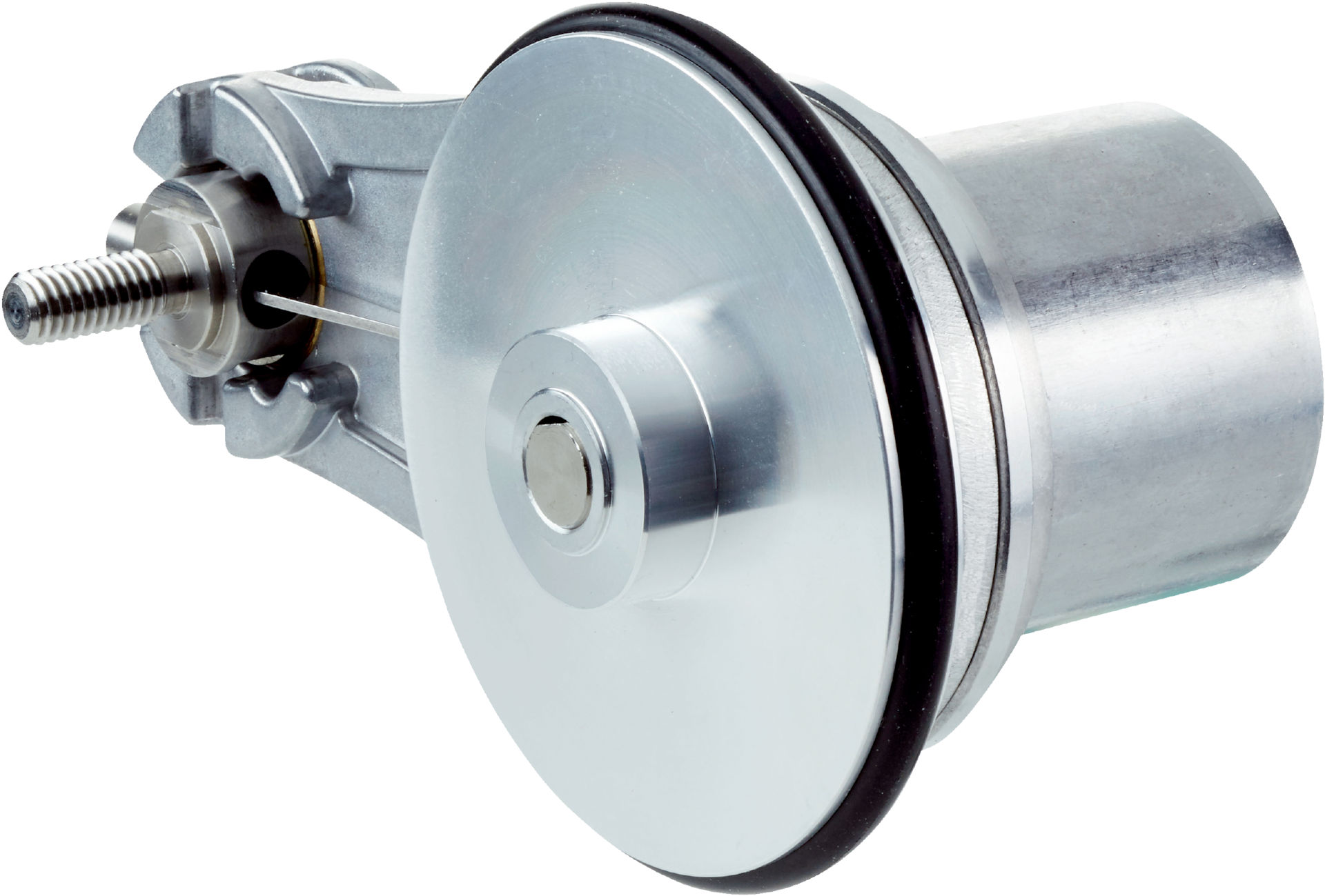

Incremental Encoder DBV50E-00GPB2000 | 2000 Pulses/Rev | IP65 Rated | Spring Arm Design | by SICK
The Incremental Encoder DBV50E-00GPB2000 offers high precision with 2000 pulses per revolution and a robust IP65 rated enclosure, making it ideal for industrial automation and precise position measurement. Designed for durability with a stainless steel shaft and aluminum housing, it withstands harsh environments and provides reliable performance in conveyor systems, machine tools, and robotics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Incremental Encoder with Spring Arm, SICK DBV50E Encoder, Industrial Position Encoder, Rotary Encoder with Measuring Wheel
Technical Specifications
- Pulses per revolution: 2,000
- Resolution: 10 pulses/mm
- Measuring increment: 0.1 mm/pulse
- Measuring step deviation: ±18° per pulses per revolution
- Error limits: ±0.4 mm/m depending on measuring wheel and surface
- Duty cycle: ≤ 0.5 ± 5%
- Initialization time: < 3 ms
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 3
- Operating power consumption (no load): 50 mA
- Supply voltage: 7 V to 27 V
- Load current max: 30 mA
- Maximum output frequency: ≤ 300 kHz
- Reference signal: 1, 90° electric, logically gated with A and B
- Reverse polarity and short-circuit protection included
- Spring arm length: 63.5 mm with single wheel on right side
- Materials: Shaft stainless steel, flange and housing aluminum, cable PVC
- Start up torque: 0.9 Ncm at 20°C
- Operating torque: 0.6 Ncm at 20°C
- Operating speed: 1,500 min⁻¹
- Maximum operating speed: 3,000 min⁻¹
- Bearing lifetime: 2.0 x 10^9 revolutions
- Maximum spring arm travel: 14 mm with 21 N spring travel
- Recommended pretension: 15 N at 10 mm deflection
- Service life of spring element: > 1.4 million cycles
- Mounting position preferably from above, below possible
- EMC compliance: EN 61000-6-2 and EN 61000-6-3 (class A)
- Enclosure rating: IP65
- Operating temperature range: -20°C to +70°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 50mm x 100mm x 50mm
- Weight: 0.3 kg
Key Features
- High resolution with 2,000 pulses per revolution
- Robust aluminum housing and stainless steel shaft for durability
- IP65 rated enclosure for protection against dust and water
- Spring arm design with 63.5 mm arm and single wheel
- Reverse polarity and short-circuit protection
- Operating temperature range from -20°C to +70°C
- High resistance to shock (100 g) and vibration (20 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper mounting and wiring.
Applications
- Industrial automation for precise position and speed measurement
- Conveyor systems requiring accurate travel monitoring
- Machine tool feedback systems
- Robotics and material handling equipment
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials and long service life reduce waste and replacement frequency
- Low power consumption (≤ 0.5 W) contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DBV50E-00GPB2000 incremental encoder is available for immediate purchase, ideal for industrial automation and precise measurement applications.
