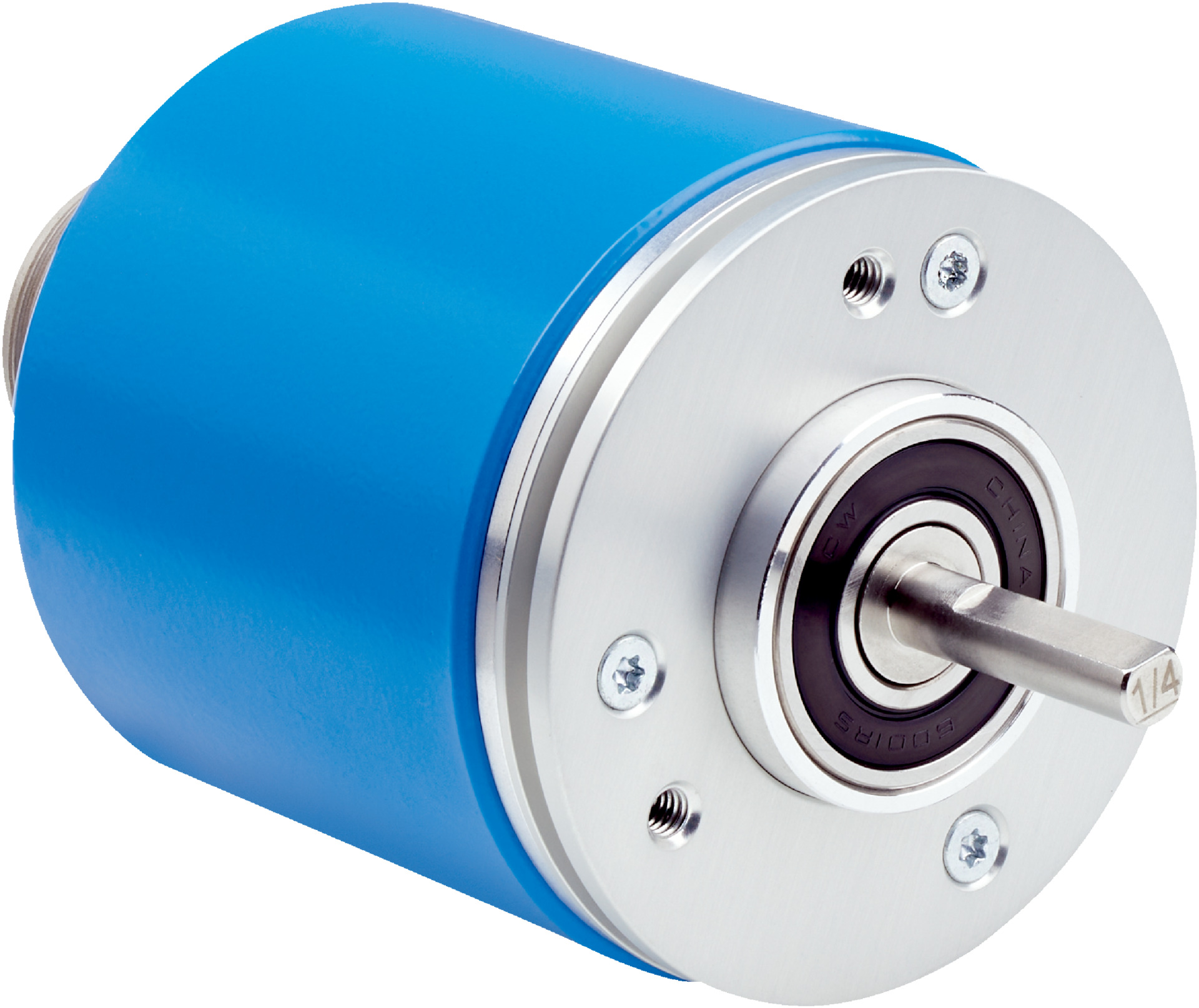

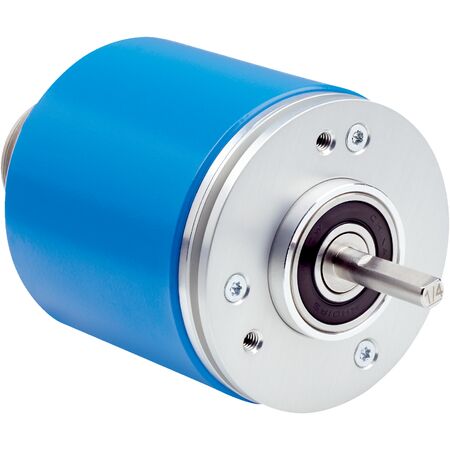

Incremental Encoder DFS25A-B1CA2005000 | 5000 Pulses/Rev | IP65/IP67 Rated | by SICK
The Incremental Encoder DFS25A-B1CA2005000 offers high precision with 5000 pulses per revolution, making it ideal for industrial automation and robotics. With a robust design featuring IP65/IP67 ratings for protection against dust and water, this encoder ensures reliable performance in demanding environments. Perfect for applications requiring precise position and speed measurement, it supports 6-channel incremental TTL/RS-422 communication.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS25A-B1CA2005000 | 5000 Pulses/Rev | IP65/IP67 Rated | by SICK
Brand: SICK
SKU: 1079487
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, pulse encoder
Technical Specifications
- Pulses per revolution: 5,000
- Measuring step deviation: ±0.008°
- Error limits: ±0.03°
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Output frequency: 820 kHz
- Load current: 30 mA
- Power consumption: 0.7 W (without load)
- Supply voltage: 8 to 30 V
- Connection type: Male connector, MS, 10-pin, axial
- Shaft diameter: 1/4 inch with flat
- Shaft length: 19 mm
- Housing material: Aluminum
- Operating speed: up to 9,000 min⁻¹
- Operating temperature range: -30°C to +85°C
- Enclosure rating: IP65 shaft side, IP67 housing side
- Resistance to shocks: 100 g, 11 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 100mm x 58mm
- Weight: 0.4 kg
Key Features
- High resolution with 5,000 pulses per revolution
- Robust solid shaft with stainless steel material
- IP65 rated shaft side and IP67 rated housing side for protection
- Low start-up torque of 0.5 Ncm and operating torque of 0.3 Ncm
- 6-channel incremental TTL/RS-422 communication interface
- Reverse polarity and short-circuit protection
- Operating temperature range from -30°C to +85°C
- High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and calibration.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and servo motor feedback
- Conveyor systems and material handling
- Machine tool control and monitoring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of 0.7 W improves energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's warranty policy for details.
Available Now
The SICK DFS25A-B1CA2005000 Incremental Encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
