Incremental Encoder DFS25A-B4BDD001000 | 1000 Pulses/Rev | IP65/IP67 Rated | by SICK
The Incremental Encoder DFS25A-B4BDD001000 offers high precision with 1000 pulses per revolution, making it ideal for industrial automation and robotics. Designed for durability, it features an IP65/IP67 rating for protection against dust and water, ensuring reliable performance in harsh environments. With a wide operating temperature range of -30°C to +85°C, this encoder is perfect for various applications including conveyor systems and machine tool control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

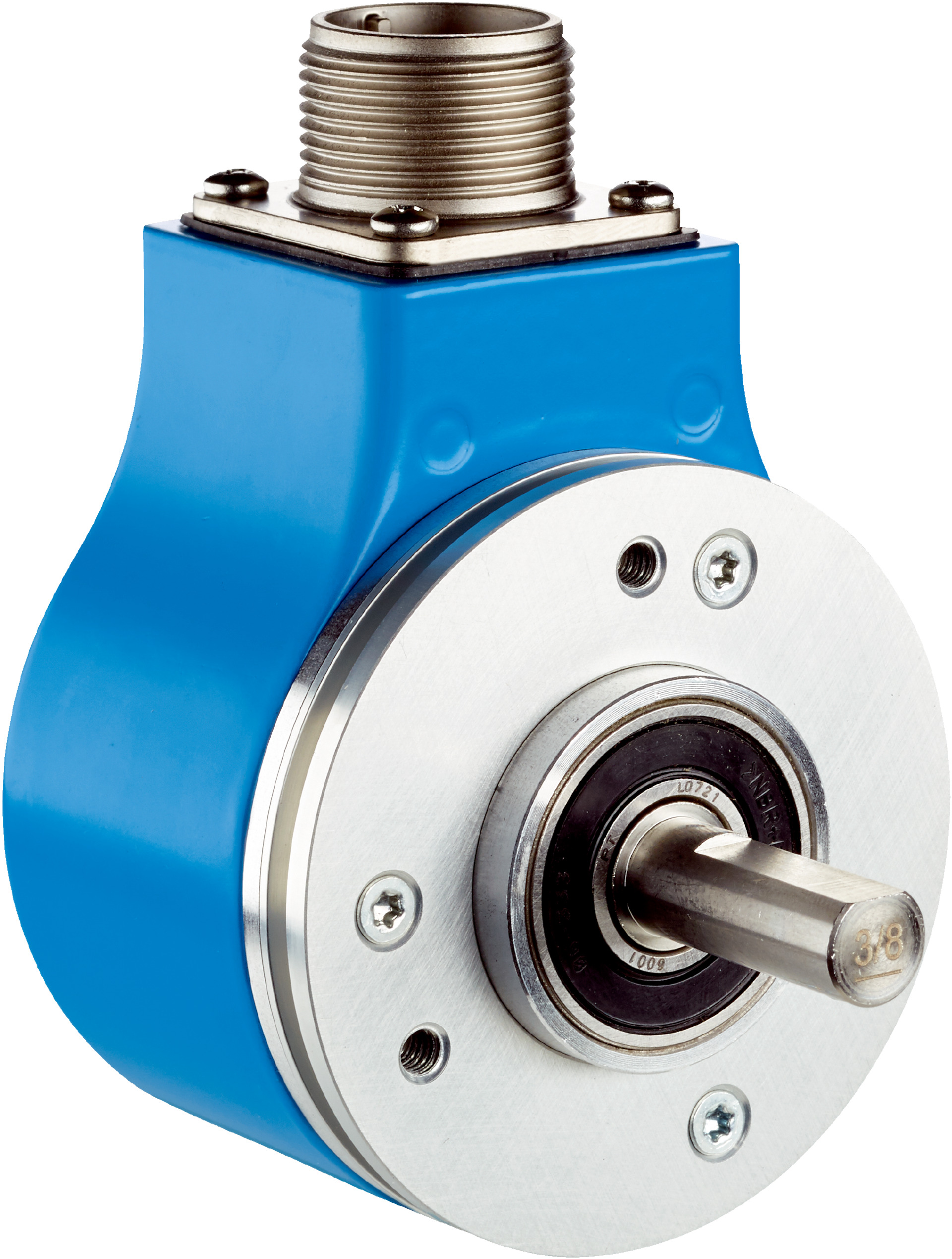

Product Name/Title: Incremental Encoder DFS25A-B4BDD001000 | 1000 Pulses/Rev | IP65/IP67 Rated | by SICK
Brand: SICK
SKU: 1071801
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, pulse encoder
Technical Specifications
- Pulses per revolution: 1,000
- Measuring step deviation: ±0.008° pulses 100 to 10,000
- Error limits: ±0.03°
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6-channel
- Output frequency: 820 kHz
- Load current: 30 mA
- Power consumption: 0.7 W (without load)
- Supply voltage: 8 to 30 V
- Connection type: Male connector, MS, 10-pin, radial
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Start up torque: 0.5 Ncm at +20°C
- Operating torque: 0.3 Ncm at +20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: up to 9,000 min⁻¹
- Moment of inertia of rotor: 15 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: -30°C to +85°C
- Resistance to shocks: 100 g, 11 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 90mm x 58mm
- Weight: 0.4 kg
Key Features
- High resolution with 1,000 pulses per revolution
- Robust solid shaft design with stainless steel shaft and aluminum housing
- IP65 rated shaft side and IP67 rated housing side for protection against dust and water
- Reverse polarity and short-circuit protection
- Fast initialization time of 40 ms
- Operating temperature range from -30°C to +85°C
- High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and servo motor feedback
- Conveyor systems and material handling
- Machine tool control and monitoring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of 0.7 W improves energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS25A-B4BDD001000 Incremental Encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
