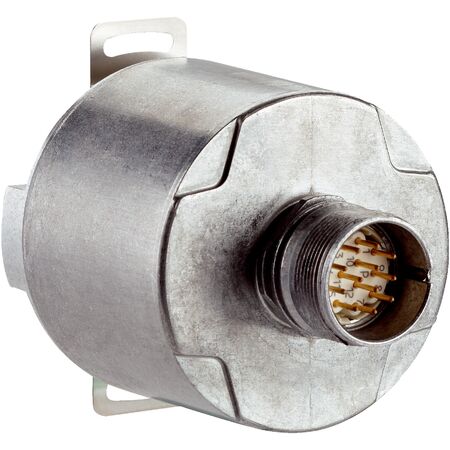

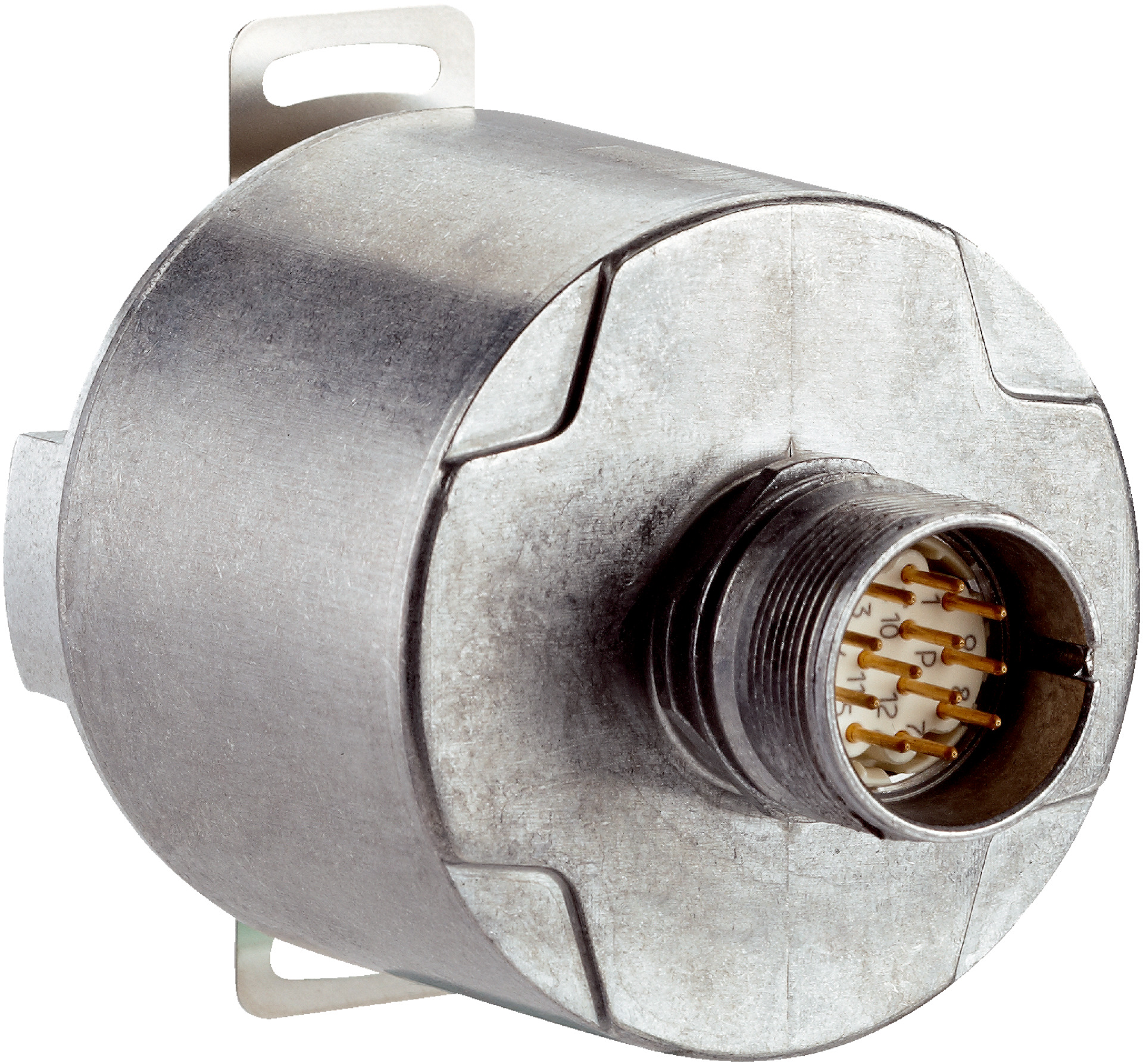

Incremental Encoder DFS60A-BAWB02048 | 2048 Pulses/Rev | IP67 Rated | Blind Hollow Shaft | by SICK
The Incremental Encoder DFS60A-BAWB02048 offers high precision with 2048 pulses per revolution, making it ideal for industrial automation and robotics. Designed for durability, it features a robust aluminum die cast housing with an IP67 rating, ensuring reliable performance in harsh environments. With a fast initialization time of just 30 ms and reverse polarity protection, this encoder is perfect for motion control systems and material handling equipment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS60A-BAWB02048 | 2048 Pulses/Rev | IP67 Rated | Blind Hollow Shaft | by SICK
Brand: SICK
SKU: 1137222
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder
Technical Specifications
- Pulses per revolution: 2,048
- Measuring step deviation: ±0.008°
- Error limits: ±0.03°
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- 0-set function: H-active via hardware pin
- Initialization time: 30 ms
- Output frequency: ≤ 820 kHz
- Load current: ≤ 30 mA
- Power consumption: ≤ 0.7 W (without load)
- Connection type: Male connector, M23, 12-pin, axial
- Supply voltage: 4.5 to 32 V
- Reference signal: 1, 90° electric, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Blind hollow shaft
- Shaft diameter: 6 mm front clamp
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum die cast
- Start up torque: 0.8 Ncm at +20°C
- Operating torque: 0.6 Ncm at +20°C
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.05 mm radial, ±0.01 mm axial
- Operating speed: ≤ 6,000 min⁻¹
- Moment of inertia of rotor: 40 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Operating temperature range: -40°C to +100°C
- Storage temperature range: -40°C to +100°C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.2 kg
Key Features
- High resolution with 2,048 pulses per revolution
- 6-channel incremental HTL / Push pull communication interface
- Robust aluminum die cast housing with IP67 rating on housing side
- Blind hollow shaft design with 6 mm stainless steel shaft
- Reverse polarity and short-circuit protection
- Operating temperature range from -40°C to +100°C
- Low power consumption ≤ 0.7 W
- Fast initialization time of 30 ms
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor and material handling equipment
- Machine tool feedback and control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption contributes to energy efficiency in automation systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DFS60A-BAWB02048 Incremental Encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
