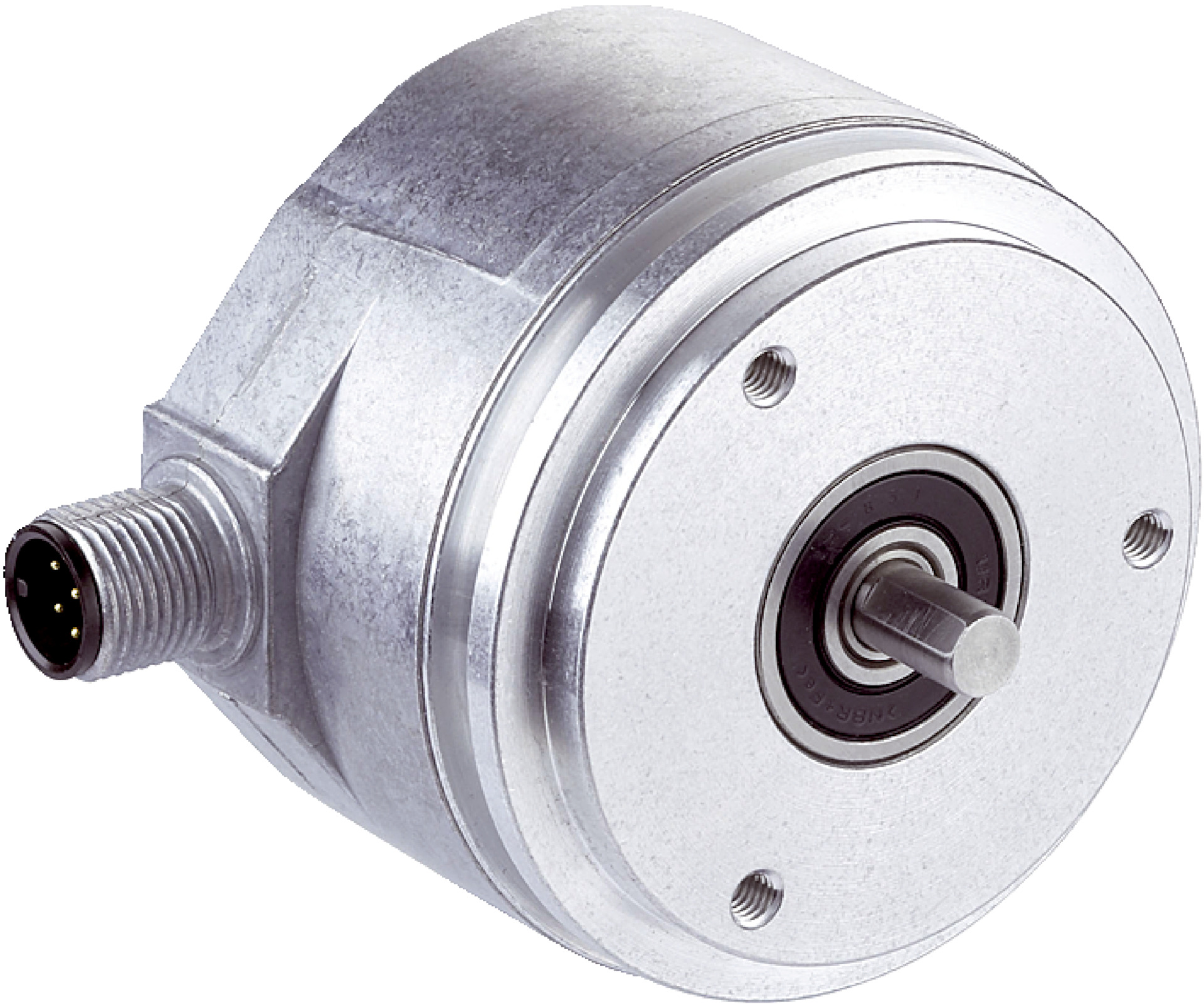

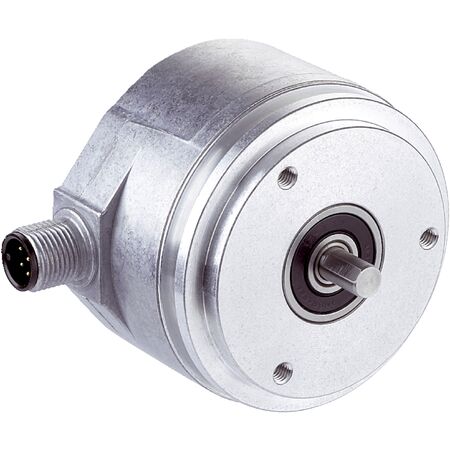

Incremental Encoder DFS60A-S1PC65536 | 65,536 Pulses/Rev | IP67 Rated | by SICK
The Incremental Encoder DFS60A-S1PC65536 features a high resolution of 65,536 pulses per revolution and a robust design with an IP67 rated housing, making it perfect for industrial automation and control systems. With a wide operating temperature range from -40°C to +100°C and a durable stainless steel shaft, this encoder ensures reliable performance in harsh environments, ideal for robotics and precision measurement applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS60A-S1PC65536 | 65,536 Pulses/Rev | IP67 Rated | by SICK
Brand: SICK
SKU: 1036761
Alternatively Known As: Incremental rotary encoder, high resolution encoder, rotary position sensor, shaft encoder
Technical Specifications
- Pulses per revolution: 65,536
- Measuring step deviation: ±0.0015°
- Error limits: ±0.03°
- Communication interface: Incremental TTL/HTL, 6-channel
- Output frequency: ≤ 820 kHz
- Load current: ≤ 30 mA
- Power consumption: ≤ 0.7 W (without load)
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 4.5 to 32 V
- Shaft diameter: 6 mm with flat
- Shaft length: 10 mm
- Start up torque: 0.5 Ncm at +20°C
- Operating torque: 0.3 Ncm at +20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Enclosure rating: IP67 housing side, IP65 shaft side
- Operating temperature range: -40°C to +100°C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.3 kg
Key Features
- High resolution with 65,536 pulses per revolution
- 6-channel incremental communication interface (TTL/HTL)
- Robust solid shaft design with stainless steel shaft and aluminum housing
- IP67 rated housing side and IP65 shaft side for harsh environments
- Operating temperature range from -40°C to +100°C
- Short-circuit and reverse polarity protection
- Fast initialization time of 30-32 ms
- High mechanical durability with bearing lifetime of 3.6 x 10^10 revolutions
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Position and speed measurement in manufacturing
- Machine tool and conveyor systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of ≤ 0.7 W enhances energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60A-S1PC65536 Incremental Encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
