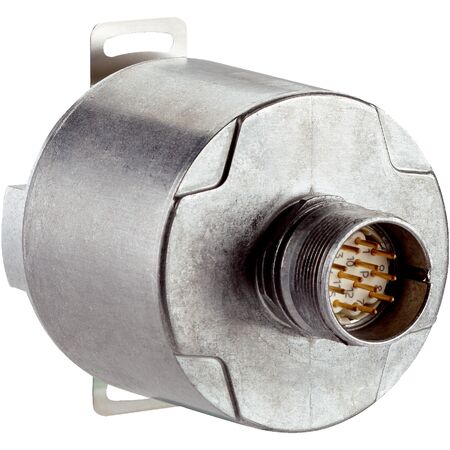

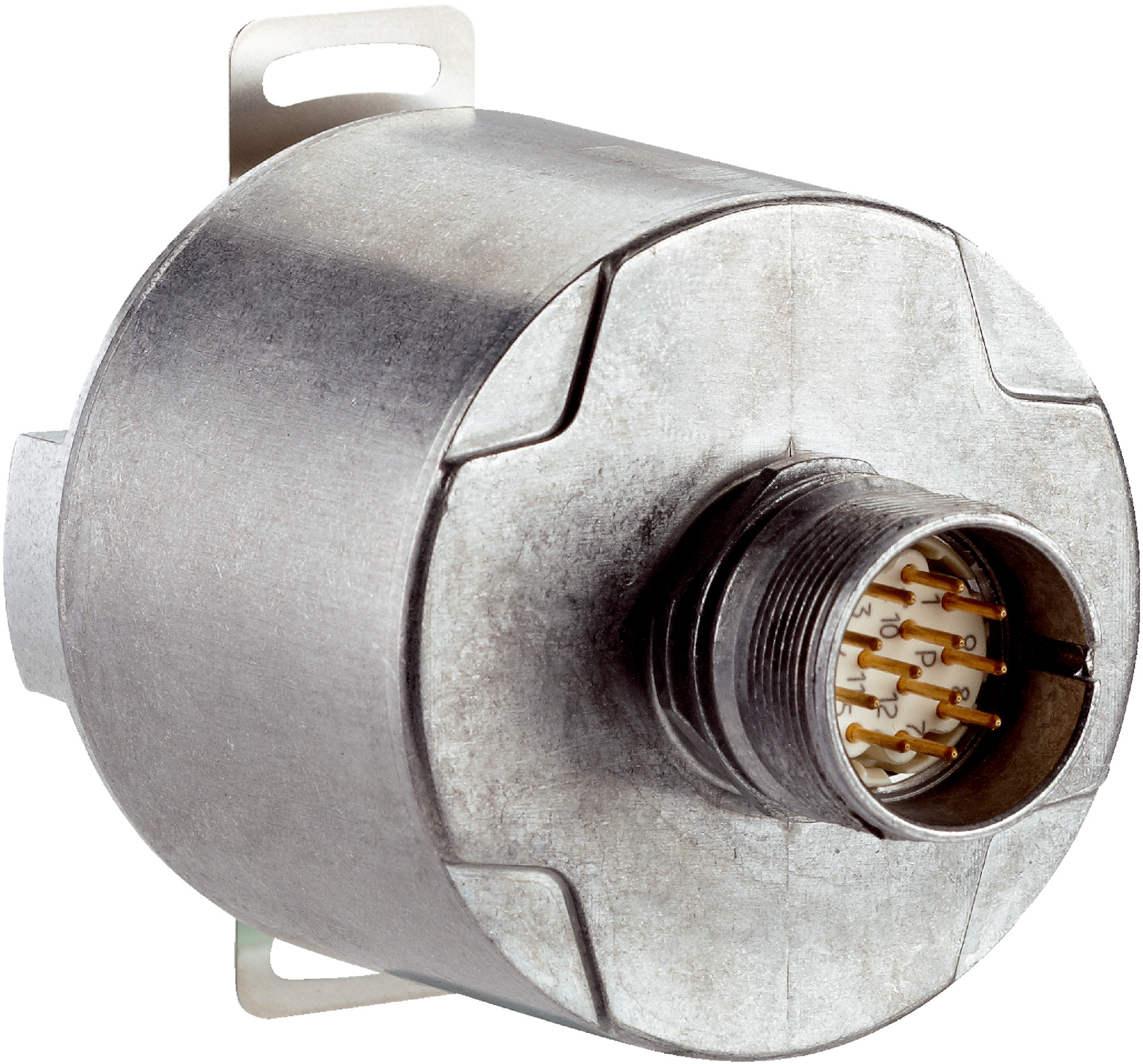

Incremental Encoder DFS60B-BHPB10000 | 10,000 Pulses/Rev | IP67 Rated | High Speed | by SICK
The Incremental Encoder DFS60B-BHPB10000 offers high resolution with 10,000 pulses per revolution, making it ideal for industrial automation and precise motion control applications. With a robust design featuring a stainless steel shaft and IP67 rated housing, it ensures reliable performance in harsh environments, while its low power consumption and high operating speed up to 6,000 min⁻¹ enhance efficiency in various systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS60B-BHPB10000 | 10,000 Pulses/Rev | IP67 Rated | High Speed | by SICK
Brand: SICK
SKU: 1059318
Alternatively Known As: Incremental rotary encoder, high resolution encoder, industrial position sensor, shaft encoder
Technical Specifications
- Pulses per revolution: 10,000
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±0.01°
- Error limits: ±0.05°
- Communication interface: Incremental TTL/HTL
- Number of signal channels: 6
- Initialization time: 30-32 ms
- Output frequency: ≤ 600 kHz
- Load current: ≤ 30 mA
- Power consumption: ≤ 0.7 W (without load)
- Connection type: Male connector, M23, 12-pin, axial
- Supply voltage: 4.5 to 32 V
- Reference signal: 1, positioned at 90° electric
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Blind hollow shaft
- Shaft diameter: 15 mm front clamp
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum die cast
- Start up torque: 0.8 Ncm at +20°C
- Operating torque: 0.6 Ncm at +20°C
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: ≤ 6,000 min⁻¹
- Moment of inertia of rotor: 40 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Operating temperature range: -40°C to +100°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 70 g, 6 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 50mm x 100mm x 50mm
- Weight: 0.2 kg
Key Features
- High resolution with 10,000 pulses per revolution
- 6-channel incremental communication interface (TTL/HTL)
- Programmable and configurable output settings
- Robust mechanical design with blind hollow shaft and stainless steel shaft
- IP67 rated housing for protection against dust and water
- Operating temperature range from -40°C to +100°C
- Reverse polarity and short-circuit protection
- Low power consumption (≤ 0.7 W without load)
- High operating speed up to 6,000 min⁻¹
- Long bearing lifetime of 3.6 x 10^10 revolutions
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and mechanical mounting for optimal performance and safety.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Machine tool feedback
- Conveyor and material handling systems
- Position and speed measurement in manufacturing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60B-BHPB10000 Incremental Encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
