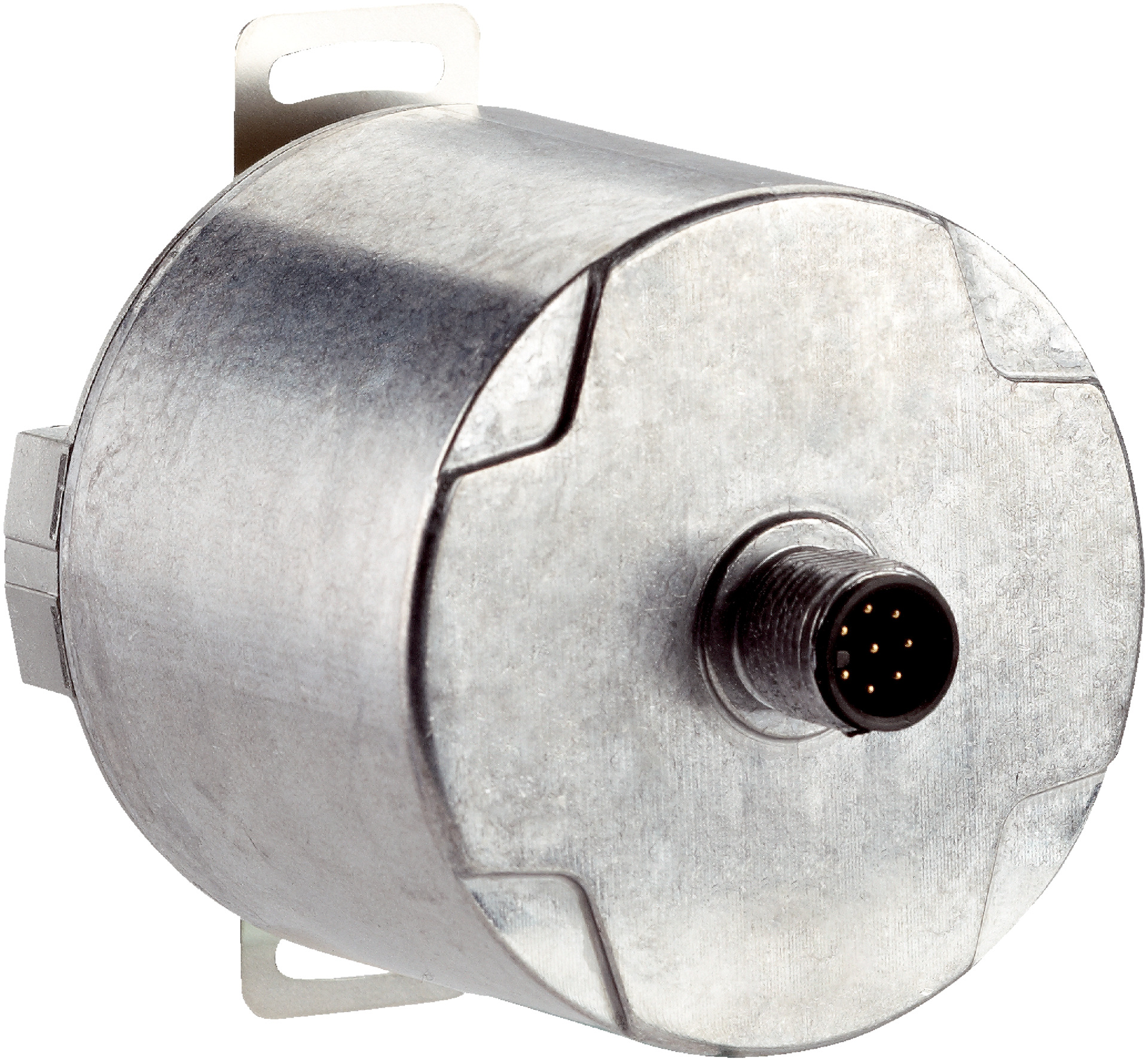

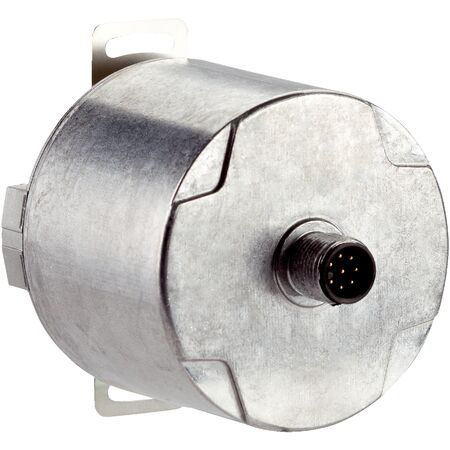

Incremental Encoder DFS60B-BHPD05000 | 5000 Pulses/Rev | IP67 Rated | by SICK
The Incremental Encoder DFS60B-BHPD05000 offers high precision with 5000 pulses per revolution, making it ideal for industrial automation and robotics. With a robust design and IP67 rating, it ensures reliable performance in harsh environments, while its low power consumption and fast initialization time enhance efficiency in motion control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS60B-BHPD05000 | 5000 Pulses/Rev | IP67 Rated | by SICK
Brand: SICK
SKU: 1120252
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder
Technical Specifications
- Pulses per revolution: 5,000
- Measuring step: 90°, electric/pulses per revolution
- Measuring step deviation: ±0.01°
- Error limits: ±0.05°
- Communication interface: Incremental TTL/HTL
- Number of signal channels: 6
- Output frequency: ≤ 600 kHz
- Load current: ≤ 30 mA
- Power consumption: ≤ 0.7 W (without load)
- Connection type: Male connector, M12, 8-pin, axial
- Supply voltage: 4.5 to 32 V
- Shaft diameter: 15 mm
- Start up torque: 0.8 Ncm at +20 °C
- Operating torque: 0.6 Ncm at +20 °C
- Operating speed: ≤ 6,000 min⁻¹
- Moment of inertia of rotor: 40 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Enclosure rating: IP67 housing side, IP65 shaft side
- Operating temperature range: -40 °C to +100 °C
- Resistance to shocks: 70 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 100mm x 58mm
- Weight: 0.2 kg
Key Features
- High resolution with 5,000 pulses per revolution
- 6-channel incremental communication interface (TTL/HTL)
- Robust mechanical design with blind hollow shaft and stainless steel shaft
- IP67 rated housing for protection against dust and water
- Operating temperature range from -40°C to +100°C
- Short-circuit and reverse polarity protection
- Low power consumption of ≤ 0.7 W
- Fast initialization time of 30-32 ms
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and calibration.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor and material handling systems
- Machine tool feedback and control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60B-BHPD05000 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
