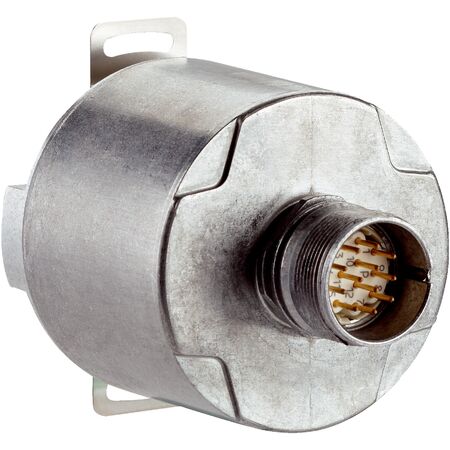

Incremental Encoder DFS60B-BJAB01024 | 1024 Pulses/Rev | TTL/RS-422 Interface | IP67 Rated | by SICK
The Incremental Encoder DFS60B-BJAB01024 delivers exceptional precision with 1024 pulses per revolution and a measuring step deviation of just ±0.008°. Designed for industrial automation, robotics, and motion control, it features a robust stainless steel shaft and IP67 rated housing for protection against dust and water. With a wide operating temperature range from -40°C to +100°C, this encoder is built for reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS60B-BJAB01024 | 1024 Pulses/Rev | TTL/RS-422 Interface | IP67 Rated | by SICK
Brand: SICK
SKU: 1104795
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, pulse encoder
Technical Specifications
- Pulses per revolution: 1024
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±0.008°
- Error limits: ±0.05°
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: ≤ 600 kHz
- Load current: ≤ 30 mA
- Operating current: 40 mA (without load)
- Connection type: Male connector, M23, 12-pin, axial
- Supply voltage: 4.5 to 5.5 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Short-circuit protection: Yes
- Mechanical design: Blind hollow shaft
- Shaft diameter: 5/8 inch front clamp
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum die cast
- Start up torque: 0.8 Ncm at +20°C
- Operating torque: 0.6 Ncm at +20°C
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: ≤ 6000 min⁻¹
- Moment of inertia of rotor: 40 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -40°C to +100°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 70 g, 6 ms
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 58mm x 58mm x 58mm
- Weight: 0.2 kg
Key Features
- Incremental encoder with 1024 pulses per revolution
- TTL / RS-422 communication interface with 6 signal channels
- High accuracy with measuring step deviation ±0.008° and error limits ±0.05°
- Robust mechanical design with blind hollow shaft and stainless steel shaft
- IP67 rated housing for protection against dust and water
- Operating temperature range from -40°C to +100°C
- Short-circuit protection on outputs
- Low start-up torque of 0.8 Ncm and operating torque of 0.6 Ncm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical wiring standards to ensure proper connection and operation.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and conveyor systems requiring accurate feedback
- Machine tools and packaging machinery
- General motion control applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Energy-efficient operation with low operating current of 40 mA
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60B-BJAB01024 Incremental Encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
