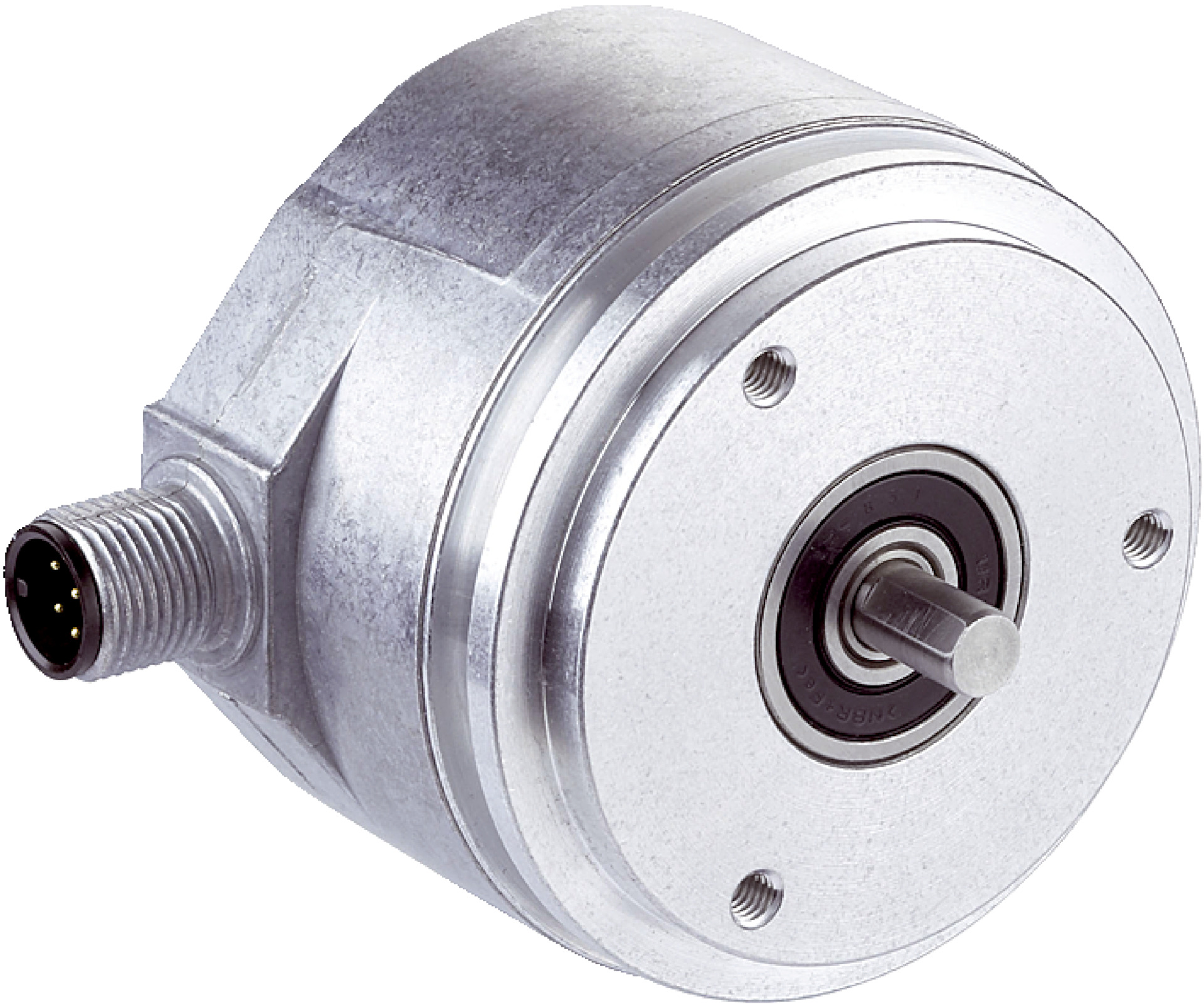

Incremental Encoder DFS60B-S1AC04096 | 4096 Pulses/Rev | IP67 Rated | by SICK
The Incremental Encoder DFS60B-S1AC04096 offers high precision with 4,096 pulses per revolution, making it ideal for industrial automation and robotics. With a robust aluminum die cast housing rated IP67, it withstands harsh environments while providing reliable position and speed measurement. Designed for professionals, this encoder ensures durability and accuracy in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS60B-S1AC04096 | 4096 Pulses/Rev | IP67 Rated | by SICK
Brand: SICK
SKU: 1059983
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, pulse encoder
Technical Specifications
- Pulses per revolution: 4,096
- Measuring step: 90° electric / pulses per revolution
- Measuring step deviation: ±0.008°
- Error limits: ±0.05°
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: ≤ 600 kHz
- Load current: ≤ 30 mA
- Operating current: 40 mA (without load)
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 4.5 to 5.5 V
- Reference signal: 1, positioned at 90° electric, logically gated with A and B
- Short-circuit protection: Yes
- Mechanical design: Solid shaft, servo flange
- Shaft diameter: 6 mm with flat
- Shaft length: 10 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum die cast
- Start-up torque: 0.5 Ncm at +20°C
- Operating torque: 0.3 Ncm at +20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -40°C to +100°C
- Storage temperature range: -40°C to +100°C
- Resistance to shocks: 70 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.3 kg
Key Features
- High resolution with 4,096 pulses per revolution
- Solid shaft with 6 mm diameter and 10 mm length
- Robust aluminum die cast housing with IP67 rating on housing side
- TTL / RS-422 incremental communication interface
- Short-circuit protected outputs
- Operating temperature range from -40°C to +100°C
- High mechanical durability with bearing lifetime of 3.6 x 10^10 revolutions
- Low start-up torque of 0.5 Ncm and operating torque of 0.3 Ncm
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with incremental encoders and electrical safety standards.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and servo motor feedback systems
- Conveyor systems and material handling
- Machine tool control and monitoring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption with 4.5 to 5.5 V supply voltage
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60B-S1AC04096 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
