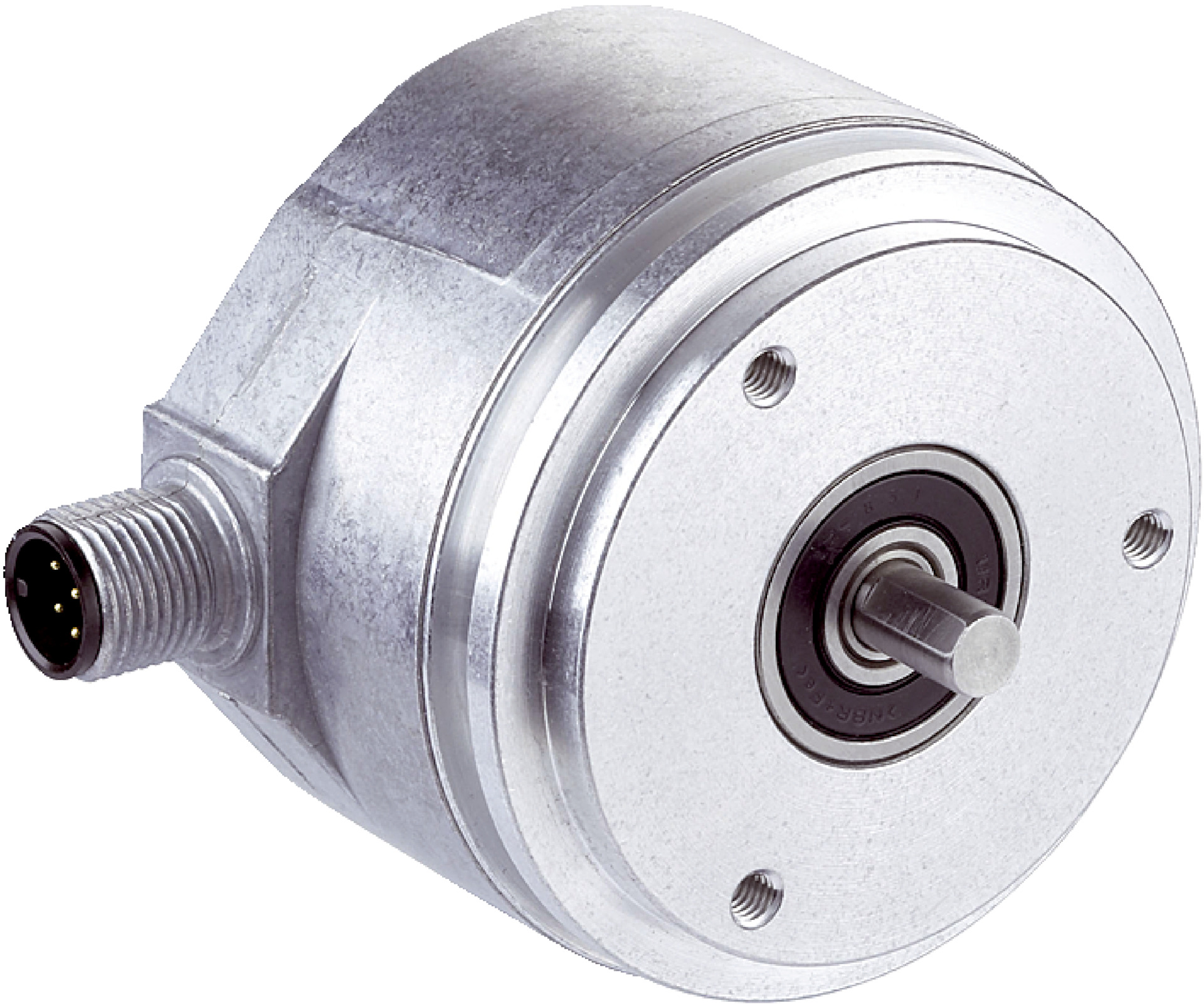

Incremental Encoder DFS60B-S1EC04096 | 4096 PPR | Solid Shaft Design | IP67 Rated | by SICK
The Incremental Encoder DFS60B-S1EC04096 offers high precision with 4,096 pulses per revolution, making it ideal for industrial automation and robotics. Built with a solid stainless steel shaft and robust aluminum housing, it withstands harsh environments with an IP67 rating. Perfect for applications requiring accurate position and speed measurement, this encoder ensures reliable performance in conveyor systems and machine tool control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS60B-S1EC04096 | 4096 PPR | Solid Shaft Design | IP67 Rated | by SICK
Brand: SICK
SKU: 1081592
Alternatively Known As: Incremental rotary encoder, rotary encoder 4096 PPR, solid shaft encoder, industrial position sensor
Technical Specifications
- Pulses per revolution: 4,096
- Measuring step: 90°, electric/pulses per revolution
- Measuring step deviation: ±0.008°
- Error limits: ±0.05°
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: ≤ 600 kHz
- Load current: ≤ 30 mA
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 10 to 32 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Solid shaft, servo flange
- Shaft diameter: 6 mm with flat
- Shaft length: 10 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum die cast
- Start up torque: 0.5 Ncm at +20°C
- Operating torque: 0.3 Ncm at +20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP67 housing side, IP65 shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -40°C to +100°C
- Storage temperature range: -40°C to +100°C
- Resistance to shocks: 70 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.3 kg
Key Features
- High resolution with 4,096 pulses per revolution
- Solid shaft with stainless steel material and servo flange design
- Robust aluminum die cast housing with IP67 rating on housing side
- Operating temperature range from -40°C to +100°C
- Short-circuit and reverse polarity protection
- 6-channel incremental HTL / Push pull communication interface
- Low power consumption ≤ 0.5 W without load
- High mechanical durability with bearing lifetime of 3.6 x 10^10 revolutions
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and mechanical mounting for optimal performance and safety.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and servo motor feedback
- Conveyor systems and material handling
- Machine tool control and monitoring
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60B-S1EC04096 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
