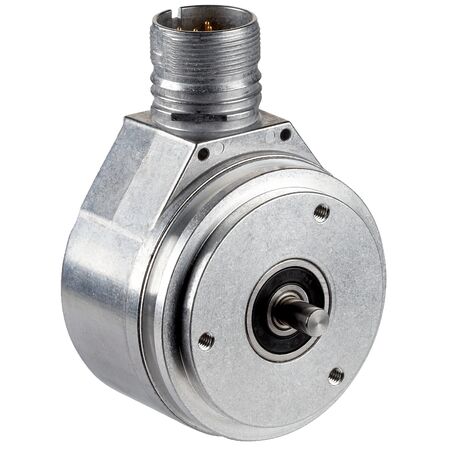

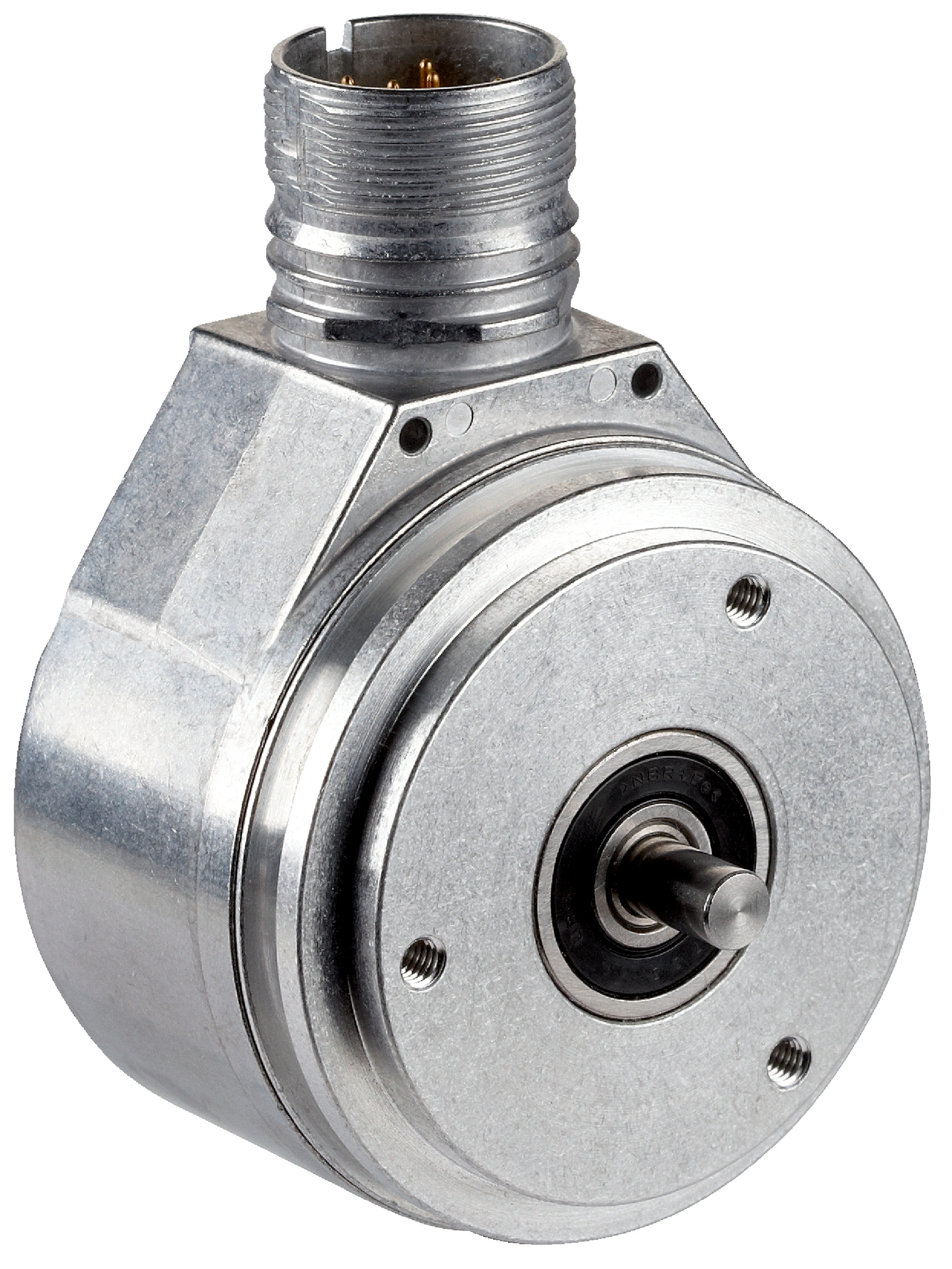

Incremental Encoder DFS60B-S1UA01500 | 1500 PPR | IP67 Rated | High Accuracy | by SICK
The Incremental Encoder DFS60B-S1UA01500 features 1,500 pulses per revolution and a robust aluminum die cast housing, making it ideal for industrial automation and motion control applications. With a high accuracy of ±0.05° error limits and an operating temperature range of -40°C to +100°C, this encoder ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS60B-S1UA01500 | 1500 PPR | IP67 Rated | High Accuracy | by SICK
Brand: SICK
SKU: 1066147
Alternatively Known As: Incremental rotary encoder, rotary encoder 1500 PPR, SICK DFS60B encoder, incremental shaft encoder
Technical Specifications
- Pulses per revolution: 1,500
- Measuring step: 90° electric / pulses per revolution
- Measuring step deviation: ±0.01°
- Error limits: ±0.05°
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Output frequency: ≤ 600 kHz
- Load current: ≤ 30 mA
- Operating current: 40 mA (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 4.5 to 5.5 V
- Shaft diameter: 6 mm with flat
- Shaft length: 10 mm
- Housing material: Aluminum die cast
- Operating speed: ≤ 9,000 min⁻¹
- Start-up torque: 0.5 Ncm
- Operating torque: 0.3 Ncm
- Permissible shaft loading: 80 N radial, 40 N axial
- Bearing lifetime: 3.6 x 10^10 revolutions
- Enclosure rating: IP67 housing side, IP65 shaft side
- Operating temperature range: -40°C to +100°C
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.3 kg
Key Features
- Incremental encoder with 1,500 pulses per revolution
- 6-channel TTL / RS-422 communication interface
- Solid shaft with 6 mm diameter and 10 mm length
- High accuracy with ±0.05° error limits and ±0.01° measuring step deviation
- Robust aluminum die cast housing with IP67 rating on housing side
- Operating temperature range from -40°C to +100°C
- Reverse polarity and short-circuit protection
- Low start-up torque of 0.5 Ncm and operating torque of 0.3 Ncm
- Bearing lifetime of 3.6 x 10^10 revolutions
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and calibration.
Applications
- Industrial automation for precise position and speed measurement
- Servo motor feedback systems
- Robotics and motion control
- Conveyor and material handling systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption electronics contribute to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK DFS60B-S1UA01500 incremental encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
