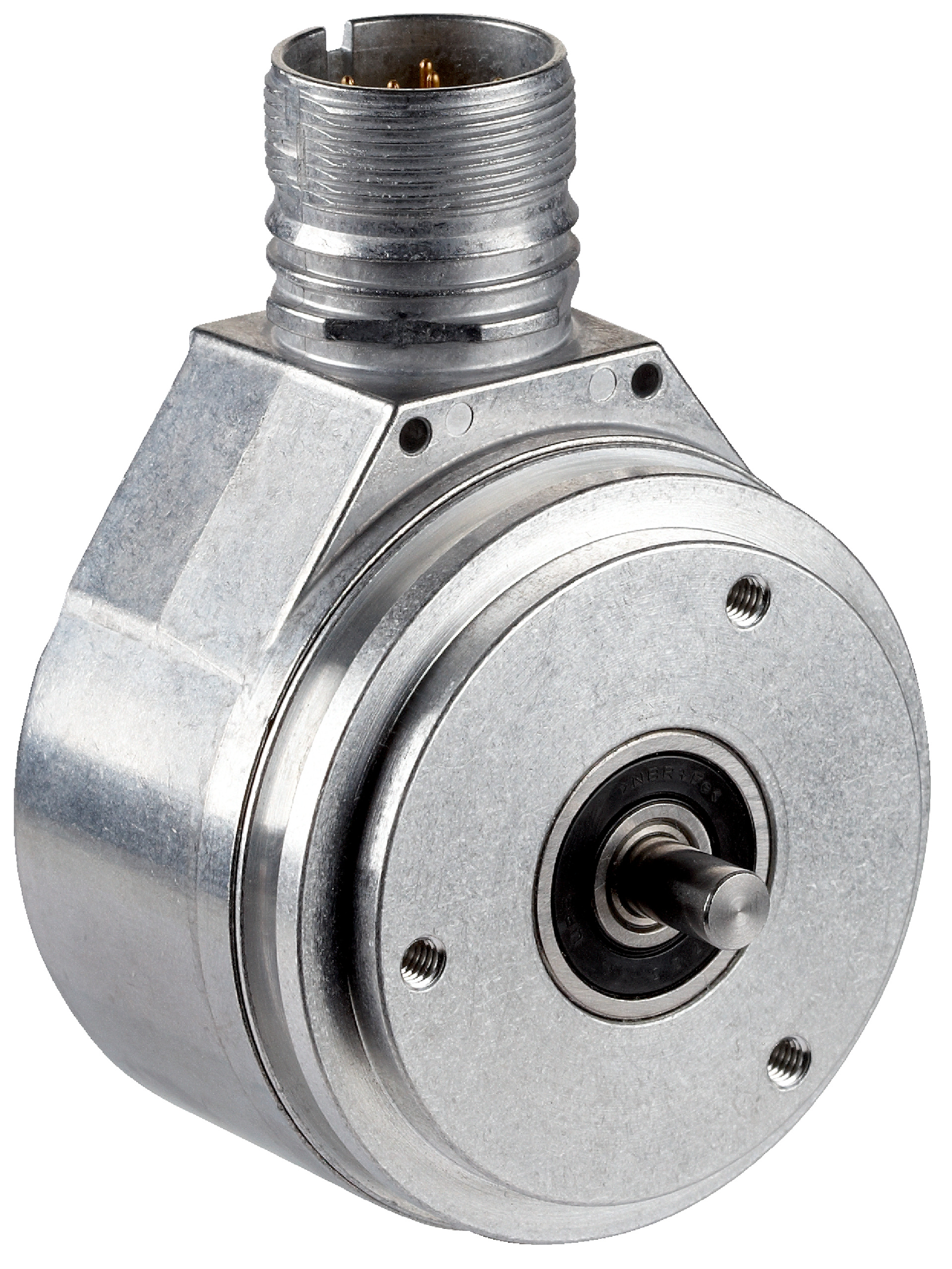

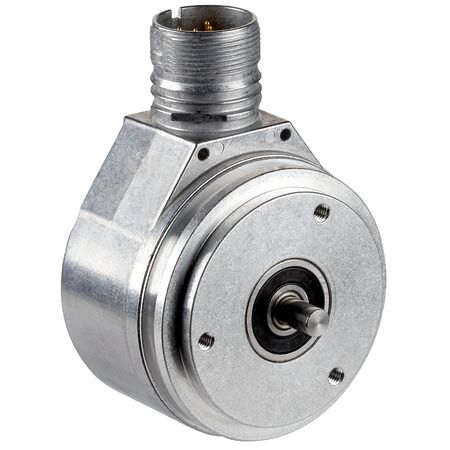

Incremental Encoder DFS60B-S1WA00064 | 64 Pulses/Rev | IP67 Rated | High Speed up to 9000 RPM | by SICK
The Incremental Encoder DFS60B-S1WA00064 delivers precise position and speed measurement with 64 pulses per revolution and a measuring step deviation of ±0.05°. Designed for industrial automation and robotics, it features a robust aluminum housing with an IP67 rating, ensuring durability in harsh environments. With a wide operating temperature range from –40 °C to +100 °C, this encoder is perfect for safety-critical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS60B-S1WA00064 | 64 Pulses/Rev | IP67 Rated | High Speed up to 9000 RPM | by SICK
Brand: SICK
SKU: 1108315
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder
Technical Specifications
- Pulses per revolution: 64
- Measuring step deviation: ±0.05°
- Output frequency: ≤ 600 kHz
- Load current: ≤ 30 mA
- Power consumption: ≤ 0.7 W (without load)
- Supply voltage: 4.5 to 32 V
- Connection type: Male connector, M23, 12-pin, radial
- Shaft diameter: 6 mm with flat
- Start up torque: 0.5 Ncm at +20 °C
- Operating torque: 0.3 Ncm at +20 °C
- Permissible shaft loading: 80 N radial, 40 N axial
- Bearing lifetime: 3.6 x 10^10 revolutions
- Enclosure rating: IP67 housing side, IP65 shaft side
- Operating temperature range: –40 °C to +100 °C
- Resistance to shocks: 70 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 50mm x 100mm x 50mm
- Weight: 0.3 kg
Key Features
- 64 pulses per revolution with ±0.05° error limits
- 6-channel incremental HTL / Push pull communication interface
- Solid shaft with 6 mm diameter and 10 mm length
- High operating speed up to 9,000 min⁻¹
- Robust aluminum die cast housing with IP67 rating on housing side
- Reverse polarity and short-circuit protection
- 0-set function via hardware pin for easy initialization
- Operating temperature range from –40 °C to +100 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and alignment.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Position and speed measurement in machinery
- Safety-related monitoring in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of ≤ 0.7 W enhances energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DFS60B-S1WA00064 incremental encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
