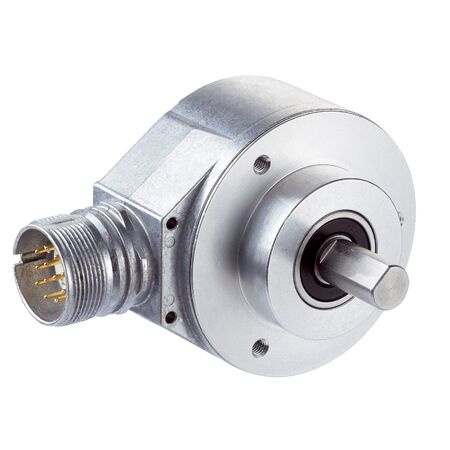

Incremental Encoder DFS60B-S4AA02000 | 2000 Pulses/Rev | IP67 Rated | Stainless Steel Shaft | by SICK
The Incremental Encoder DFS60B-S4AA02000 offers high precision with 2000 pulses per revolution, making it ideal for industrial automation and control systems. Built with a robust aluminum die cast housing and a solid stainless steel shaft, it ensures durability and reliability in demanding environments. With a wide operating temperature range from -40°C to +100°C, this encoder is perfect for robotics, motion control, and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS60B-S4AA02000 | 2000 Pulses/Rev | IP67 Rated | Stainless Steel Shaft | by SICK
Brand: SICK
SKU: 1037210
Alternatively Known As: Incremental rotary encoder, rotary encoder 10mm shaft, industrial encoder, SICK encoder DFS60B
Technical Specifications
- Pulses per revolution: 2,000
- Measuring step: 90° electric / pulses per revolution
- Measuring step deviation: ±0.01°
- Error limits: ±0.05°
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: ≤ 600 kHz
- Load current: ≤ 30 mA
- Operating current: 40 mA (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 4.5 to 5.5 V
- Reference signal: 1, positioned at 90° electric, logically gated with A and B
- Short-circuit protection: Yes
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum die cast
- Start-up torque: 0.5 Ncm at +20°C
- Operating torque: 0.3 Ncm at +20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -40°C to +100°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 70 g, 6 ms
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 60mm x 100mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 2,000 pulses per revolution
- Solid shaft with 10 mm diameter and stainless steel material
- Robust aluminum die cast housing with IP67 rating on housing side
- TTL / RS-422 incremental communication interface with 6 signal channels
- Short-circuit protected outputs
- Wide operating temperature range from -40°C to +100°C
- High mechanical durability with bearing lifetime of 3.6 x 10^10 revolutions
- Low start-up torque of 0.5 Ncm and operating torque of 0.3 Ncm
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor and material handling systems
- Machine tool feedback and positioning
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation with low current consumption
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60B-S4AA02000 Incremental Encoder is available for immediate purchase, ideal for industrial automation and control applications.
