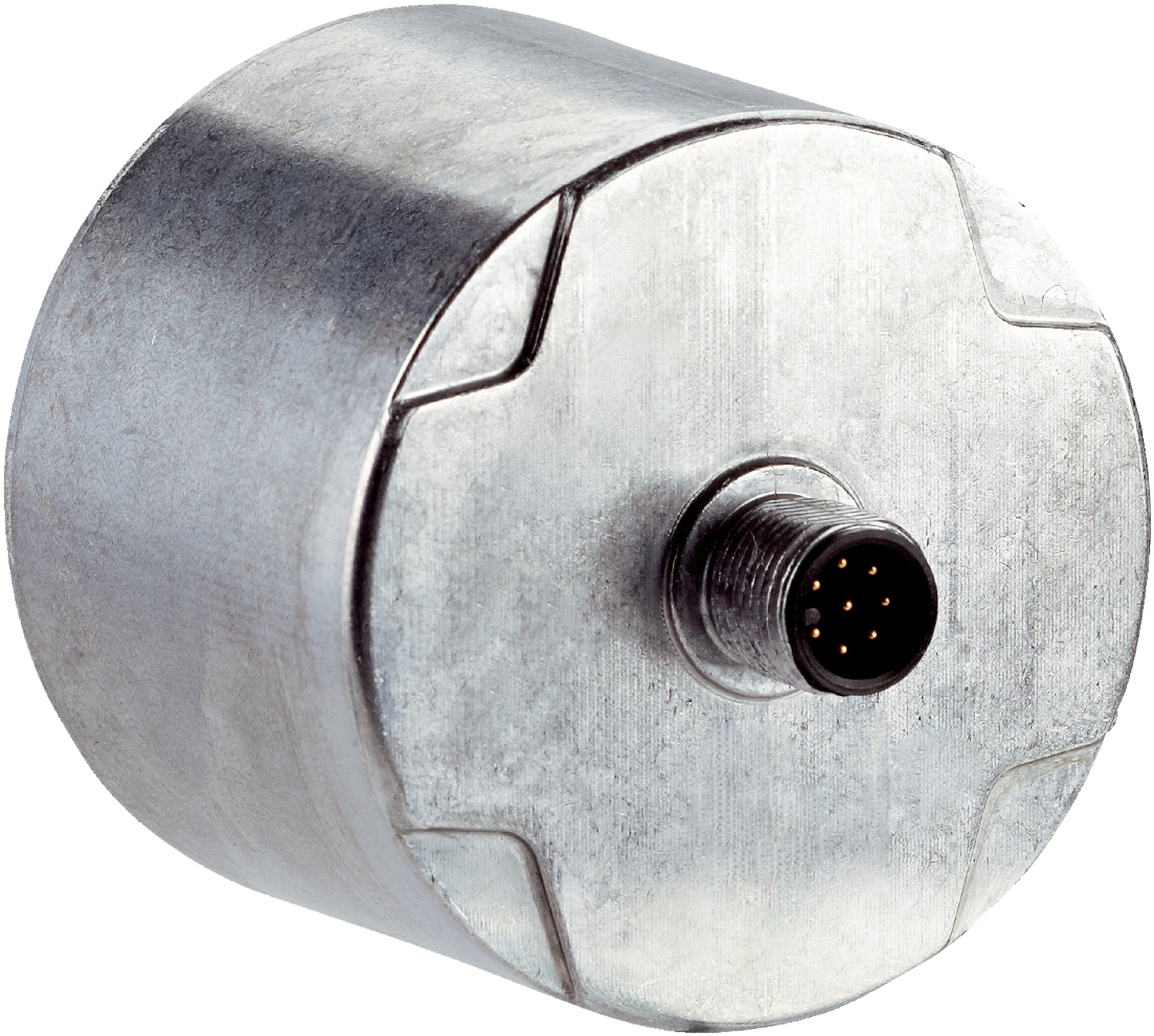

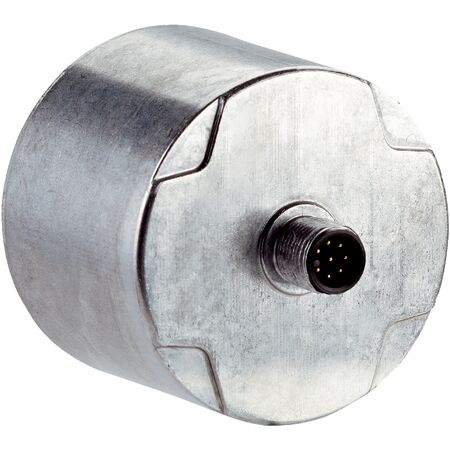

Incremental Encoder DFS60B-S4AD00025 | 25 Pulses/Rev | IP67 Rated | Stainless Steel Shaft | by SICK
The Incremental Encoder DFS60B-S4AD00025 is designed for high reliability in industrial automation, featuring 25 pulses per revolution and a robust IP67-rated aluminum housing. With a solid stainless steel shaft and a wide operating temperature range of -40°C to +100°C, this encoder is perfect for robotics, conveyor systems, and machine tool positioning, ensuring precise feedback and control in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS60B-S4AD00025 | 25 Pulses/Rev | IP67 Rated | Stainless Steel Shaft | by SICK
Brand: SICK
SKU: 1065467
Alternatively Known As: Incremental rotary encoder, rotary encoder 10mm shaft, SICK DFS60 encoder, industrial encoder
Technical Specifications
- Pulses per revolution: 25
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±0.08°
- Error limits: ±0.05°
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: ≤ 600 kHz
- Load current: ≤ 30 mA
- Operating current: 40 mA (without load)
- Connection type: Male connector, M12, 8-pin, axial
- Supply voltage: 4.5 to 5.5 V
- Reference signal: 1, positioned at 90° electric, logically gated with A and B
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum die cast
- Start up torque: 0.5 Ncm at +20 °C
- Operating torque: 0.3 Ncm at +20 °C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -40 °C to +100 °C
- Storage temperature range: -40 °C to +100 °C
- Resistance to shocks: 70 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.3 kg
Key Features
- High reliability with MTTFD of 300 years according to EN ISO 13849-1
- Incremental communication interface with TTL / RS-422
- 6-channel signal output with 25 pulses per revolution
- Solid shaft with 10 mm diameter and stainless steel material
- Robust aluminum die cast housing with IP67 rating on housing side
- Wide operating temperature range from -40°C to +100°C
- Short-circuit protection on outputs
- High operating speed up to 9,000 min⁻¹
- Low start-up torque of 0.5 Ncm and operating torque of 0.3 Ncm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder wiring and mounting to ensure proper operation and safety.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor systems and material handling
- Machine tool positioning and feedback
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation with low current consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK DFS60B-S4AD00025 Incremental Encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
