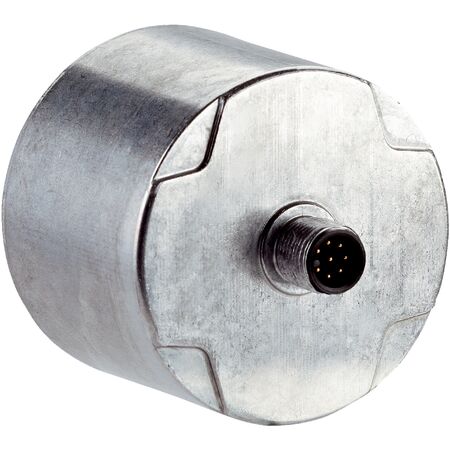

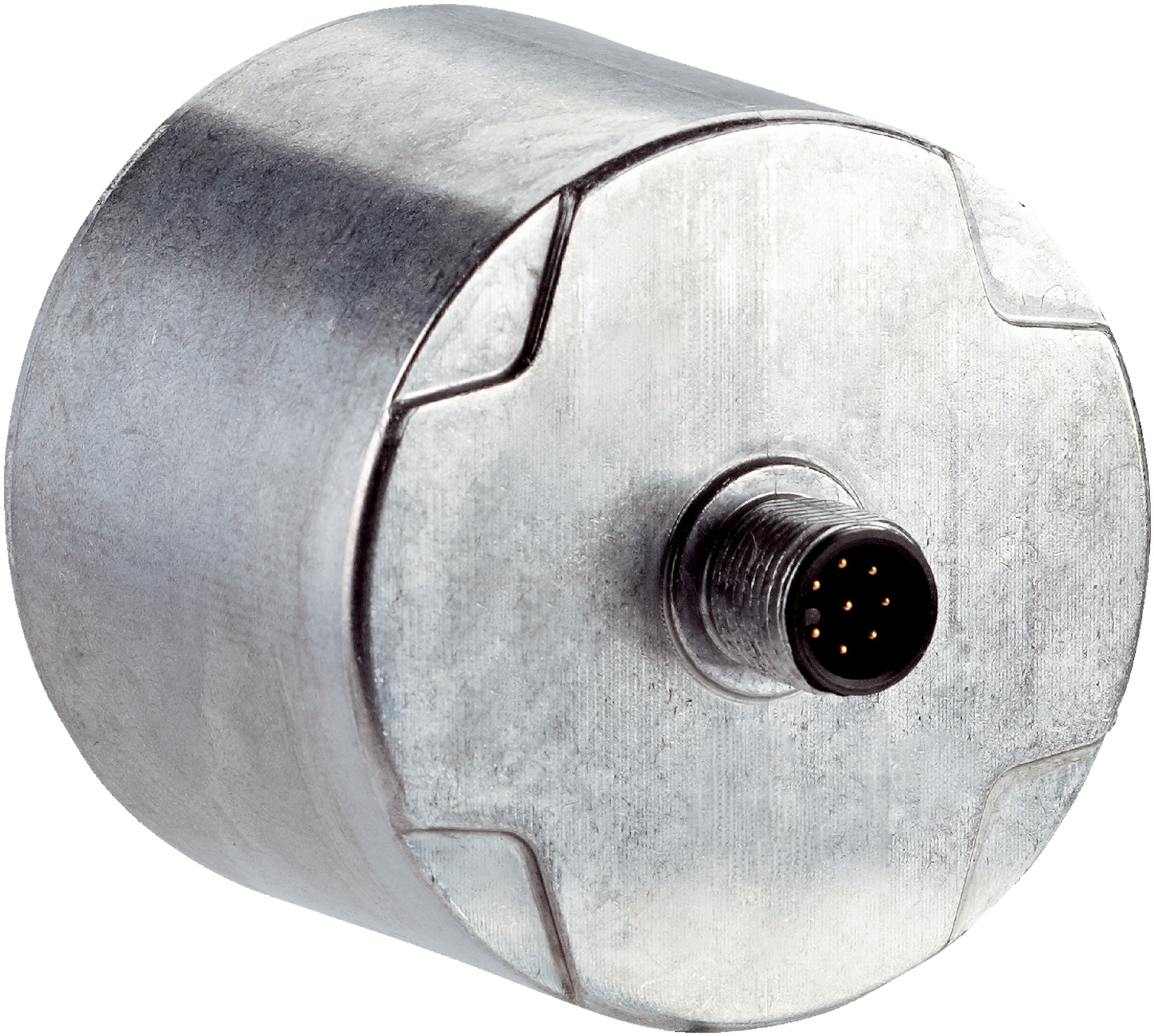

Incremental Encoder DFS60B-S4ED03142 | 3142 Pulses/Rev | IP67 & IP65 Rated | by SICK
The Incremental Encoder DFS60B-S4ED03142 offers high resolution with 3,142 pulses per revolution, making it ideal for precise position and speed measurement in industrial automation. Built for durability, it features a robust aluminum die cast housing and operates in extreme temperatures from -40°C to +100°C. With short-circuit and reverse polarity protection, this encoder is perfect for robotics, motion control systems, and conveyor applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS60B-S4ED03142 | 3142 Pulses/Rev | IP67 & IP65 Rated | by SICK
Brand: SICK
SKU: 1073009
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder
Technical Specifications
- Pulses per revolution: 3,142
- Measuring step: 90° electric / pulses per revolution
- Measuring step deviation: ±0.01°
- Error limits: ±0.05°
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: ≤ 600 kHz
- Load current: ≤ 30 mA
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Male connector, M12, 8-pin, axial
- Supply voltage: 10 to 32 V
- Reference signal: 1, positioned at 90° electric, logically gated with A and B
- Reverse polarity and short-circuit protection: Yes
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum die cast
- Start up torque: 0.5 Ncm at +20°C
- Operating torque: 0.3 Ncm at +20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP67 housing side, IP65 shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -40°C to +100°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 70 g, 6 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 90mm x 58mm
- Weight: 0.3 kg
Key Features
- High resolution with 3,142 pulses per revolution
- Solid shaft with 10 mm diameter and flat for secure mounting
- Robust aluminum die cast housing and flange
- IP67 rated housing side and IP65 shaft side for harsh environments
- Operating temperature range from -40°C to +100°C
- Short-circuit and reverse polarity protection
- 6-channel incremental HTL / Push pull interface
- Low power consumption ≤ 0.5 W without load
- High mechanical durability with bearing lifetime of 3.6 x 10^10 revolutions
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and mechanical mounting for optimal performance and safety.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor and material handling systems
- Machine tool feedback and control
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60B-S4ED03142 Incremental Encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
