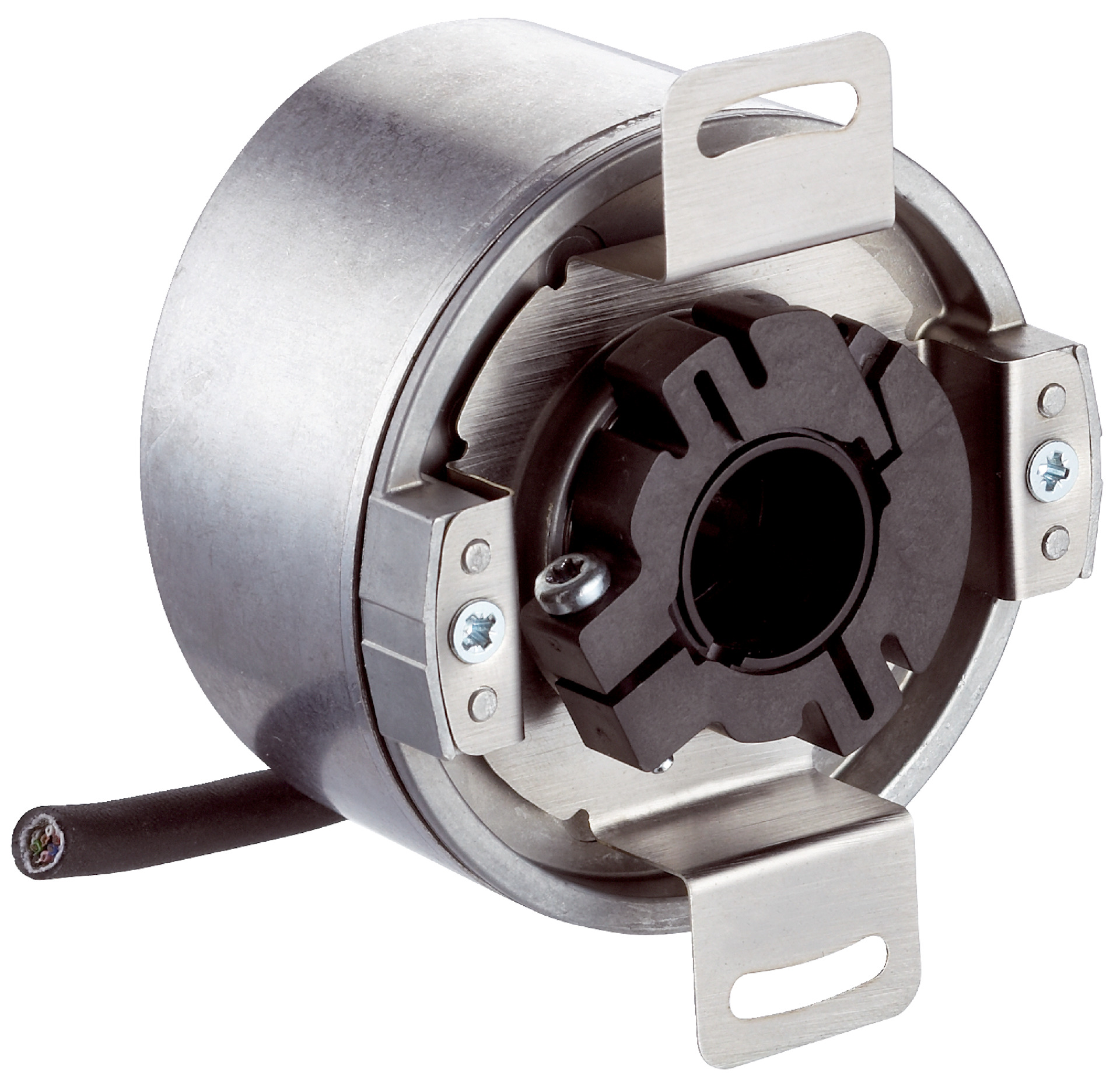

Incremental Encoder DFS60B-T5EL00500 | 500 Pulses/Rev | ±0.01° Accuracy | IP65 Rated | by SICK
The Incremental Encoder DFS60B-T5EL00500 delivers exceptional performance with 500 pulses per revolution and a measuring step deviation of just ±0.01°. Designed for industrial automation, this encoder features a robust aluminum housing and operates in extreme temperatures from -40 °C to +100 °C. Ideal for robotics and conveyor systems, it ensures precise position and speed measurement, making it a reliable choice for safety-critical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS60B-T5EL00500 | 500 Pulses/Rev | ±0.01° Accuracy | IP65 Rated | by SICK
Brand: SICK
SKU: 1078838
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder, SICK DFS60 encoder
Technical Specifications
- Pulses per revolution: 500
- Measuring step: 90°, electric/pulses per revolution
- Measuring step deviation: ±0.01°
- Error limits: ±0.05°
- Communication interface: Incremental HTL / Push-pull
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: ≤ 600 kHz
- Load current: ≤ 30 mA
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Cable, 8-wire, universal, 3 m
- Supply voltage: 10 to 32 V
- Reference signal: 1, 90° electric, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 12 mm front clamp
- Shaft material: Plastic
- Flange material: Aluminum
- Housing material: Aluminum die cast
- Start up torque: 0.8 Ncm (+20 °C)
- Operating torque: 0.6 Ncm (+20 °C)
- Permissible movement static: ±0.3 mm radial, ±0.5 mm axial
- Permissible movement dynamic: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: ≤ 6,000 min⁻¹
- Moment of inertia of rotor: 40 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP65 housing and cable connection, IP65 shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -40 °C to +100 °C
- Storage temperature range: -40 °C to +100 °C
- Resistance to shocks: 70 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 100mm x 60mm
- Weight: 0.2 kg
Key Features
- Incremental encoder with 500 pulses per revolution
- Through hollow shaft mechanical design with 12 mm shaft diameter
- High accuracy with measuring step deviation ±0.01° and error limits ±0.05°
- 6-channel HTL / Push-pull communication interface
- Robust aluminum die cast housing and flange
- Operating temperature range from -40 °C to +100 °C
- IP65 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protection
- Low power consumption ≤ 0.5 W without load
- High bearing lifetime of 3.6 x 10^10 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper alignment and connection.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and conveyor systems requiring accurate feedback
- Machine tools and packaging machinery
- Safety-related applications with high reliability requirements
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60B-T5EL00500 incremental encoder is available for immediate purchase, ideal for industrial automation and safety-related applications requiring precise position feedback.
