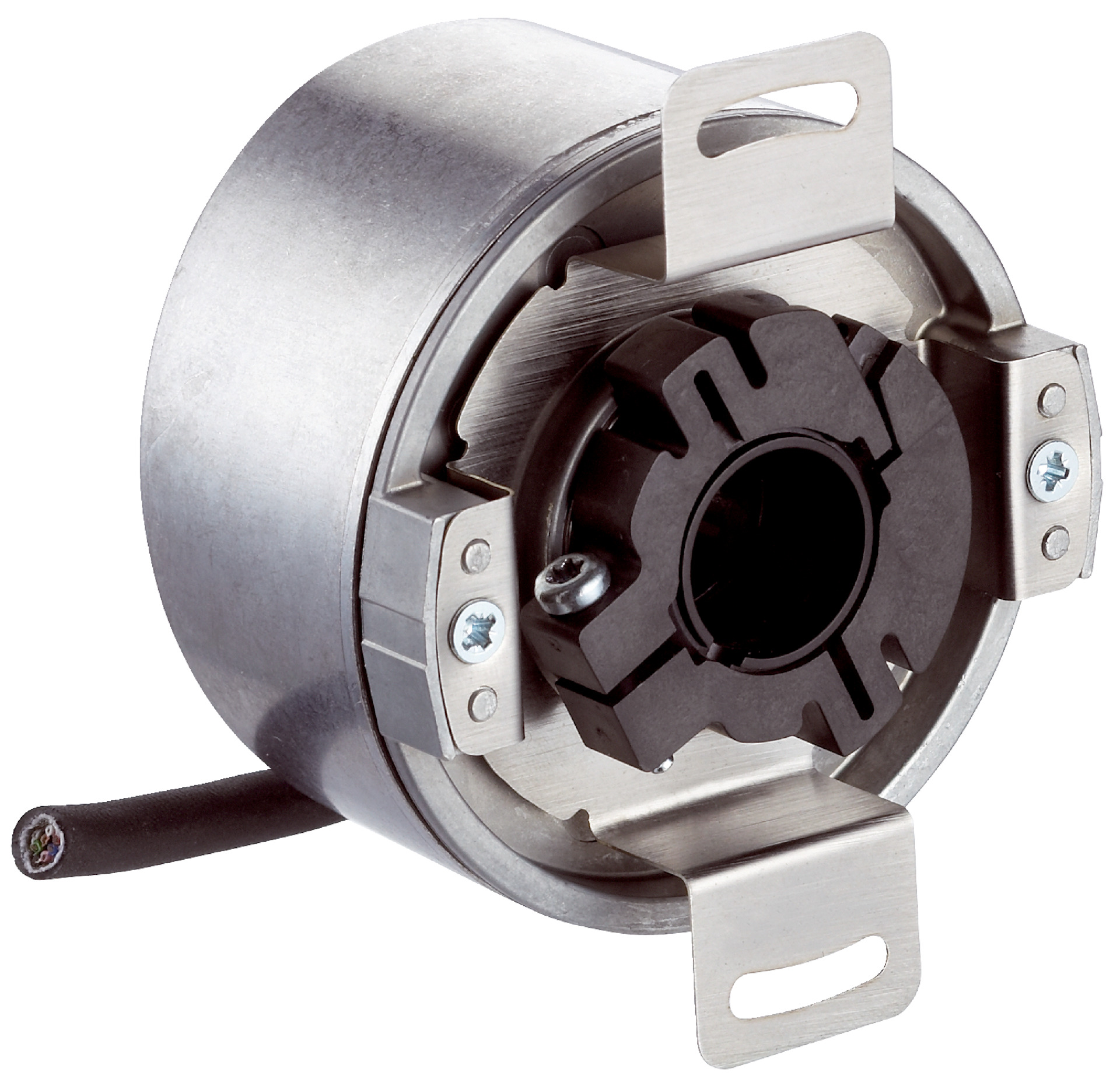

Incremental Encoder DFS60B-T5EM02048 | 2048 Pulses/Rev | IP65 Protection | by SICK
The Incremental Encoder DFS60B-T5EM02048 offers high resolution with 2048 pulses per revolution, making it ideal for industrial automation and precise motion control applications. With a robust aluminum die cast housing and IP65 protection, it ensures durability in harsh environments. Designed for reliable performance, it features a 6-channel incremental HTL communication interface and operates within a wide temperature range of -40 °C to +100 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS60B-T5EM02048 | 2048 Pulses/Rev | IP65 Protection | by SICK
Brand: SICK
SKU: 1066724
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder
Technical Specifications
- Pulses per revolution: 2048
- Measuring step: 90°, electric/pulses per revolution
- Measuring step deviation: ±0.008°
- Error limits: ±0.05°
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: ≤ 600 kHz
- Load current: ≤ 30 mA
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Cable, 8-wire, universal, 5 m
- Supply voltage: 10 to 32 V
- Reference signal: 1, 90° electric, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 12 mm front clamp
- Shaft material: Plastic
- Flange material: Aluminum
- Housing material: Aluminum die cast
- Start up torque: 0.8 Ncm at +20 °C
- Operating torque: 0.6 Ncm at +20 °C
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: ≤ 6000 min⁻¹
- Moment of inertia of rotor: 40 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP65 housing and shaft side
- Operating temperature range: -40 °C to +100 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 70 g, 6 ms
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 60mm x 48mm x 60mm
- Weight: 0.2 kg
Key Features
- High resolution with 2048 pulses per revolution
- 6-channel incremental HTL / Push pull communication interface
- Robust aluminum die cast housing with IP65 protection
- Through hollow shaft design with 12 mm plastic shaft
- Operating temperature range from -40 °C to +100 °C
- Reverse polarity and short-circuit protection
- Low power consumption ≤ 0.5 W without load
- High mechanical durability with bearing lifetime of 3.6 x 10^10 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder wiring and mounting to ensure proper operation and safety.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor systems and packaging machinery
- Machine tool feedback and control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage in automation systems
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60B-T5EM02048 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
