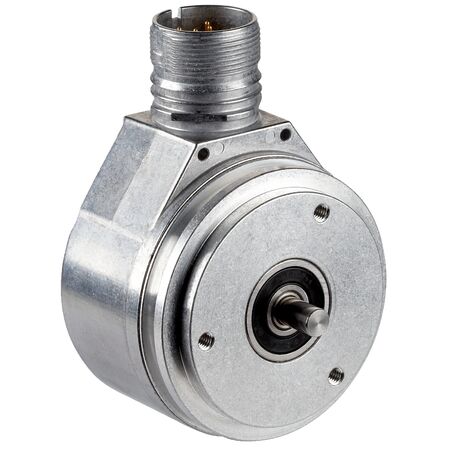

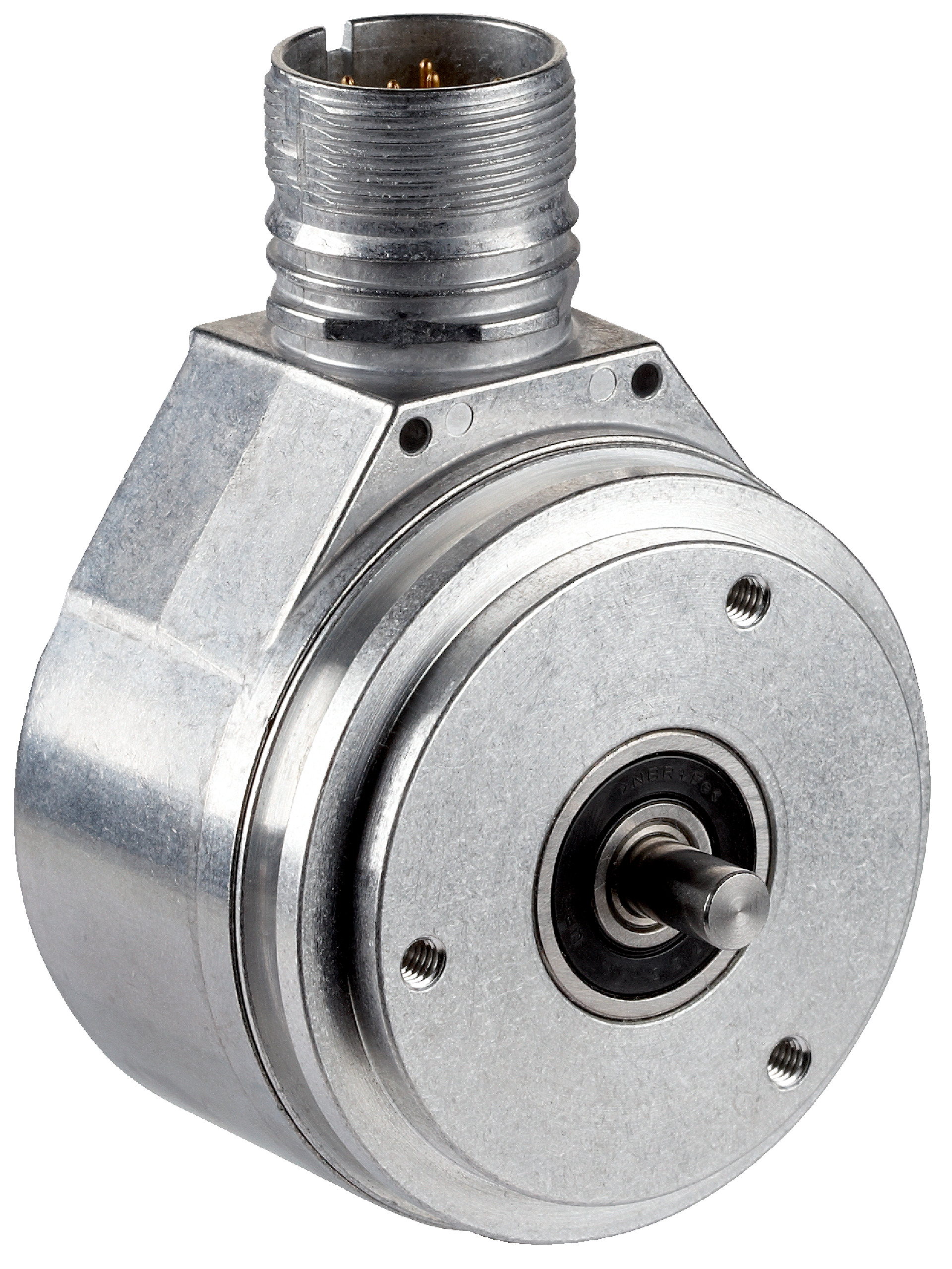

Incremental Encoder DFS60E-S1EA02048 | 2048 PPR | IP67 & IP65 Rated | by SICK
The Incremental Encoder DFS60E-S1EA02048 offers high precision with 2048 pulses per revolution, making it ideal for industrial automation and robotics. Built with a robust aluminum die cast housing and solid shaft design, it ensures reliable performance in demanding environments. With an operating speed of up to 9,000 min⁻¹ and IP67/IP65 protection, this encoder is perfect for precise position and speed measurement in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS60E-S1EA02048 | 2048 PPR | IP67 & IP65 Rated | by SICK
Brand: SICK
SKU: 1058373
Alternatively Known As: Incremental rotary encoder, rotary encoder 2048 PPR, SICK rotary encoder, DFS60E encoder, industrial position encoder
Technical Specifications
- Pulses per revolution: 2,048
- Measuring step deviation: ±0.15°
- Error limits: ±0.3°
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 30 mA
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 10 to 32 V
- Reference signal: 1, positioned at 90° electric
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Solid shaft, Servo flange
- Shaft diameter: 6 mm with flat
- Shaft length: 10 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum die cast
- Start up torque: 0.5 Ncm at +20 °C
- Operating torque: 0.3 Ncm at +20 °C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP67 housing side, IP65 shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: 0 °C to +85 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 50 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 90mm x 58mm
- Weight: 0.3 kg
Key Features
- High resolution with 2,048 pulses per revolution
- Solid shaft with 6 mm diameter and 10 mm length
- Robust aluminum die cast housing and flange
- IP67 rated enclosure on housing side and IP65 on shaft side
- Reverse polarity and short-circuit protection
- Operating speed up to 9,000 min⁻¹
- Low start-up torque of 0.5 Ncm
- 6-channel incremental HTL / Push pull interface
- Operating temperature range from 0 °C to +85 °C
- Shock resistance up to 50 g and vibration resistance up to 20 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and alignment.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and servo motor feedback
- Conveyor systems and material handling
- Machine tool control and monitoring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of ≤ 0.5 W minimizes energy use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60E-S1EA02048 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
