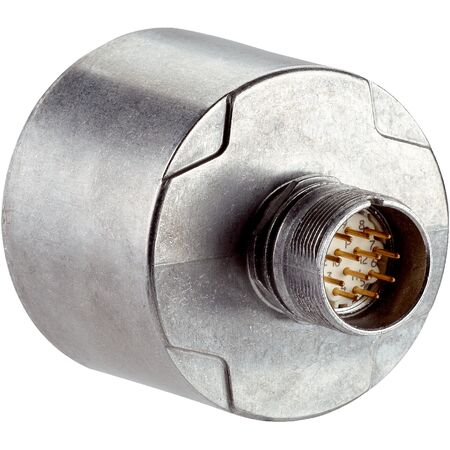

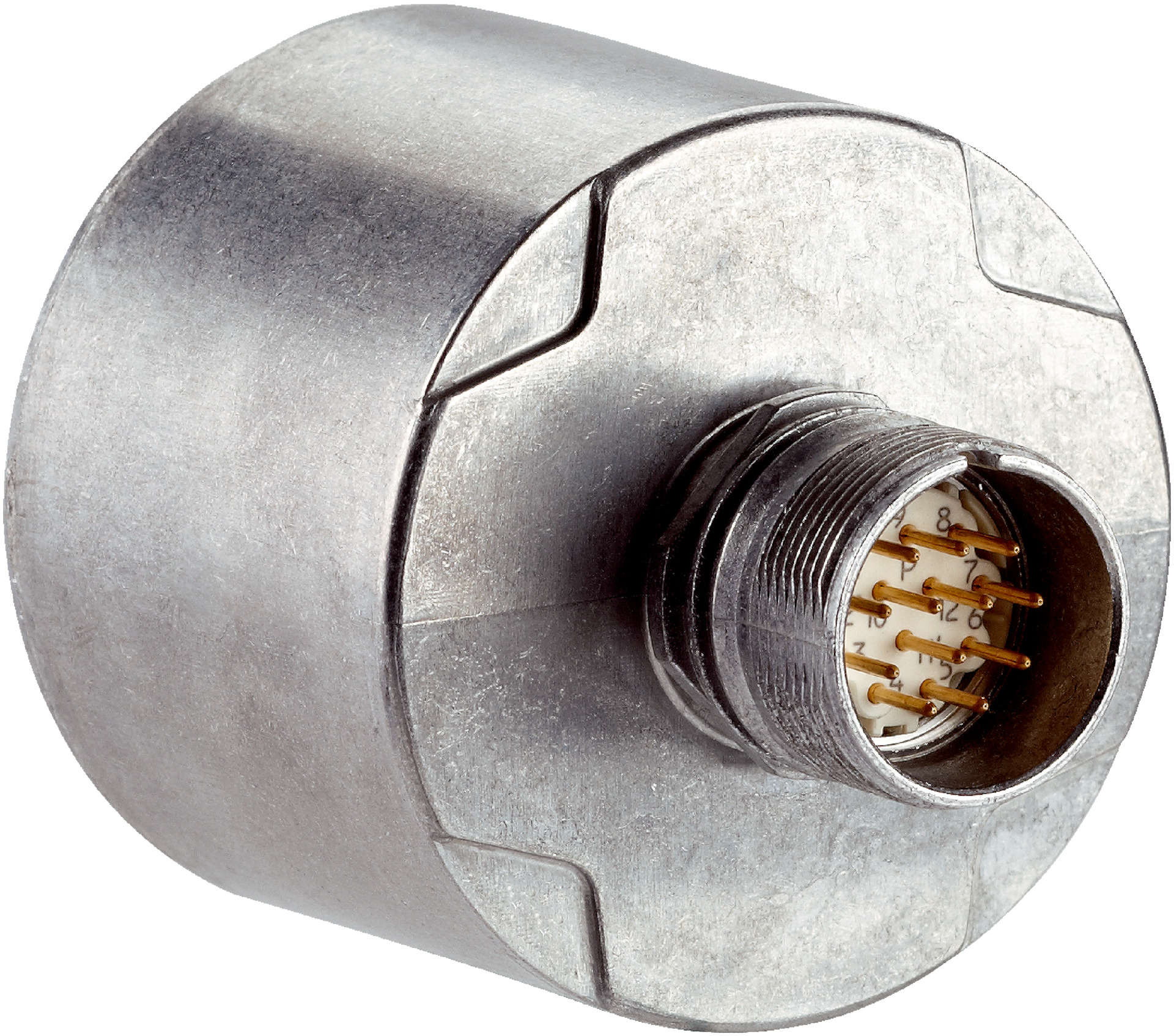

Incremental Encoder DFS60E-S1EB02048 | 2048 PPR | IP67 Rated | Stainless Steel Shaft | by SICK
The Incremental Encoder DFS60E-S1EB02048 offers high precision with 2048 pulses per revolution, making it ideal for industrial automation and robotics. Built with a robust aluminum die cast housing and a stainless steel solid shaft, it ensures durability and reliability in demanding environments. With a wide operating temperature range and advanced protection features, this encoder is perfect for precise position and speed measurement in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS60E-S1EB02048 | 2048 PPR | IP67 Rated | Stainless Steel Shaft | by SICK
Brand: SICK
SKU: 1068471
Alternatively Known As: Incremental rotary encoder, rotary encoder 2048 PPR, SICK encoder DFS60E, industrial position encoder
Technical Specifications
- Pulses per revolution: 2,048
- Measuring step: 90°, electric/pulses per revolution
- Measuring step deviation: ±0.15°
- Error limits: ±0.3°
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 30 mA
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Male connector, M23, 12-pin, axial
- Supply voltage: 10 to 32 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Solid shaft, servo flange
- Shaft diameter: 6 mm with flat
- Shaft length: 10 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum die cast
- Start-up torque: 0.5 Ncm at +20 °C
- Operating torque: 0.3 Ncm at +20 °C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP67 housing side, IP65 shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: 0 °C to +85 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 50 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 90mm x 58mm
- Weight: 0.3 kg
Key Features
- High resolution with 2,048 pulses per revolution
- Solid shaft with stainless steel material and servo flange
- Robust aluminum die cast housing with IP67 rating on housing side
- 6-channel incremental HTL / Push pull communication interface
- Reverse polarity and short-circuit protection
- Operating speed up to 9,000 min⁻¹
- Low start-up torque of 0.5 Ncm and operating torque of 0.3 Ncm
- Wide operating temperature range from 0 °C to +85 °C
- High mechanical durability with bearing lifetime of 3.6 x 10^10 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and alignment.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and servo motor feedback
- Conveyor systems and material handling
- Machine tool control and monitoring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of ≤ 0.5 W enhances energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60E-S1EB02048 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
