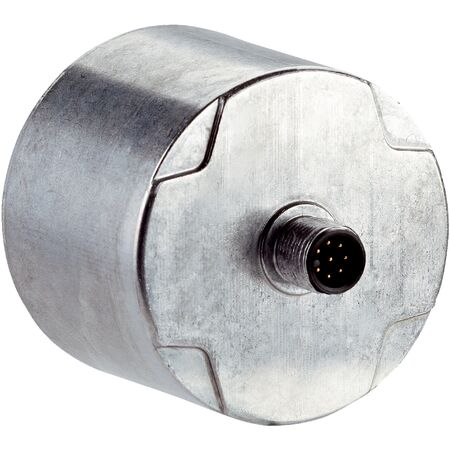

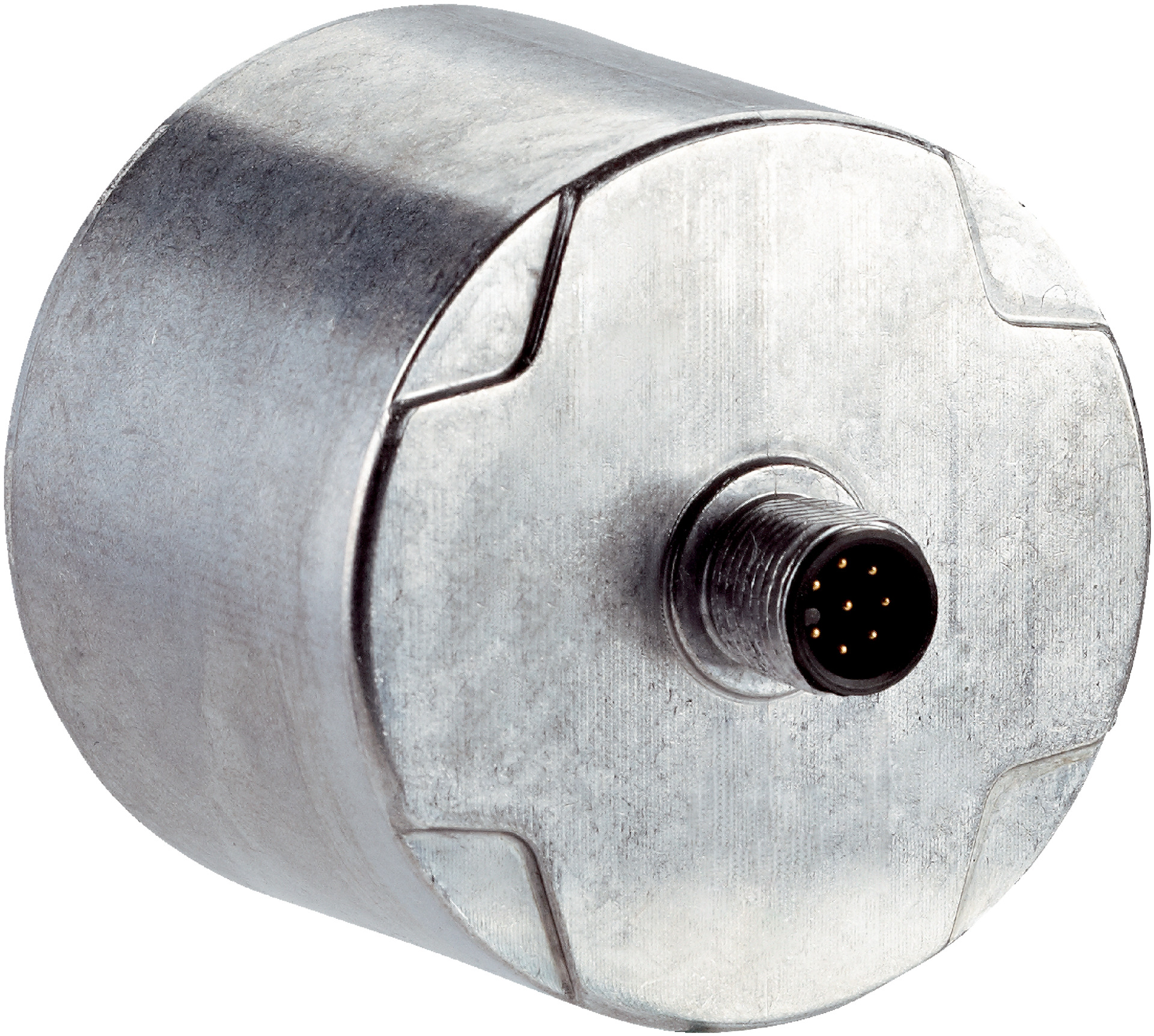

Incremental Encoder DFS60E-S4ED01000 | 1000 Pulses/Rev | IP67 Rated | High Speed 9000 RPM | by SICK
The Incremental Encoder DFS60E-S4ED01000 features 1,000 pulses per revolution and a robust IP67 rated housing, making it ideal for industrial automation and motion control applications. With a high operating speed of up to 9,000 min⁻¹ and a solid 10 mm diameter shaft, this encoder ensures precise position and speed measurement, perfect for robotics, conveyor systems, and machine tool feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS60E-S4ED01000 | 1000 Pulses/Rev | IP67 Rated | High Speed 9000 RPM | by SICK
Brand: SICK
SKU: 1058739
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder
Technical Specifications
- Pulses per revolution: 1,000
- Measuring step: 90°, electric/pulses per revolution
- Measuring step deviation: ±0.2°
- Error limits: ±0.3°
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 30 mA
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Male connector, M12, 8-pin, axial
- Supply voltage: 10 to 32 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum die cast
- Start up torque: 0.5 Ncm at +20 °C
- Operating torque: 0.3 Ncm at +20 °C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP67 housing side, IP65 shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: 0 °C to +85 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 50 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 80mm x 58mm
- Weight: 0.3 kg
Key Features
- Incremental encoder with 1,000 pulses per revolution
- 6-channel HTL / Push pull communication interface
- Solid shaft with 10 mm diameter and flat
- High operating speed up to 9,000 min⁻¹
- IP67 rated housing for robust protection
- Reverse polarity and short-circuit protection
- Low start-up torque of 0.5 Ncm
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and calibration.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor systems and packaging machinery
- Machine tool feedback and control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable aluminum die-cast housing extends product life reducing waste
- Low power consumption of ≤ 0.5 W minimizes energy use
- High reliability reduces downtime and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DFS60E-S4ED01000 Incremental Encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
