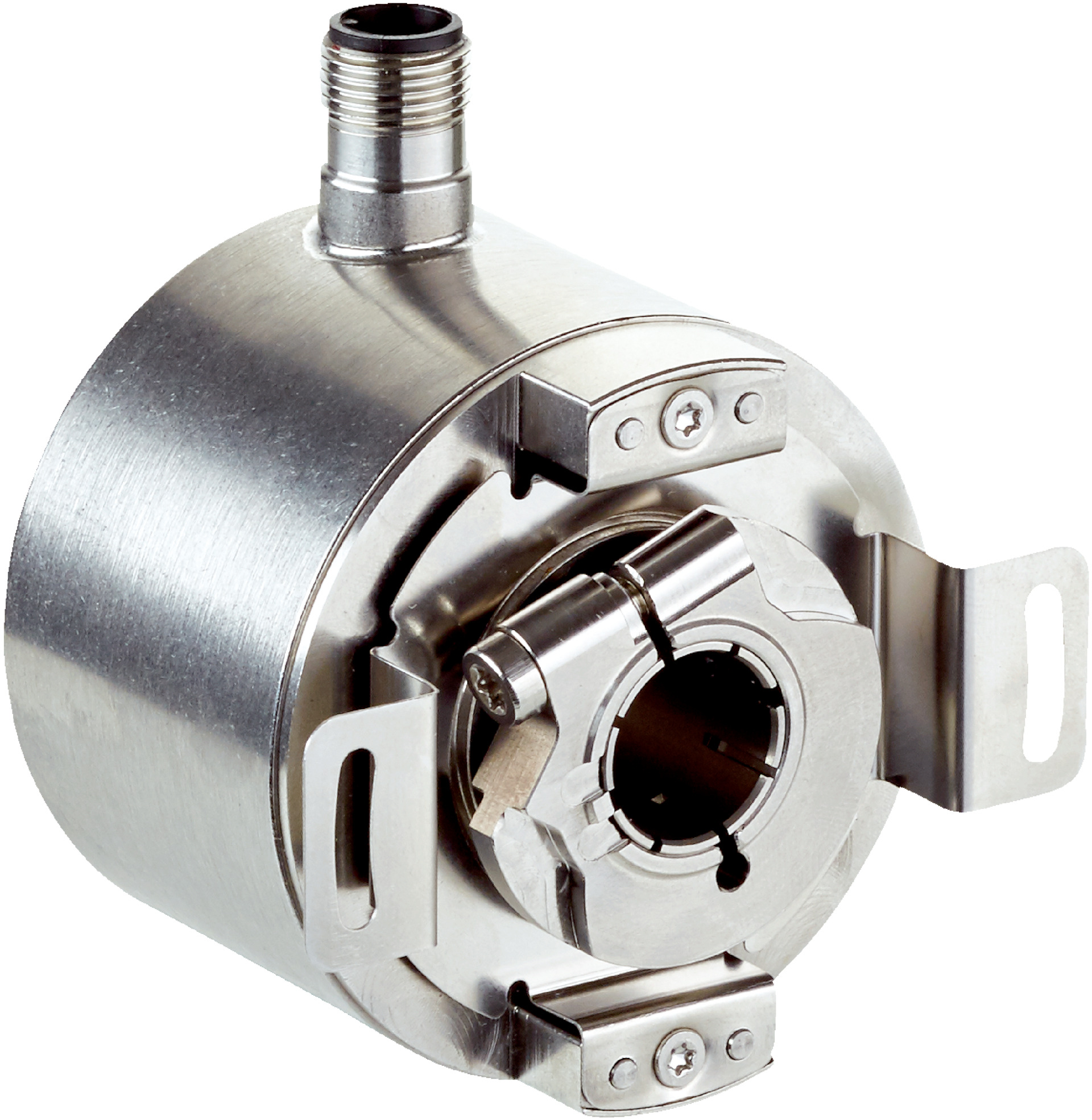

Incremental Encoder DFS60I-BDAC20000 | 20000 Pulses/Rev | IP67 Rated | Stainless Steel Housing | by SICK
The Incremental Encoder DFS60I-BDAC20000 offers high precision with 20,000 pulses per revolution, making it ideal for industrial automation and robotics. Built with a robust stainless steel housing and an IP67 rating, it ensures durability and reliability in harsh environments. Perfect for applications requiring precise position and speed measurement, this encoder is designed for seamless integration into motion control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS60I-BDAC20000 | 20000 Pulses/Rev | IP67 Rated | Stainless Steel Housing | by SICK
Brand: SICK
SKU: 1111672
Alternatively Known As: Incremental rotary encoder, high-resolution encoder, rotary position sensor, shaft encoder
Technical Specifications
- Pulses per revolution: 20,000
- Measuring step: 90°, electric/pulses per revolution
- Measuring step deviation: ±0.0015°
- Error limits: ±0.03°
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: ≤ 820 kHz
- Load current: ≤ 30 mA
- Operating current: 40 mA (without load)
- Load resistance: ≥ 120 Ω
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 4.5 to 5.5 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Blind hollow shaft
- Shaft diameter: 10 mm front clamp
- Shaft, flange, and housing material: Stainless steel V2A
- Start-up torque: 1 Ncm at +20°C
- Operating torque: 0.5 Ncm at +20°C
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.05 mm radial, ±0.01 mm axial
- Operating speed: ≤ 6,000 min⁻¹
- Moment of inertia of rotor: 40 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 (housing and shaft side)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -40°C to +100°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 10 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 58mm x 58mm
- Weight: 0.5 kg
Key Features
- High resolution with 20,000 pulses per revolution
- Robust stainless steel V2A housing, shaft, and flange
- Blind hollow shaft design with 10 mm front clamp shaft diameter
- IP67 rated enclosure for protection against dust and water
- TTL / RS-422 incremental communication interface with 6 signal channels
- Reverse polarity and short-circuit protection
- Operating temperature range from -40°C to +100°C
- Low start-up torque of 1 Ncm and operating torque of 0.5 Ncm
- High mechanical reliability with bearing lifetime of 3.6 x 10^10 revolutions
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor and material handling systems
- Machine tool feedback and control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel construction extends product lifespan, reducing waste
- Low power consumption electronics contribute to energy efficiency
- High reliability reduces maintenance and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60I-BDAC20000 Incremental Encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
