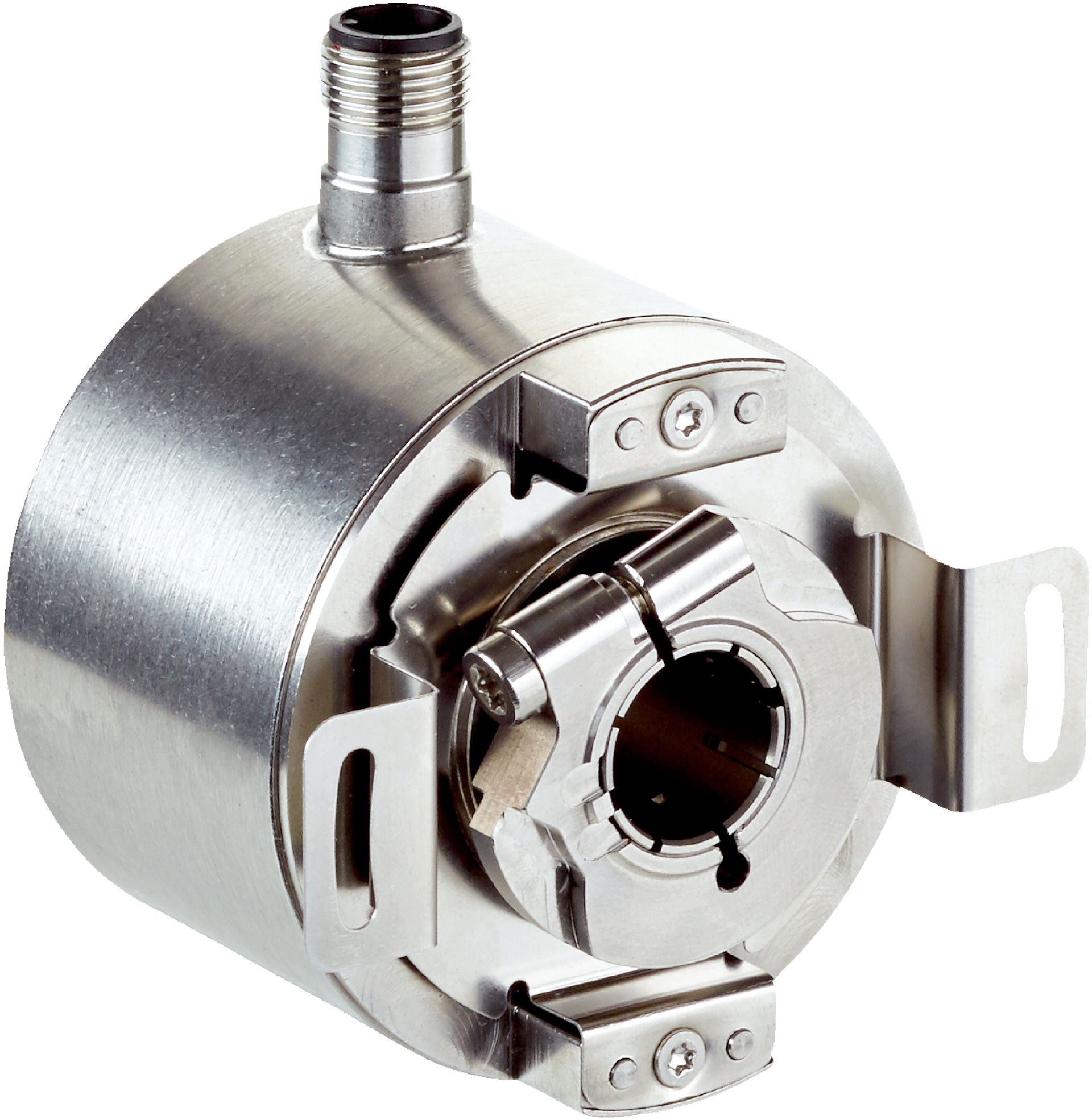

Incremental Encoder DFS60I-BDEC32000 | 32000 Pulses/Rev | IP67 Rated | Stainless Steel Housing | by SICK
The Incremental Encoder DFS60I-BDEC32000 offers high precision with 32,000 pulses per revolution, making it ideal for industrial automation and robotics applications. Built with a robust stainless steel housing and an IP67 rating, this encoder ensures durability and reliability in harsh environments. With a fast initialization time of 40 ms and a wide operating temperature range from -40 °C to +100 °C, it’s perfect for machine tool positioning and conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS60I-BDEC32000 | 32000 Pulses/Rev | IP67 Rated | Stainless Steel Housing | by SICK
Brand: SICK
SKU: 1140284
Alternatively Known As: Incremental rotary encoder, high-resolution encoder, industrial encoder, rotary position sensor
Technical Specifications
- Pulses per revolution: 32,000
- Measuring step deviation: ±0.0015°
- Error limits: ±0.03°
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: ≤ 820 kHz
- Load current: ≤ 30 mA
- Operating current: 40 mA (without load)
- Power consumption: ≤ 0.5 W (without load)
- Load resistance: ≥ 120 Ω
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 10 to 32 V
- Reference signal: 1, positioned at 90° electric, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Blind hollow shaft
- Shaft diameter: 10 mm front clamp
- Shaft material: Stainless steel V2A
- Flange material: Stainless steel V2A
- Housing material: Stainless steel V2A
- Start up torque: 1 Ncm (+20 °C)
- Operating torque: 0.5 Ncm (+20 °C)
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.05 mm radial, ±0.01 mm axial
- Operating speed: ≤ 6,000 min⁻¹
- Moment of inertia of rotor: 40 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP67 (housing and shaft side)
- Operating temperature range: –40 °C to +100 °C
- Storage temperature range: –40 °C to +100 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 10 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.5 kg
Key Features
- High resolution with 32,000 pulses per revolution
- Incremental HTL / Push pull communication interface
- 6-channel signal output with 40 ms initialization time
- Robust stainless steel V2A housing, flange, and shaft
- Blind hollow shaft design with 10 mm front clamp shaft diameter
- Operating speed up to 6,000 min⁻¹
- IP67 rated enclosure for protection against dust and water
- Reverse polarity and short-circuit protection
- Wide operating temperature range from –40 °C to +100 °C
- Low operating torque of 0.5 Ncm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Machine tool positioning
- Conveyor systems
- Safety-related monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction extends product lifespan reducing waste
- Low power consumption of ≤ 0.5 W minimizes energy usage
- High reliability reduces maintenance and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60I-BDEC32000 Incremental Encoder is available for immediate purchase, ideal for industrial automation, robotics, and safety-related applications.
