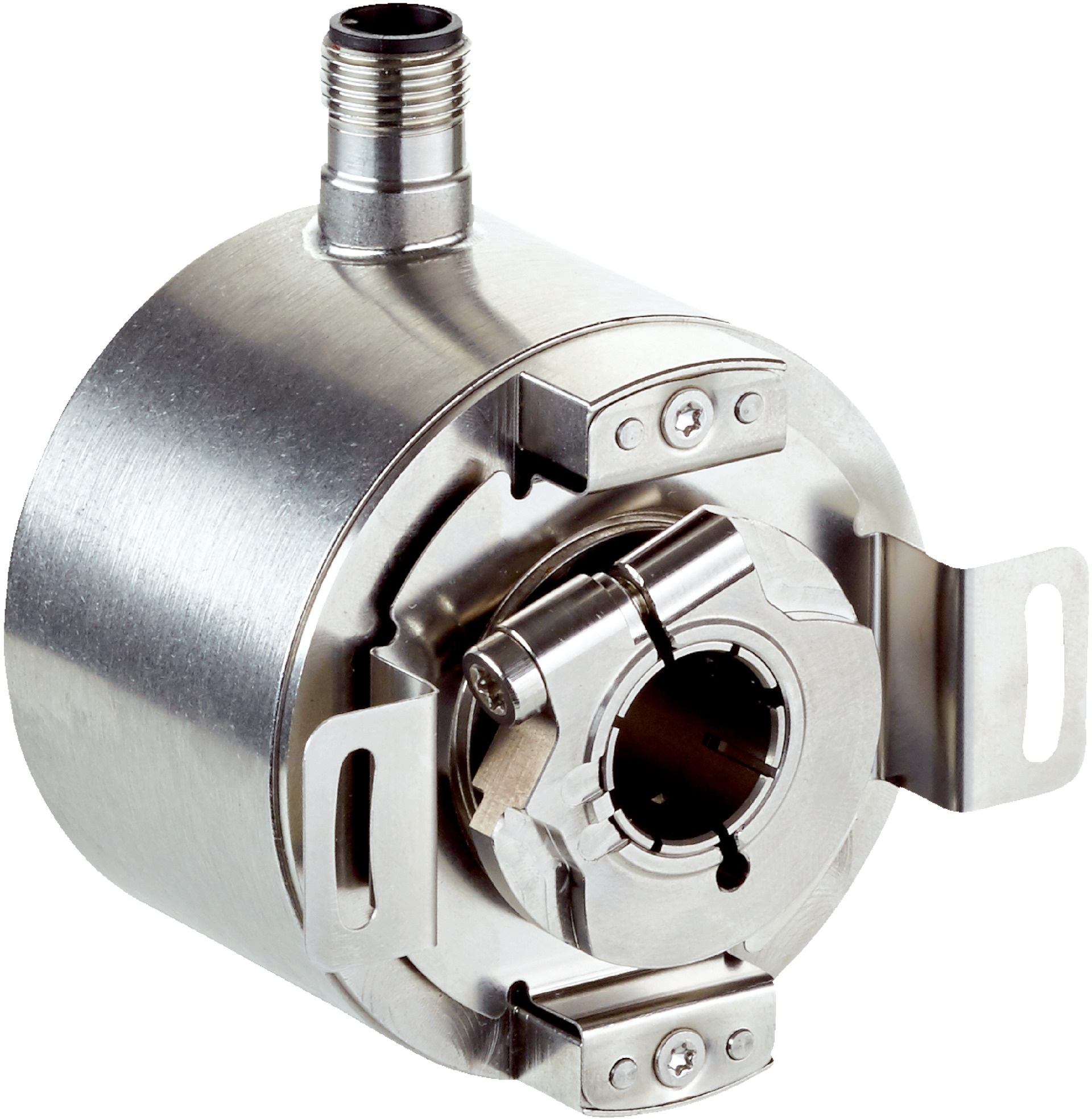

Incremental Encoder DFS60I-BDMC65536 | 65,536 Pulses/Rev | IP67 Rated | Stainless Steel Housing | by SICK
The Incremental Encoder DFS60I-BDMC65536 offers high precision with 65,536 pulses per revolution, making it ideal for industrial automation and robotics. With a robust IP67 rated stainless steel housing, it ensures durability in harsh environments. Designed for reliable position and speed measurement, this encoder features a 6-channel incremental communication interface and operates effectively in temperatures ranging from -40°C to +100°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS60I-BDMC65536 | 65,536 Pulses/Rev | IP67 Rated | Stainless Steel Housing | by SICK
Brand: SICK
SKU: 1083941
Alternatively Known As: Incremental rotary encoder, high-resolution encoder, rotary position sensor, shaft encoder
Technical Specifications
- Pulses per revolution: 65,536
- Measuring step deviation: ±0.0015°
- Error limits: ±0.03°
- Communication interface: Incremental TTL/HTL, 6-channel
- Output frequency: ≤820 kHz
- Load current: ≤30 mA
- Operating current: 40 mA (without load)
- Supply voltage: 4.5 to 32 V
- Connection type: Male M12, 12-pin radial connector
- Shaft diameter: 10 mm front clamp
- Start-up torque: 1 Ncm at +20°C
- Operating torque: 0.5 Ncm at +20°C
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.05 mm radial, ±0.01 mm axial
- Operating speed: ≤6,000 min⁻¹
- Moment of inertia of rotor: 40 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Enclosure rating: IP67 (housing and shaft side)
- Operating temperature range: -40°C to +100°C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 10 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.5 kg
Key Features
- High resolution with 65,536 pulses per revolution
- 6-channel incremental communication interface (TTL/HTL)
- Robust stainless steel V2A housing, flange, and shaft
- Blind hollow shaft design with 10 mm diameter front clamp
- IP67 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protection
- Operating temperature range from -40°C to +100°C
- Low start-up torque of 1 Ncm and operating torque of 0.5 Ncm
- High mechanical durability with bearing lifetime of 3.6 x 10^10 revolutions
- Fast initialization time of 30-32 ms
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and alignment.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor and material handling systems
- Machine tool feedback and control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel construction extends product lifespan, reducing waste
- Low power consumption of ≤0.7 W minimizes energy usage
- High reliability reduces maintenance and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60I-BDMC65536 Incremental Encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
