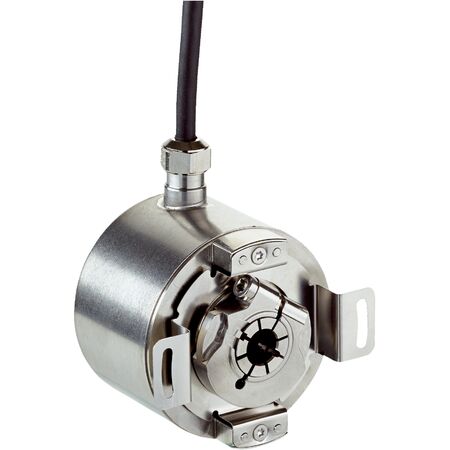

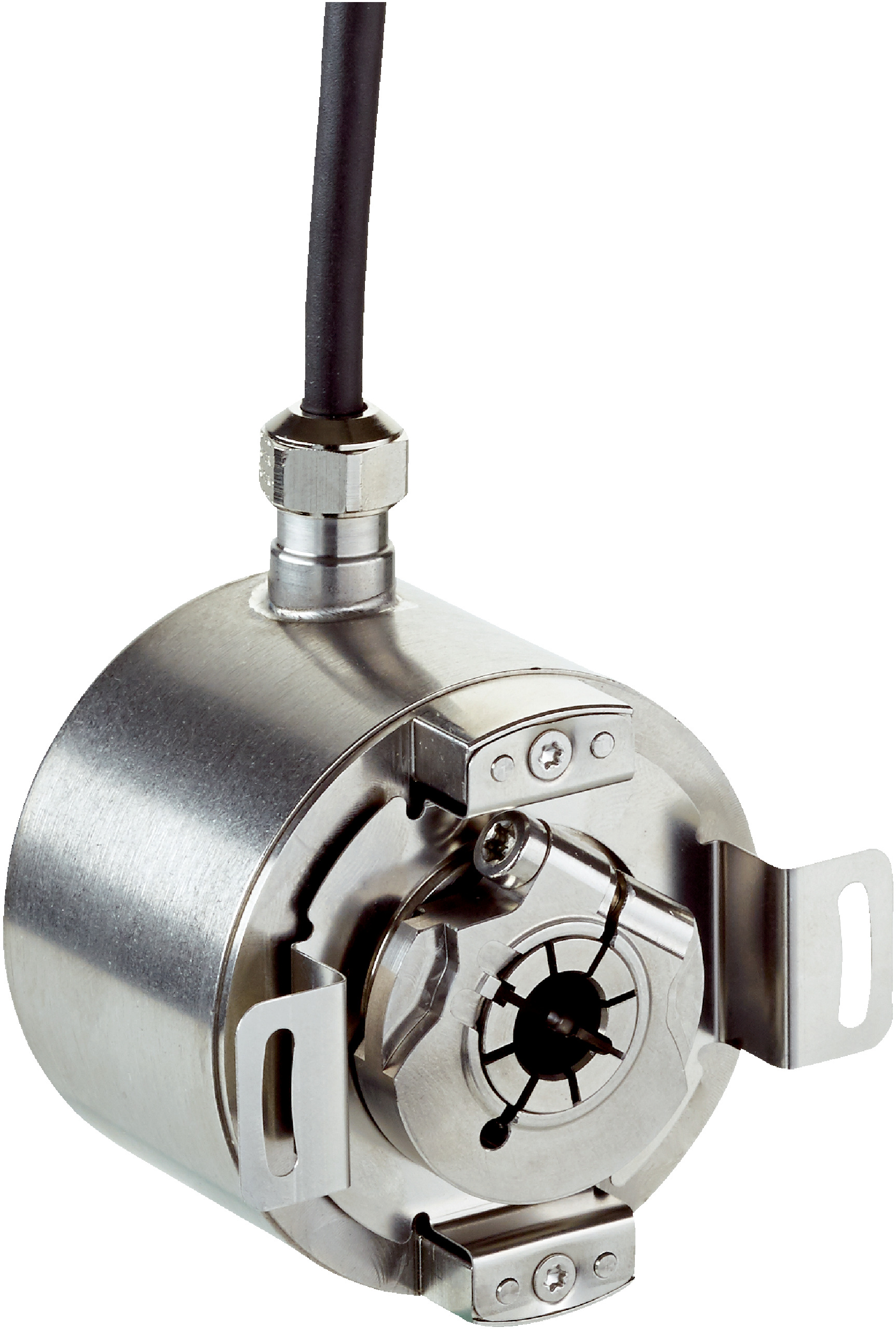

Incremental Encoder DFS60I-BDPN65536 | 65,536 Pulses/Rev | IP67 Rated | by SICK
The Incremental Encoder DFS60I-BDPN65536 offers high precision with 65,536 pulses per revolution, making it ideal for industrial automation and control systems. Designed for robust performance, it features an IP67 rated enclosure for dust and water protection, ensuring reliability in harsh environments. With a wide operating temperature range from -40°C to +100°C, this encoder is perfect for robotics, motion control, and precision measurement applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS60I-BDPN65536 | 65,536 Pulses/Rev | IP67 Rated | by SICK
Brand: SICK
SKU: 1131732
Alternatively Known As: Incremental rotary encoder, high-resolution encoder, industrial encoder, rotary position sensor
Technical Specifications
- Pulses per revolution: 65,536
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±0.0015°
- Error limits: ±0.03°
- Communication interface: Incremental TTL/HTL, 6-channel
- Output frequency: ≤820 kHz
- Load current: ≤30 mA
- Operating current: 40 mA (without load)
- Power consumption: ≤0.7 W (without load)
- Load resistance: ≥120 Ω
- Connection type: 8-wire cable, radial, 10 m
- Supply voltage: 4.5 to 32 V
- Reference signal: 1, 90° electric, logically gated with A and B
- Reverse polarity and short-circuit protection included
- Mechanical design: Blind hollow shaft, 10 mm diameter front clamp
- Start-up torque: 1 Ncm (+20 °C)
- Operating torque: 0.5 Ncm (+20 °C)
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.05 mm radial, ±0.01 mm axial
- Operating speed: ≤6,000 min⁻¹
- Moment of inertia of rotor: 40 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤500,000 rad/s²
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 (housing and shaft side)
- Operating temperature range: -40 °C to +100 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 10 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 90mm x 58mm
- Weight: 0.5 kg
Key Features
- High resolution with 65,536 pulses per revolution
- 6-channel incremental communication interface (TTL/HTL)
- Programmable and configurable output settings
- Robust stainless steel V2A housing, shaft, and flange
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40°C to +100°C
- Reverse polarity and short-circuit protection
- Low start-up and operating torque for minimal mechanical load
- High bearing lifetime of 3.6 x 10^10 revolutions
- Fast initialization time of 30-32 ms
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration for optimal performance and safety.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision measurement and positioning
- Machine tool feedback
- Conveyor and material handling systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel construction extends product lifespan, reducing waste
- Low power consumption of ≤0.7 W minimizes energy use
- High reliability reduces maintenance and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60I-BDPN65536 Incremental Encoder is available for immediate purchase, ideal for high-precision industrial automation and control applications.
