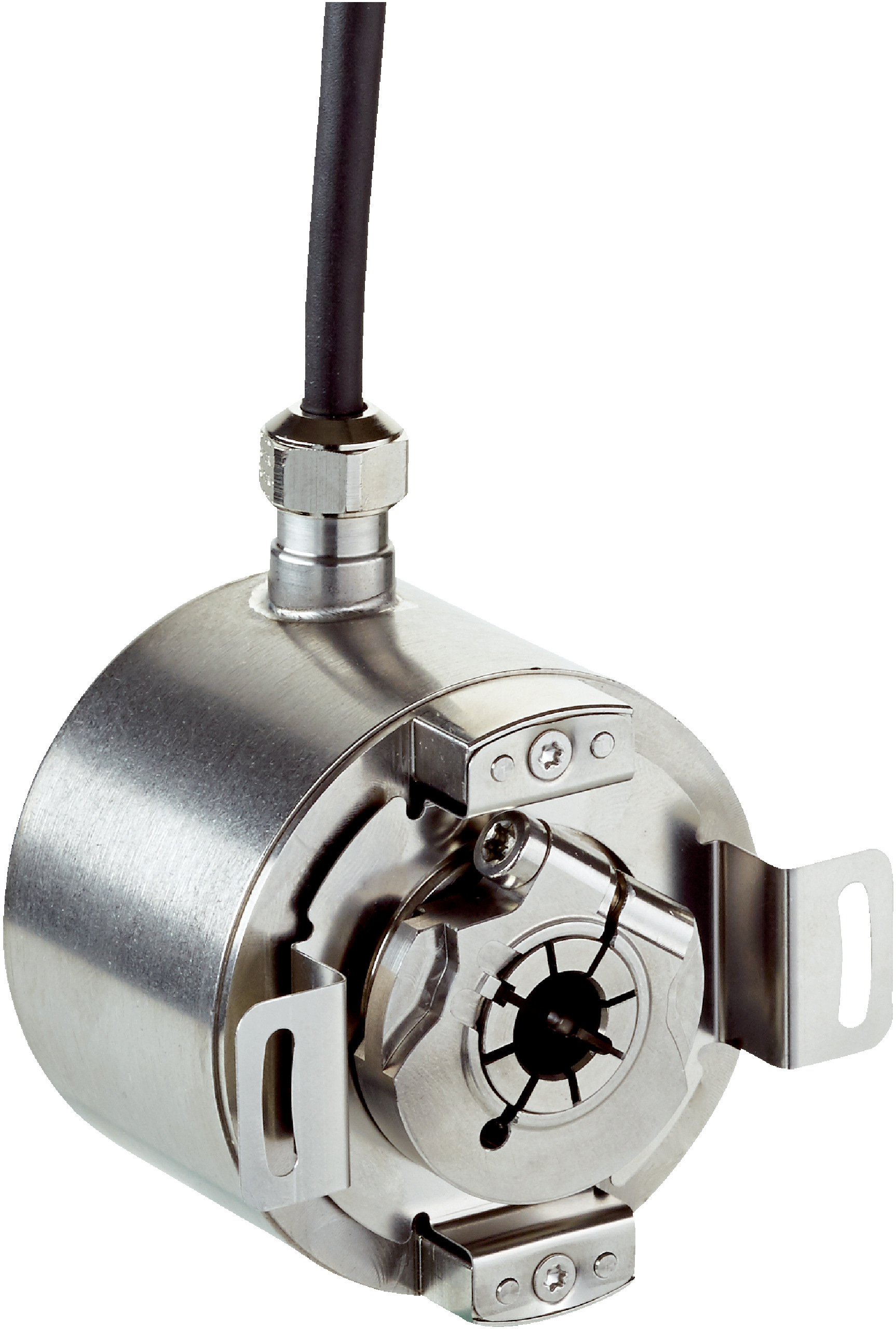

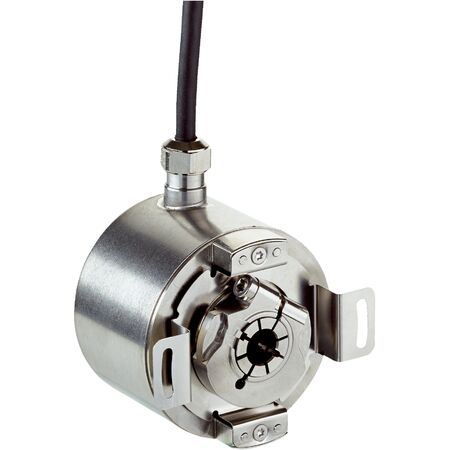

Incremental Encoder DFS60I-BECK02048 | 2048 Pulses/Rev | IP67 Rated | Stainless Steel Housing | by SICK
The Incremental Encoder DFS60I-BECK02048 offers high precision with 2048 pulses per revolution, making it ideal for industrial automation and robotics. Built with a robust stainless steel housing and an IP67 rating, it withstands harsh environments while providing reliable performance. With a fast initialization time of 40 ms and a communication interface supporting 6 channels, this encoder is perfect for motion control systems and conveyor applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS60I-BECK02048 | 2048 Pulses/Rev | IP67 Rated | Stainless Steel Housing | by SICK
Brand: SICK
SKU: 1152611
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder, SICK DFS60 encoder
Technical Specifications
- Pulses per revolution: 2048
- Measuring step: 90° electric / pulses per revolution
- Measuring step deviation: ±0.008°
- Error limits: ±0.03°
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: ≤ 820 kHz
- Load current: ≤ 30 mA
- Operating current: 40 mA (without load)
- Power consumption: ≤ 0.5 W (without load)
- Load resistance: ≥ 120 Ω
- Connection type: Cable, 8-wire, radial, 1.5 m
- Supply voltage: 10 to 32 V
- Reference signal: 1, positioned at 90° electric, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Blind hollow shaft
- Shaft diameter: 12 mm front clamp
- Shaft, flange, and housing material: Stainless steel V2A
- Start-up torque: 1 Ncm at +20°C
- Operating torque: 0.5 Ncm at +20°C
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.05 mm radial, ±0.01 mm axial
- Operating speed: ≤ 6000 min⁻¹
- Moment of inertia of rotor: 40 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP67 (housing and shaft side)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -40°C to +100°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 10 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 58mm x 30mm x 58mm
- Weight: 0.5 kg
Key Features
- High resolution with 2048 pulses per revolution
- Robust stainless steel V2A housing, shaft, and flange
- Blind hollow shaft design with 12 mm front clamp shaft diameter
- IP67 rated enclosure for protection against dust and water
- Operating temperature range from -40°C to +100°C
- Short-circuit and reverse polarity protection
- Low start-up torque of 1 Ncm and operating torque of 0.5 Ncm
- High mechanical durability with bearing lifetime of 3.6 x 10^10 revolutions
- 6-channel incremental TTL/RS-422 communication interface
- Fast initialization time of 40 ms and output frequency up to 820 kHz
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and mechanical mounting for optimal performance and safety.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor systems and packaging machinery
- Machine tool feedback and control
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel construction extends product lifespan, reducing waste
- Low power consumption of ≤ 0.5 W minimizes energy use
- High reliability reduces maintenance and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60I-BECK02048 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
