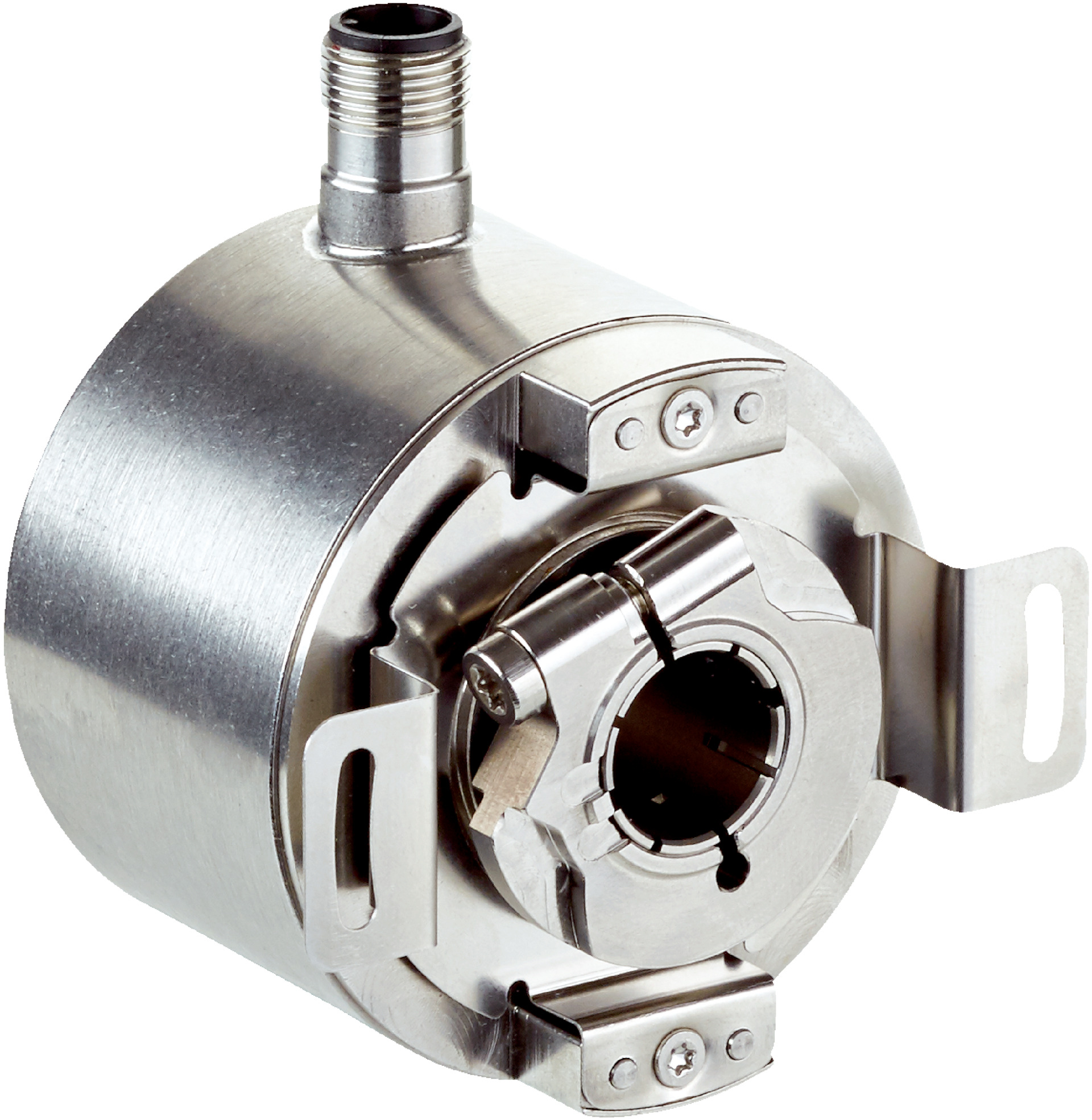

Incremental Encoder DFS60I-BHCC01024 | 1024 Pulses/Rev | IP67 Rated | Stainless Steel Housing | by SICK
The Incremental Encoder DFS60I-BHCC01024 features 1024 pulses per revolution and a robust stainless steel housing, making it ideal for industrial automation and precision motion control. With an IP67 rating for dust and water protection, this encoder ensures high accuracy and reliability in demanding environments, perfect for robotics, conveyor systems, and machine tool feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS60I-BHCC01024 | 1024 Pulses/Rev | IP67 Rated | Stainless Steel Housing | by SICK
Brand: SICK
SKU: 1099311
Alternatively Known As: Incremental rotary encoder, rotary encoder 1024 PPR, industrial encoder, shaft encoder, position encoder
Technical Specifications
- Pulses per revolution: 1024
- Measuring step: 90°, electric/pulses per revolution
- Measuring step deviation: ±0.008°
- Error limits: ±0.03°
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: ≤ 820 kHz
- Load current: ≤ 30 mA
- Operating current: 40 mA (without load)
- Power consumption: ≤ 0.5 W (without load)
- Load resistance: ≥ 120 Ω
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 10 to 32 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Blind hollow shaft
- Shaft diameter: 15 mm front clamp
- Shaft, flange, housing material: Stainless steel V2A
- Start up torque: 1 Ncm (+20 °C)
- Operating torque: 0.5 Ncm (+20 °C)
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.05 mm radial, ±0.01 mm axial
- Operating speed: ≤ 6000 min⁻¹
- Moment of inertia of rotor: 40 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP67 (housing and shaft side)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -40 °C to +100 °C
- Storage temperature range: -40 °C to +100 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 10 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.5 kg
Key Features
- Incremental encoder with 1024 pulses per revolution
- TTL / RS-422 communication interface with 6 signal channels
- Robust stainless steel V2A housing, flange, and shaft
- Blind hollow shaft design with 15 mm diameter front clamp
- High accuracy with measuring step deviation ±0.008° and error limits ±0.03°
- Operating speed up to 6000 min⁻¹
- IP67 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protection
- Low power consumption ≤ 0.5 W without load
- Wide operating temperature range from -40 °C to +100 °C
- High resistance to shocks (100 g, 6 ms) and vibration (10 g, 10 Hz to 2000 Hz)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor and material handling systems
- Machine tool feedback and control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product lifespan reducing waste
- Low power consumption minimizes energy usage
- High resistance to environmental factors reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60I-BHCC01024 Incremental Encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
