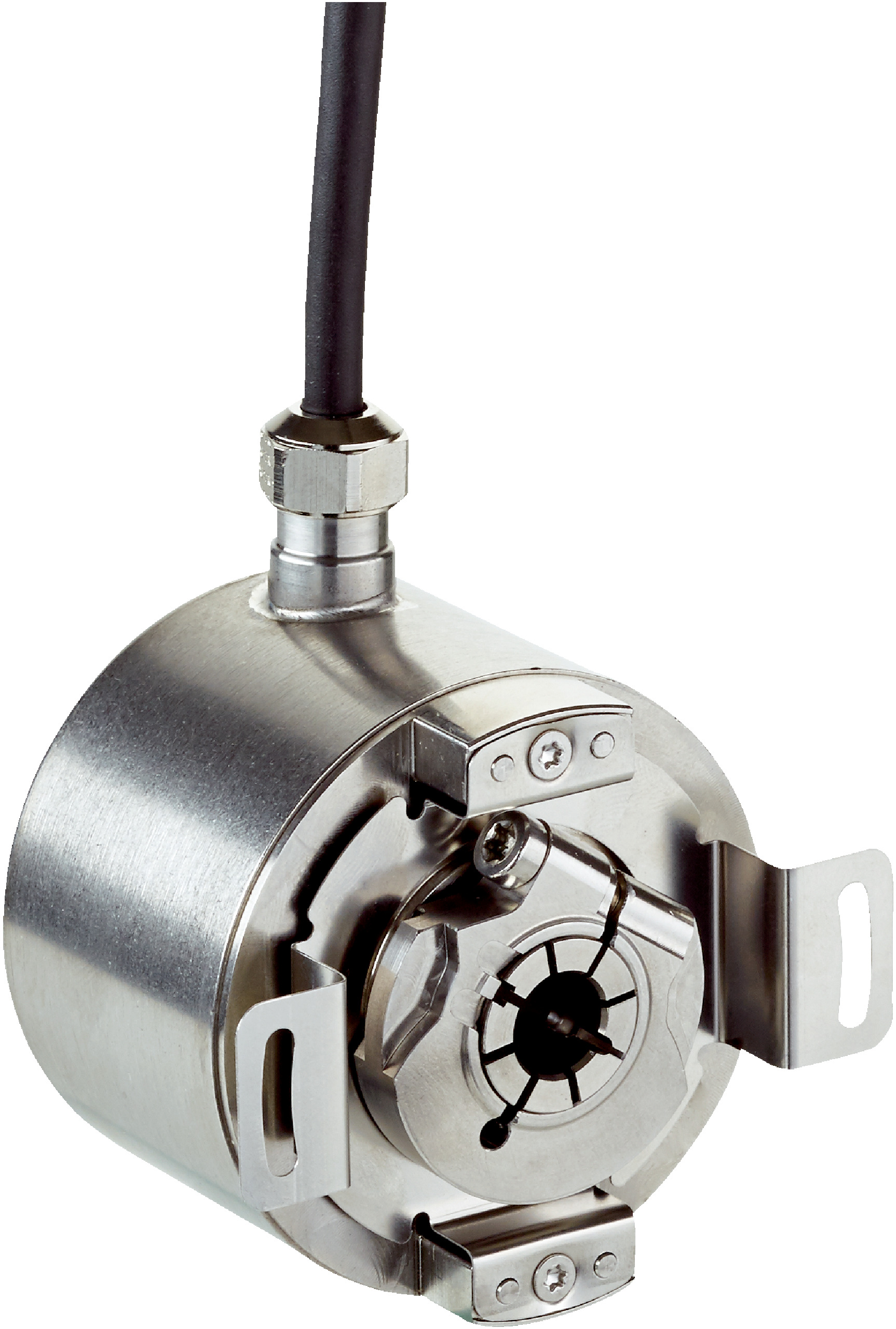

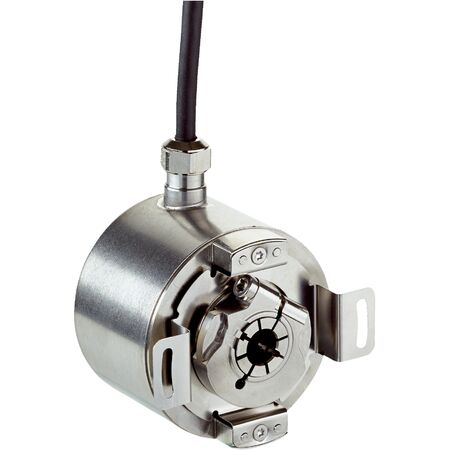

Incremental Encoder DFS60I-BHEL01024 | 1024 Pulses/Rev | High Precision ±0.0015° | IP67 Rated | by SICK
The Incremental Encoder DFS60I-BHEL01024 features 1024 pulses per revolution and a high precision measuring step deviation of ±0.0015°. Designed for industrial automation and control systems, this robust encoder is built with a stainless steel V2A housing and is IP67 rated for dust and water protection, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS60I-BHEL01024 | 1024 Pulses/Rev | High Precision ±0.0015° | IP67 Rated | by SICK
Brand: SICK
SKU: 1137246
Alternatively Known As: Incremental rotary encoder, rotary encoder 1024 PPR, industrial encoder, shaft encoder, position encoder
Technical Specifications
- Pulses per revolution: 1024
- Measuring step: 90°, electric/pulses per revolution
- Measuring step deviation: ±0.0015°
- Error limits: ±0.03°
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: ≤ 820 kHz
- Load current: ≤ 30 mA
- Operating current: 40 mA (without load)
- Power consumption: ≤ 0.5 W (without load)
- Load resistance: ≥ 120 Ω
- Connection type: Cable, 8-wire, radial, 3 m
- Supply voltage: 10 to 32 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Mechanical design: Blind hollow shaft
- Shaft diameter: 15 mm front clamp
- Shaft, flange, and housing material: Stainless steel V2A
- Start up torque: 1 Ncm (+20 °C)
- Operating torque: 0.5 Ncm (+20 °C)
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.05 mm radial, ±0.01 mm axial
- Operating speed: ≤ 6000 min⁻¹
- Moment of inertia of rotor: 40 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP67 (housing and shaft side)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -40 °C to +100 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 10 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.5 kg
Key Features
- Incremental encoder with 1024 pulses per revolution
- High precision measuring step deviation ±0.0015°
- 6-channel HTL / Push pull communication interface
- Robust stainless steel V2A housing, shaft, and flange
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40°C to +100°C
- Reverse polarity and short-circuit protection
- Low power consumption ≤ 0.5 W without load
- High mechanical durability with bearing lifetime of 3.6 x 10^10 revolutions
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor systems and material handling
- Machine tool positioning and feedback
- Safety-related monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel construction extends product lifespan reducing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60I-BHEL01024 Incremental Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
