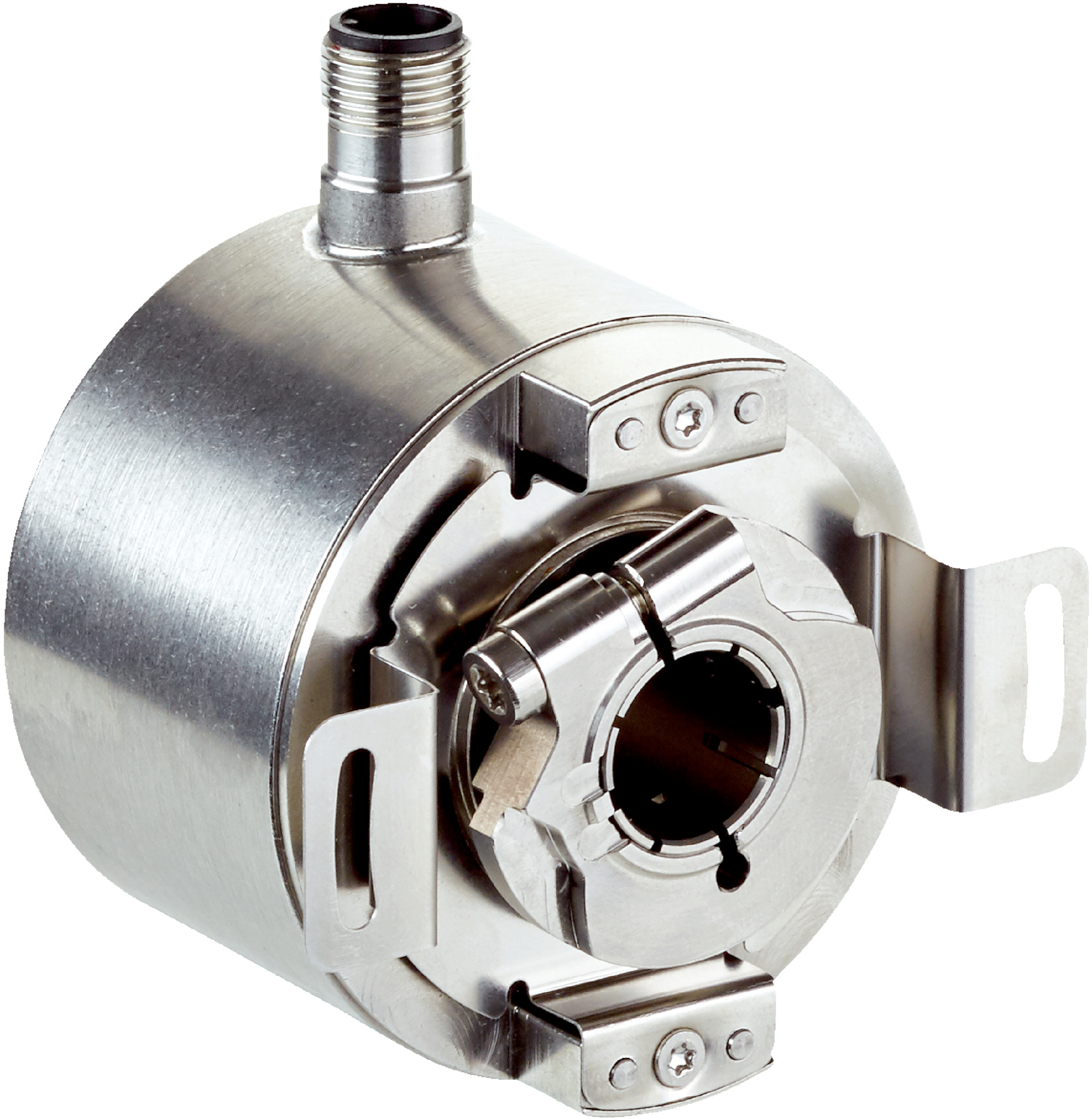

Incremental Encoder DFS60I-BHMC65536 | 65,536 Pulses/Rev | IP67 Rated | Stainless Steel Housing | by SICK
The Incremental Encoder DFS60I-BHMC65536 offers high precision with 65,536 pulses per revolution, making it ideal for industrial automation and motion control applications. Built with a robust stainless steel housing and an IP67 rating, this encoder ensures durability and reliability in harsh environments, providing accurate feedback for robotics and machine tools.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS60I-BHMC65536 | 65,536 Pulses/Rev | IP67 Rated | Stainless Steel Housing | by SICK
Brand: SICK
SKU: 1098278
Alternatively Known As: Incremental rotary encoder, high-resolution encoder, DFS60 encoder, SICK rotary encoder, industrial encoder
Technical Specifications
- Pulses per revolution: 65,536
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±0.0015°
- Error limits: ±0.03°
- Communication interface: Incremental TTL/HTL
- Number of signal channels: 6
- Output frequency: ≤820 kHz
- Load current: ≤30 mA
- Operating current: 40 mA (without load)
- Power consumption: ≤0.7 W (without load)
- Load resistance: ≥120 Ω
- Connection type: Male M12, 12-pin radial connector
- Supply voltage: 4.5 to 32 V
- Reference signal: 1, 90° electric, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Blind hollow shaft
- Shaft diameter: 15 mm front clamp
- Shaft, flange, housing material: Stainless steel V2A
- Start-up torque: 1 Ncm at +20°C
- Operating torque: 0.5 Ncm at +20°C
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.05 mm radial, ±0.01 mm axial
- Operating speed: ≤6,000 min⁻¹
- Moment of inertia of rotor: 40 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 (housing and shaft side)
- Operating temperature range: -40°C to +100°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 10 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 100mm x 58mm
- Weight: 0.5 kg
Key Features
- High resolution with 65,536 pulses per revolution
- 6-channel incremental TTL/HTL output interface
- Robust stainless steel V2A housing, flange, and shaft
- Blind hollow shaft design with 15 mm diameter
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40°C to +100°C
- Reverse polarity and short-circuit protection
- Low start-up torque of 1 Ncm and operating torque of 0.5 Ncm
- High mechanical reliability with bearing lifetime of 3.6 x 10^10 revolutions
- Fast initialization time of 30-32 ms
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and alignment.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision measurement and positioning
- Machine tool feedback
- Conveyor and material handling systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product lifespan reducing waste
- Low power consumption of ≤0.7 W reduces energy usage
- High reliability minimizes downtime and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60I-BHMC65536 Incremental Encoder is available for immediate purchase, ideal for high-precision industrial automation and motion control applications.
